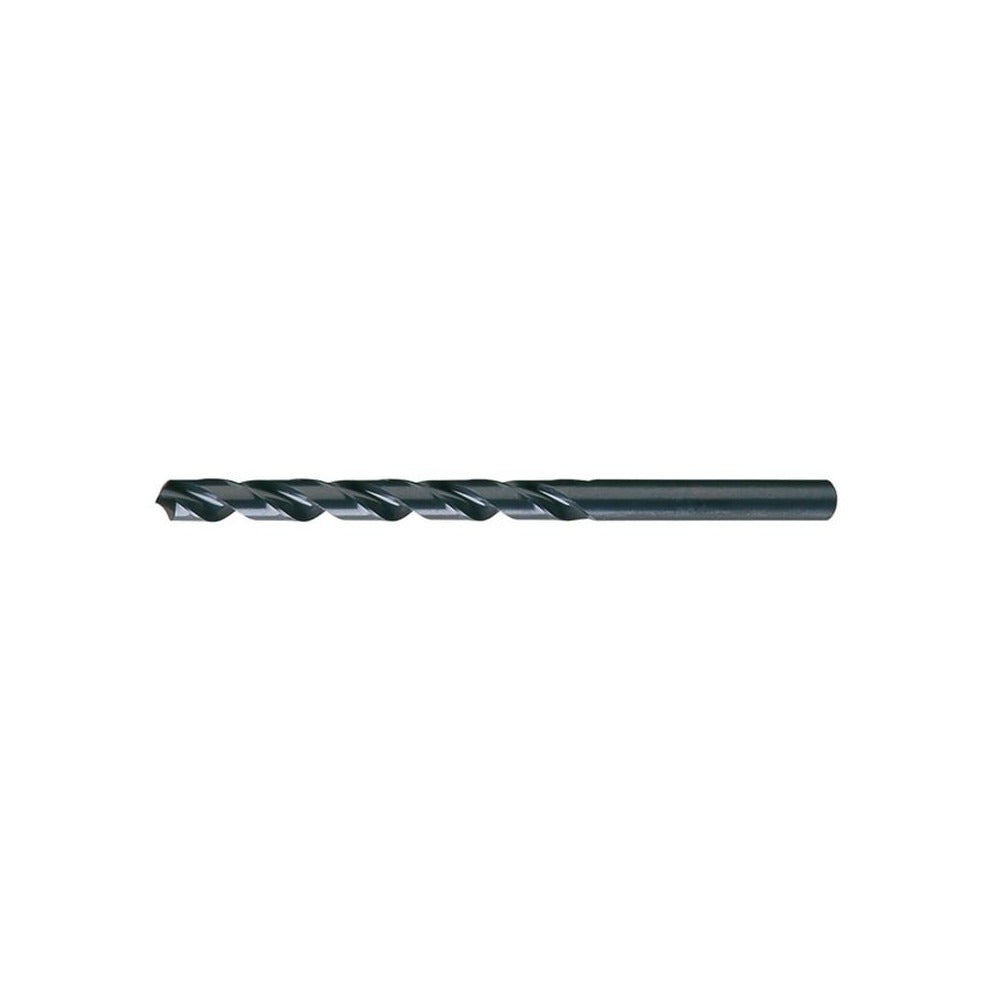

Cleveland C08655 Taper Length Drill Bit 7/64 in Hss

Product Description

The CLEVELAND C08655 is a taper length twist drill bit designed for general-purpose hole-making in ferrous and non-ferrous materials. Built from high-speed steel with a coated finish, the bit features a 118-degree standard point angle and a web-thinned, tapered web configuration that reduces thrust and improves chip evacuation. The spiral flute geometry promotes consistent cutting action across a range of materials. With a 7/64-inch diameter, 2.5-inch flute length, and 4.625-inch overall length, the C08655 is suited for applications where a longer reach than a jobber-length bit is required. Right-hand cutting direction is standard.

This drill bit is intended for use in metal fabrication, maintenance, and repair applications involving alloy steel, carbon steel, and cast iron. The taper length body provides added reach for drilling deeper holes without requiring extension tooling. It is a practical choice for machinists, pipefitters, ironworkers, and general trade professionals who need reliable performance from a standard straight-shank bit in a bench-mounted drill press or hand-held power drill.

Key Features

• High-speed steel construction with coated finish for improved wear resistance
• 118-degree standard point angle for general-purpose drilling in steel and cast iron
• Web-thinned, tapered web reduces cutting thrust and improves chip clearance
• Taper length body at 4.625 inches OAL provides extended reach versus jobber-length bits
• Spiral flute with right-hand cutting direction for use in standard drill chucks
• Straight shank compatible with standard 3-jaw drill chucks
• Meets ASME B94.11M and DIN 340 standards

Compatibility

Designed as a general-purpose taper length drill bit compatible with any standard drill chuck accepting a straight shank. Rated for use in alloy steel, carbon steel, and cast iron per manufacturer material application data.

Installation Notes

Installation is performed by machinists or trade professionals using a drill press, mill, or hand-held power drill with a standard 3-jaw chuck. Ensure the workpiece is securely clamped before drilling. Use appropriate cutting fluid when drilling hardened or abrasive steels to extend tool life. Inspect the cutting edges for wear before each use and replace the bit if chipping or dulling is observed.
