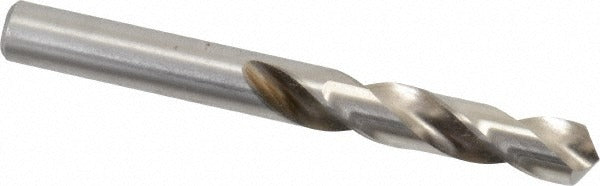

Cleveland C04547 Drill Bit Letter P 0.3230 in Hss 118 Pt

Product Description

The CLEVELAND C04547 is a screw machine length (stub length) drill bit sized to Letter P, equal to 0.3230 inches in diameter, manufactured from high-speed steel with a bright, uncoated finish. The 118-degree standard point angle suits general-purpose drilling in a wide range of materials. At 2-15/16 inches overall length with a 1-11/16-inch flute length, this short-series bit delivers added rigidity compared to jobber-length bits, reducing deflection in drill press and CNC applications. The straight-cylindrical shank measures 0.3230 inches in diameter with a 1-1/4-inch shank length. Web thinning on the parallel web reduces thrust and improves chip evacuation. Two spiral flutes with a regular helix provide reliable cutting action. The bit conforms to ASME B94.11M and ANSI standards.

The C04547 is suited for production machining, general fabrication, and maintenance applications where a rigid, short-length drill is preferred. Primary workpiece materials include alloy steels and aluminum. The screw machine length format makes it well matched to drill presses, turret lathes, milling machines, and hand-held drill applications where depth is limited. This bit is a general-purpose option appropriate for job-shop environments and field maintenance alike. Coolant-through capability is not included on this model.

Key Features

• Letter P sizing at 0.3230 inches diameter with a tolerance of +0.0000 to -0.0010 inches
• High-speed steel construction with bright, uncoated finish for general-purpose service
• 118-degree standard point angle for broad material compatibility
• Screw machine (short) length at 2-15/16 inches OAL for increased rigidity and reduced deflection
• Web-thinned parallel web reduces drilling thrust and improves chip clearing
• Conforms to ASME B94.11M and ANSI standards, Series 2120

Compatibility

Designed as a general-purpose screw machine length drill bit compatible with any standard straight-shank drill chuck accepting a 0.3230-inch shank diameter, including drill presses, lathes, milling machines, and hand-held drills.

Installation Notes

Secure the straight-cylindrical shank fully in a properly sized drill chuck before operation. Ensure the drill press or machine is powered off and at a complete stop before changing bits. Follow applicable machine guarding and PPE requirements per shop safety standards. Inspect the cutting edges for wear or chipping before each use and replace if the bit shows signs of dulling to maintain dimensional accuracy.
