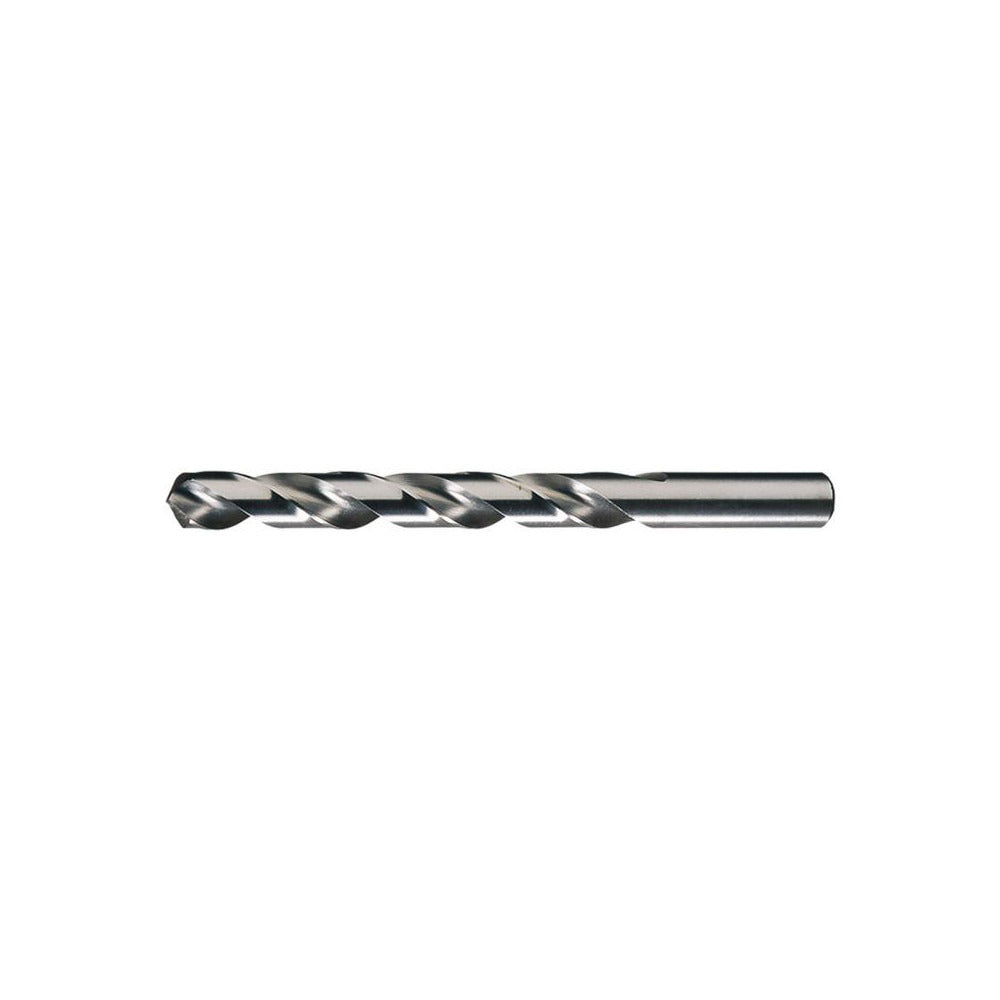

Cleveland C01830 Jobber Drill Bit Wire 65 0.035 in Hss

Product Description

The CLEVELAND C01830 is a wire gauge size 65 jobber-length drill bit designed for general-purpose drilling in metal and non-ferrous materials. It is manufactured from high speed steel with an oxide finish that provides basic lubricity and corrosion resistance during cutting operations. The bit features a 118-degree standard point angle, a right-hand spiral flute, and a straight cylindrical shank measuring 0.035 inches in diameter. Overall length is 1.5 inches with a flute length of 0.625 inches. The web-thinned, tapered web construction reduces thrust at entry and improves chip clearance. This bit is handled by machinists, maintenance technicians, and tool room personnel working with small-diameter precision holes.

The C01830 is suited for drilling aluminum and other non-ferrous workpiece materials in light production and maintenance applications. Its compact 1.5-inch overall length makes it appropriate for close-quarters setups where a standard jobber bit of larger gauge would be impractical. The regular spiral and two-flute design support consistent chip evacuation in through-hole drilling operations. This bit is sold individually and is intended for use in drill presses, CNC machining centers, and hand-held power drills with compatible chucks capable of holding a 0.035-inch straight shank.

Key Features

• Wire size 65 with a decimal diameter of 0.035 inches for small-hole precision work
• High speed steel construction with oxide coating for basic lubricity and wear resistance
• 118-degree standard point angle with web-thinned, tapered web for reduced entry thrust
• Right-hand cut, two-flute regular spiral for efficient chip evacuation
• Straight cylindrical shank at 0.035 inches for broad chuck compatibility
• Meets ASME B94.11M and DIN 338 standards

Compatibility

Designed as a general-purpose replacement or service drill bit for applications requiring a wire gauge size 65 straight-shank jobber-length bit. Compatible with any drill chuck or collet rated to accept a 0.035-inch straight cylindrical shank.

Installation Notes

This bit is installed and used by machinists and maintenance technicians in machine shop and field settings. Secure the shank fully in the chuck before operation and verify runout before beginning a production run. Use appropriate cutting fluid or lubrication when drilling ferrous materials to extend tool life. Inspect the cutting edges before each use and discard bits showing chipping or excessive wear to avoid workpiece damage or bit breakage at this small diameter.
