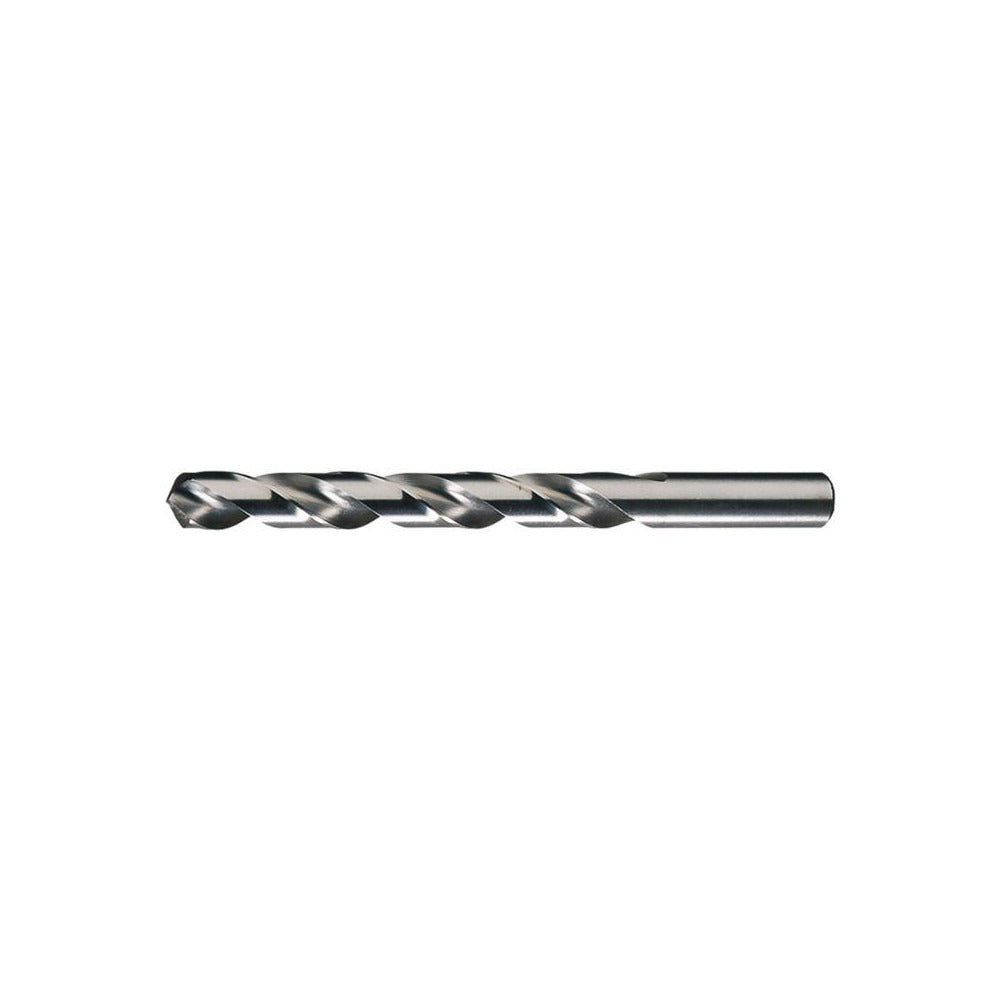

Cleveland C01827 Jobber Length Drill Bit Wire 67 Hss

Product Description

The CLEVELAND C01827 is a jobber-length drill bit in wire gauge size 67, measuring 0.0320 inches in diameter. It is manufactured from high speed steel with an oxide coating that provides basic surface protection and lubricity during drilling operations. The bit features a standard 118-degree point angle, a two-flute spiral configuration, and a web-thinned, tapered web design that reduces thrust and improves chip evacuation. Overall length is 1-3/8 inches with a 1/2-inch flute length and a straight-cylindrical shank. This is a general-purpose tool installed and used by machinists, maintenance technicians, and fabricators working with small-diameter holes.

The C01827 is designed for general-purpose drilling in aluminum and similarly machinable materials where a small-diameter, right-hand-cut jobber bit is required. Its compact overall length and standard jobber proportions make it well suited for bench drill presses, hand drills, and CNC drilling operations requiring wire gauge tooling. The oxide finish helps reduce built-up edge when cutting non-ferrous metals. This bit is sold individually with a minimum order quantity of 10 units per order.

Key Features

• Wire gauge size 67 at 0.0320 inches diameter with a diameter tolerance of -0.0005 to 0.0000 inches
• 118-degree standard point angle with web-thinned, tapered web for reduced entry thrust
• High speed steel construction with oxide coating for surface protection and reduced friction
• Two-flute regular spiral design promotes chip evacuation in through-hole and blind-hole drilling
• Straight-cylindrical shank at 0.0320 inches diameter fits standard drill chucks
• Meets ASME B94.11M and DIN 338 standards

Compatibility

Designed as a general-purpose OEM-style jobber-length drill bit suitable for use in standard drill chucks and collets accepting a 0.0320-inch straight-cylindrical shank, commonly found in bench drill presses, hand drills, and CNC drilling equipment.

Installation Notes

Secure the shank fully in the chuck before operation and verify chuck runout is within acceptable limits at this diameter, as small-diameter bits are sensitive to misalignment. Power down and de-energize all equipment before changing bits. At wire gauge diameters, avoid excessive feed pressure, which can cause bit deflection or breakage. Follow applicable shop safety practices and applicable OSHA standards when operating drilling equipment.
