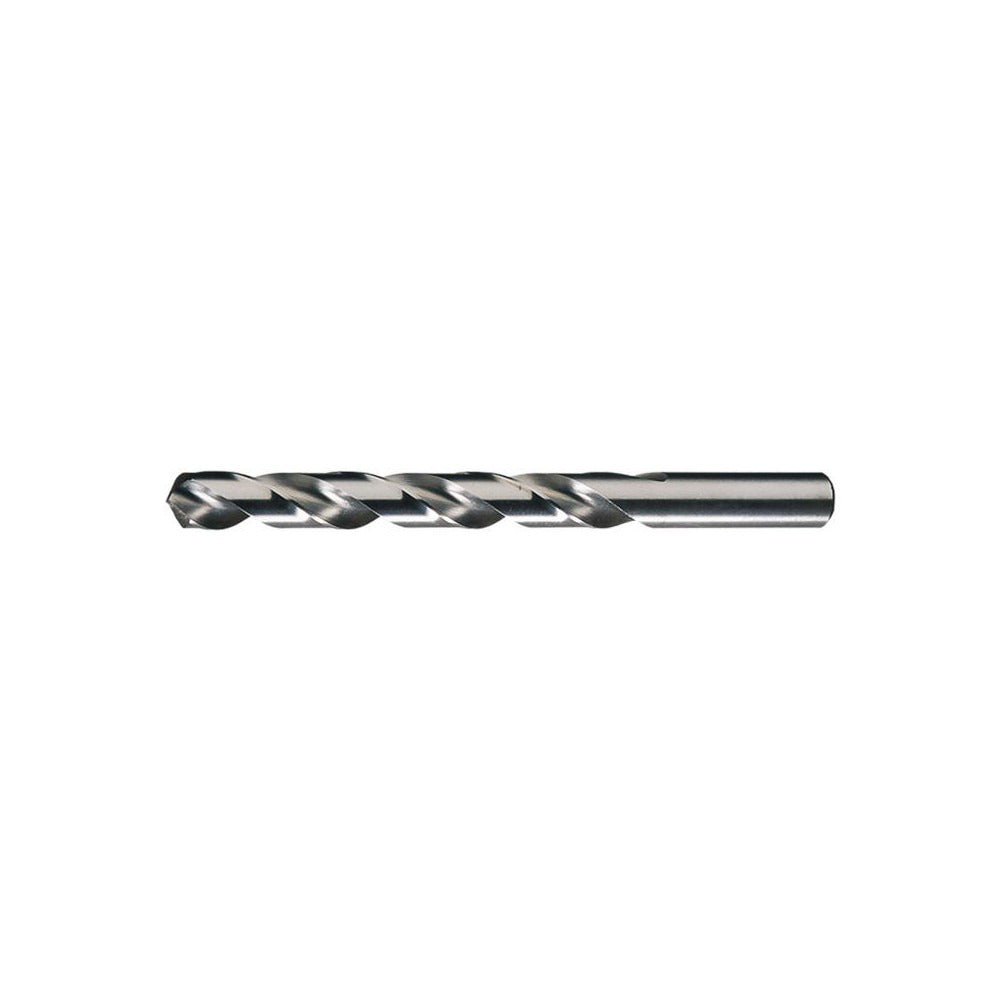

Cleveland C01814 Jobber Length Drill Bit Wire Size 74

Product Description

The CLEVELAND C01814 is a jobber-length twist drill bit sized at wire gauge 74, equivalent to 0.0225 inches in decimal. Manufactured from high speed steel with an oxide coating for added surface hardness and lubricity, this bit features a standard 118-degree split point and a regular spiral flute for efficient chip evacuation. The straight-cylindrical shank measures 0.0225 inches in diameter and seats securely in standard drill chucks. With an overall length of 1 inch and a flute length of 0.25 inches, this bit is designed for precision small-diameter drilling in metalworking, mechanical, and light fabrication applications.

The C01814 is suited for general-purpose drilling in aluminum and similar non-ferrous materials. Its compact jobber-length profile makes it appropriate for use in drill presses, CNC machines, hand drills, and tapping fixtures where fine wire-gauge holes are required. The two-flute spiral configuration clears chips efficiently in through-hole and blind-hole operations. Machinists, tool-and-die technicians, and maintenance mechanics regularly use this size range for pilot holes, precision component fabrication, and instrument work.

Key Features

• Wire gauge size 74 — 0.0225 inches decimal diameter for precise small-hole work
• High speed steel construction with oxide finish for surface hardness and reduced friction
• 118-degree standard point angle with web-thinned, tapered web configuration for easier entry
• Right-hand cut, regular spiral flute for efficient chip removal in through and blind holes
• Straight-cylindrical shank for compatibility with standard drill chucks and collets
• Meets ASME B94.11M and DIN 338 standards for jobber-length drill geometry

Compatibility

Designed as a general-purpose jobber-length drill bit for use in standard drill chucks and collets accepting a 0.0225-inch straight-cylindrical shank. Primary workpiece material is aluminum; suitable for general-purpose drilling applications within the 0.0000 to 0.0500 inch diameter range per Series 2001 specifications.

Installation Notes

Install and remove drill bits only with the machine powered off and the spindle fully stopped. Secure the shank completely within the chuck or collet and verify concentricity before operation to avoid deflection at this diameter. At wire-gauge sizes this small, use low feed pressure and appropriate spindle speeds to prevent bit breakage. Handle with care — bits in this size range are fragile and susceptible to fracture if side-loaded or dropped.
