Cleveland C01811 Jobber Length Drill Bit Wire 76

Product Description

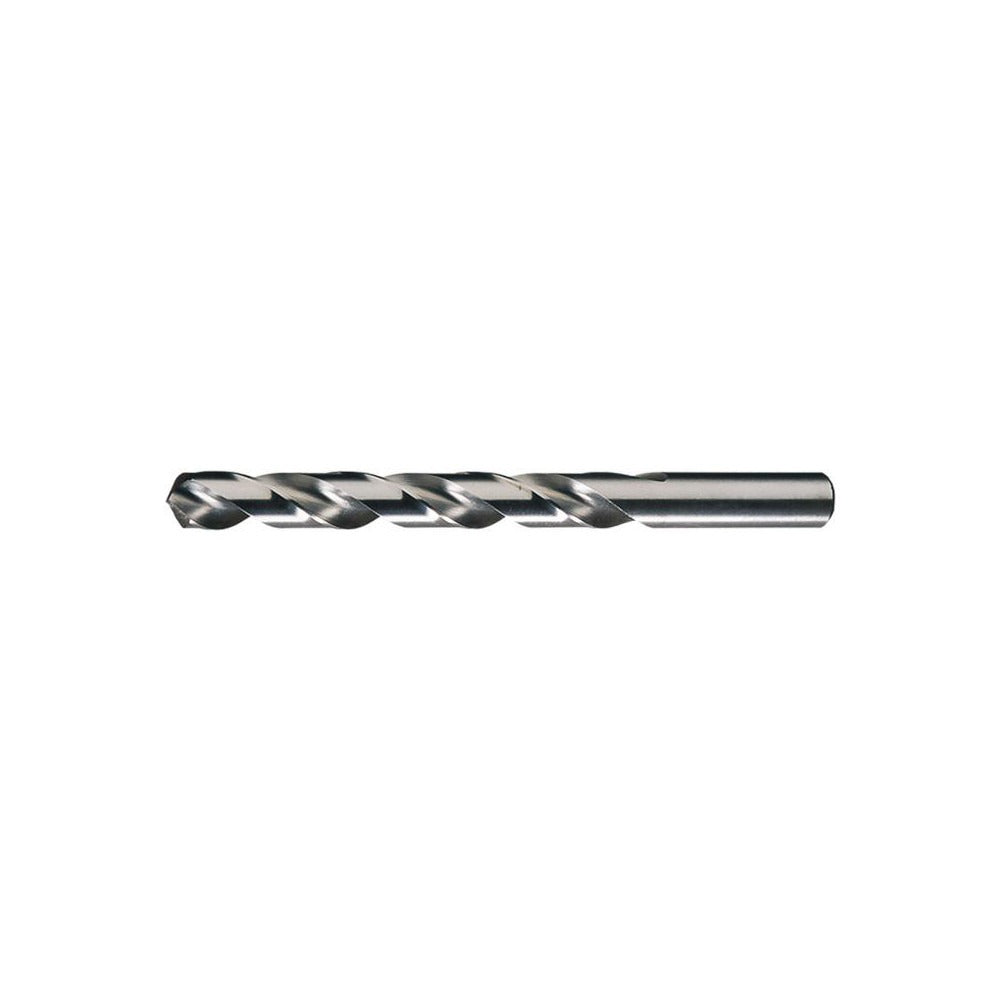

The CLEVELAND C01811 is a jobber-length twist drill bit designed for precision drilling in metal fabrication, maintenance, and light assembly applications. Manufactured from high-speed steel with a bright uncoated finish, this bit carries a wire gauge size of 76, equivalent to 0.0200 inches in decimal form. The standard 118-degree split point provides clean entry and reduces walking on flat surfaces. The 2-flute spiral design with a tapered web and web-thinned geometry improves chip evacuation and reduces thrust force during drilling. Licensed HVAC technicians, plumbers, electricians, and general trade professionals keep sizes like this on hand for pilot holes, sheet metal work, and electrical knockouts.

The C01811 is suited for drilling aluminum and other non-ferrous metals, plastics, and light-gauge ferrous materials in general-purpose shop and field applications. The straight-cylindrical shank measures 0.0200 inches in diameter, fitting standard drill chucks without adapters. The right-hand cutting direction is compatible with conventional drill press and hand-drill setups. This bit is part of Cleveland Series 2001, a general-purpose line built to ASME B94.11M and DIN 338 standards, making it appropriate for production environments and field service kits alike.

Key Features

• Wire size 76 — 0.0200 inch decimal diameter for tight-tolerance pilot and through-hole work
• 118-degree standard point angle with web-thinned geometry reduces entry thrust and walking
• High-speed steel construction with bright uncoated finish for general-purpose use
• 2-flute regular spiral with tapered web promotes efficient chip evacuation
• Straight-cylindrical shank fits standard chucks without adapters
• Meets ASME B94.11M and DIN 338 standards for consistent dimensional accuracy

Compatibility

Designed as a general-purpose jobber-length drill bit compatible with any standard drill chuck or drill press accepting a 0.0200-inch straight-cylindrical shank. Primary workpiece material recommendation from the manufacturer is aluminum, though the bit is rated for general-purpose use across non-ferrous metals and plastics.

Installation Notes

Install into a properly sized drill chuck and tighten securely before use. Power down all equipment before changing bits. Use appropriate cutting fluid when drilling aluminum or ferrous metals to extend tool life and maintain dimensional tolerance. Diameter tolerance for this bit is -0.0005 to 0.0000 inches — verify fitment with a gauge when hole precision is critical.
