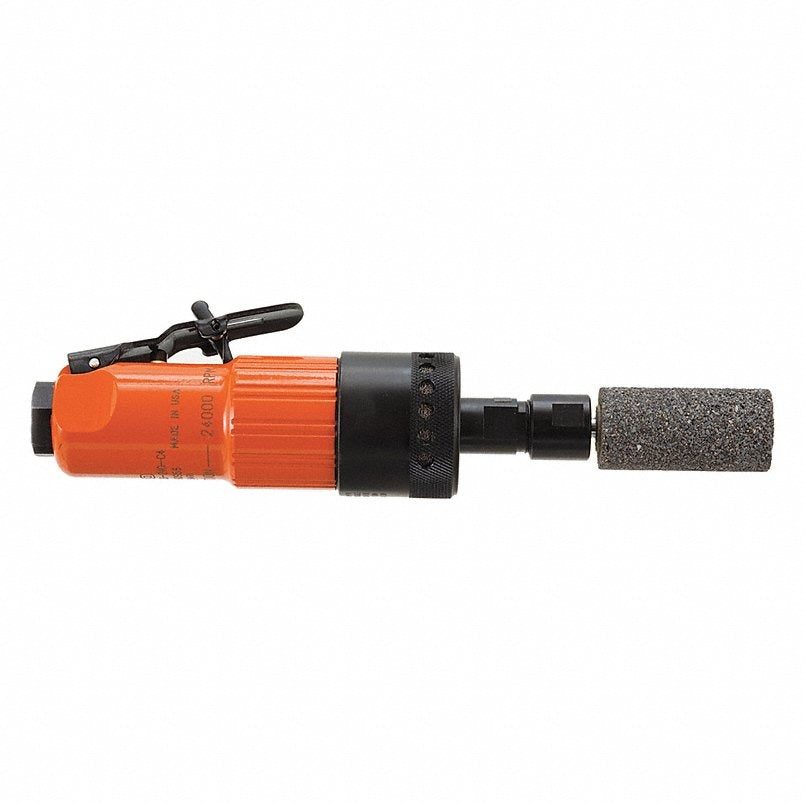

Cleco 236glf-250-c4 Straight Air Die Grinder 0.6 Hp

Product Description

The CLECO 236glf-250-c4 is a straight air-powered die grinder built for heavy-duty production environments. The tool body and grinding head share a common axis, allowing precise pressure control during detail work and giving the tool a slim enough profile to reach tight or confined work areas. Rated at 0.6 hp with a maximum speed of 25,000 RPM and a 1/4 inch collet, it accepts burrs and mounted points up to 1 inch in diameter. The housing is machined from a durable advanced alloy, and the tool is designed to be fully repairable, supporting long service life in demanding shop environments.

This die grinder is designed for frequent maintenance to heavy production use across foundry work, metal fabrication, and shipbuilding applications. The straight tool style suits grinding, deburring, porting, and surface preparation tasks where a consistent in-line grip provides better control. Its lever-style switch and front exhaust location make it practical to run continuously during extended production shifts. A collet wrench is included with the tool.

Key Features

• Straight tool style for in-line control and access to confined openings
• 25,000 RPM fixed speed for consistent material removal
• 1/4 inch collet accepts burrs and mounted points up to 1 inch diameter
• Advanced alloy housing rated for heavy-duty, high-frequency use
• Lever-style switch for easy throttle control during extended operation
• Fully repairable design supports long tool life in production settings

Compatibility

Designed for use with standard 1/4 inch shank rotary burrs, carbide bits, and mounted grinding points up to 1 inch in wheel diameter on air supply systems delivering 90 psi with a minimum 5/16 inch hose.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tools and applicable shop safety standards. Ensure the air supply is depressurized and the tool is disconnected from the air line before changing collets or accessories. Do not exceed the rated air pressure of 90 psi. Verify that the minimum hose size of 5/16 inches is used to maintain adequate air flow and prevent tool underperformance.

Technical Specifications

• Horsepower: 0.6 hp
• Max Speed: 25,000 RPM
• Air Pressure: 90 psi
• Air Consumption: 30 cfm
• Air Inlet Size: 1/4 inches Female NPT
• Minimum Hose Size: 5/16 inches
• Collet Size: 1/4 inches
• Max Burr Diameter: 1 inch
• Max Wheel Diameter: 2 inches
• Overall Length: 6-13/16 inches
• Tool Weight: 1.4 pounds
• Handle Material: Alloy
• Switch Type: Lever
• Exhaust Location: Front
• Duty Rating: Heavy Duty
• Series: 236
• Country of Origin: USA (subject to change)

Standard Information

• Brand: CLECO
• Manufacturer Part Number: 236glf-250-c4
