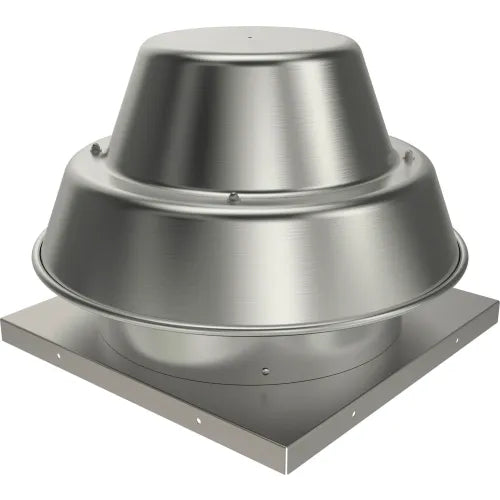

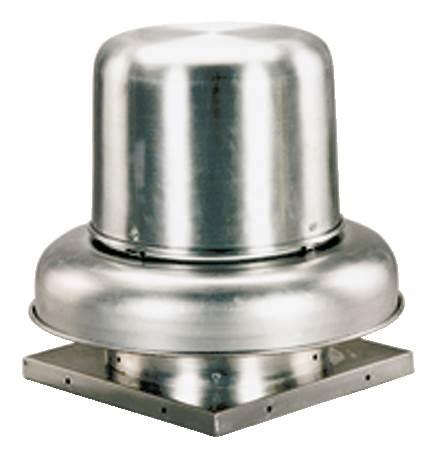

CLEAN COMFORT 5DDD12CA w/BS D/blast Roof Fan

Product Description

The CLEAN COMFORT 5DDD12CA is a direct-drive downblast ventilator designed for effective exhaust ventilation in low to moderate static pressure conditions. This unit works well for both roof or wall mounting applications. It features a backward inclined aluminum fan wheel that enhances airflow efficiency. A speed-controllable motor allows for flexible operation, and all models meet UL 705 Standard requirements. The one-piece removable exhaust hood can manage inlet temperatures reaching up to one hundred seventy degrees Fahrenheit.

• Downblast discharge design effectively removes stale air.
• Built-in bird screen protects discharge from debris.
• Externally cooled motor compartment extends the motor's lifespan.

Product Highlights

This ventilator is suitable for industrial and commercial buildings, ensuring steady air exhaust where needed.

Product Information

Standard Information

• Brand: CLEAN COMFORT
• Country of Origin: USA

Technical Specifications

• CFM: 1744
• Horsepower: 1/3 HP
• Voltage: 115V
• Phase: 1
• Fan Diameter: 12 inches
• RPM: 1694
• Operating Temperature: Up to 170 degrees Fahrenheit
• Motor Type: Open Drip Proof
