CLEAN COMFORT 5BDU16 FAN SHELL 16 ROOF VENT UPBLAST TYPE FAN

Product Description

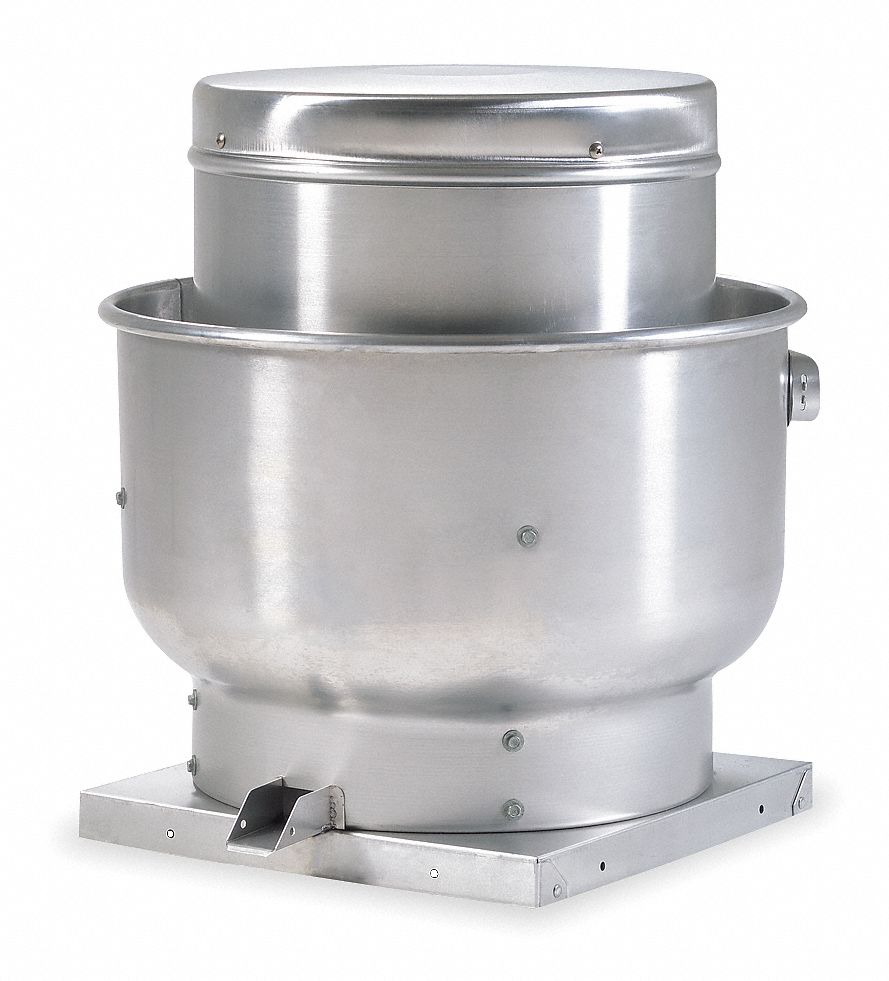

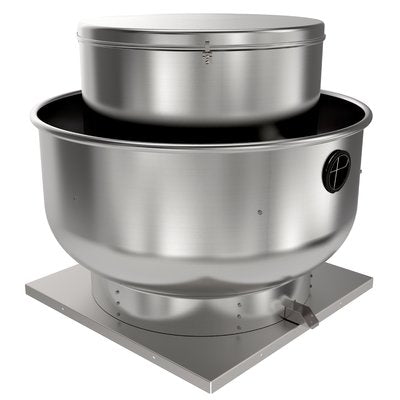

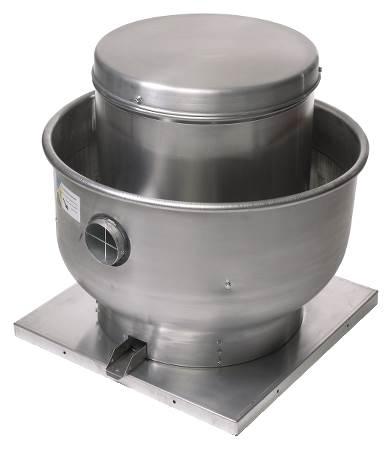

The CLEAN COMFORT 5BDU16 is a fan shell made for a sixteen inch roof vent upblast type fan. It is built from durable spun aluminum with steel support braces, ensuring sturdiness. This fan shell is suitable for roof-mounted exhaust in both commercial and industrial buildings, as well as for wall applications. The fan features a fully welded windband for added strength and a backward inclined aluminum fan wheel that enhances efficiency. The motor and fan wheel detach easily without needing to remove the ventilator from the curb, facilitating maintenance and service.

• Durable spun aluminum construction with steel support braces.
• Backward inclined aluminum fan wheel for better airflow.
• Designed for both roof and wall applications.

Product Highlights

The CLEAN COMFORT 5BDU16 provides excellent airflow and is built to last. It meets safety standards for electrical and restaurant exhaust applications.

Product Information

Standard Information

• Model Number: 5BDU16
• Type: Belt-Drive Upblast Roof Ventilator Shell

Technical Specifications

• Material: Aluminum (Body/Fan Wheel), Steel (Support Brace)
• Belt Drive Size: 16 inch
• Application: Commercial and Industrial Building
• Applicable Standards: UL 705/762, UL (Canada and US), AMCA
• Air Flow Rating: 2489 to 5023 CFM
• Base Size: 26 inches
• Temperature Rating: Up to 300 degrees F
• Frequency Rating: 60 Hz
