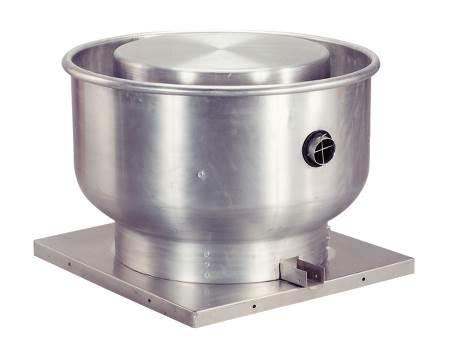

CLEAN COMFORT 5BDU12 Fantech® 5BDU12 Belt-Drive Upblast Roof Ventilator Shell

Product Description

The CLEAN COMFORT Fantech® 5BDU12 is a reliable roof ventilator shell designed for exhaust applications in commercial and industrial settings. This belt-drive unit is constructed from durable spun aluminum and reinforced with steel support braces for stability and longevity. It features a backward inclined aluminum fan wheel that improves efficiency. The motor and wheel can be easily detached for maintenance without the need to remove the entire ventilator from its curb installation.

• Suitable for roof or wall mounted exhaust systems.
• Made from spun aluminum with steel support braces for durability.
• Easily detachable motor and fan wheel for quick maintenance.

Product Highlights

This product is UL 705 listed for electrical safety and UL 762 listed specifically for restaurant exhaust applications in the USA.

Product Information

Standard Information

• Brand: CLEAN COMFORT
• MPN: 5BDU12

Technical Specifications

• Flow Rate: 1530 cfm
• Motor HP: 1/4 HP
• Base Size: 22 inches
• Dimensions: 26-1/2 inches W x 24-1/4 inches H
• Material: Aluminum
• Series: 5BDU
• Type: Belt-Drive
