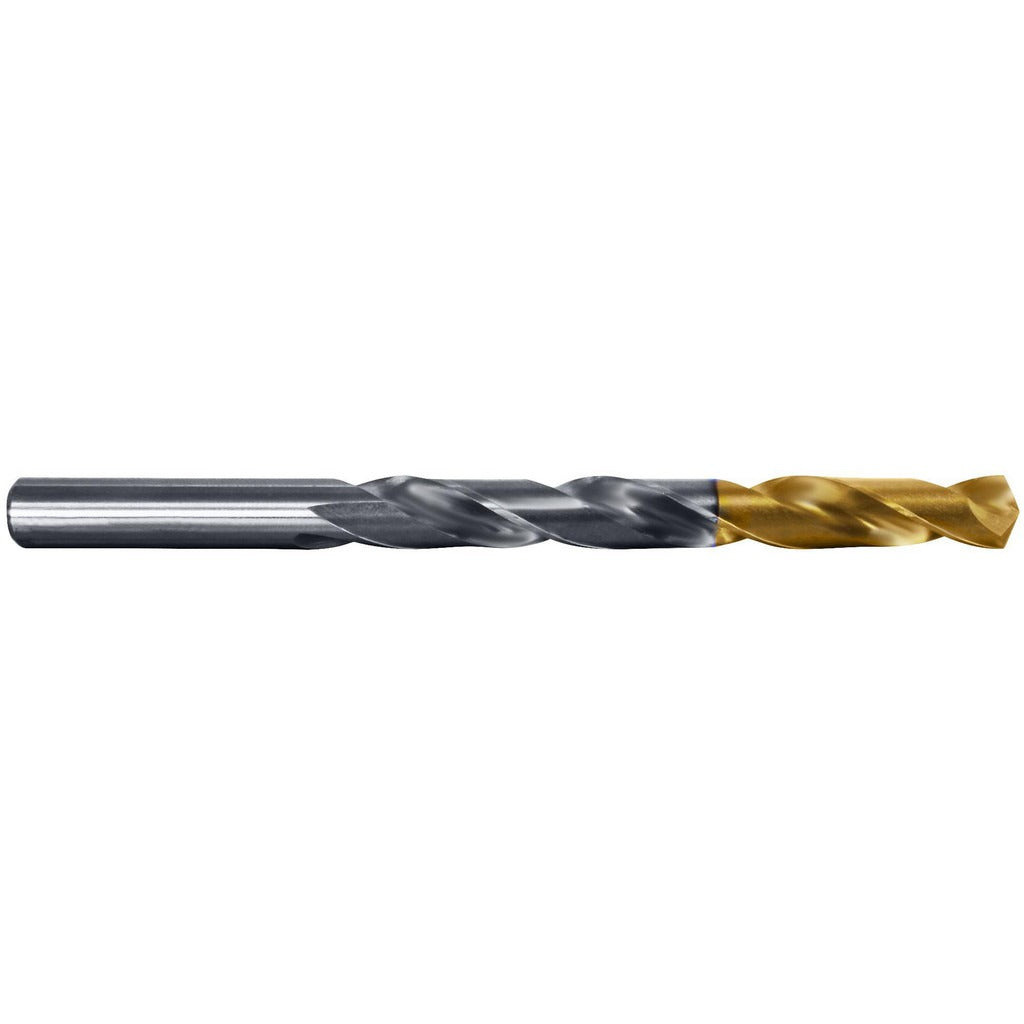

Cle-line C66009 Cobalt Jobber Drill Bit 3/16 in

Product Description

The CLE-LINE C66009 is a cobalt jobber-length drill bit designed for general-purpose drilling in hard and abrasive materials. It measures 3/16 inches in diameter with an overall length of 3.5 inches and a flute length of 2-5/16 inches. The 135-degree split point reduces walking and allows drilling to begin without a center punch. A titanium nitride (TiN) coating increases surface hardness and extends tool life in demanding applications. The straight cylindrical shank fits standard drill chucks. This bit is suited for machinists, fabricators, maintenance technicians, and HVAC or plumbing trades cutting through structural metals.

The C66009 is used in production and maintenance drilling applications where hardened or tough base materials are involved. The cobalt construction handles alloy steel, carbon steel, cast iron, aluminum, and other non-ferrous metals. The right-hand spiral flute and web-thinned, tapered web geometry promote efficient chip evacuation. This bit is a practical choice for field and shop use where consistent hole quality in difficult materials is required.

Key Features

• Cobalt construction for heat resistance and durability in hard metals
• TiN coating increases surface hardness and reduces wear
• 135-degree split point reduces thrust and eliminates center-punch requirement
• Web-thinned tapered web improves chip flow and reduces cutting resistance
• Right-hand cut with regular spiral flute for standard drilling operations
• Straight cylindrical shank fits standard chucks without adapters

Compatibility

Designed for drilling alloy steel, carbon steel, cast iron, aluminum, and non-ferrous metals. Fits any standard drill chuck or drill press accepting a 3/16-inch straight shank. Part of the CLE-LINE 1501-TT series for general-purpose cobalt tooling.

Installation Notes

This bit is installed and operated by machinists, fabricators, and trade technicians using handheld drills or drill presses. Secure the shank fully in the chuck before operation and verify the workpiece is clamped or fixtured. Use appropriate cutting fluid or coolant when drilling steel to manage heat buildup, even though this bit does not support coolant-through delivery. Follow applicable shop safety standards for rotating tooling, including eye protection and secure workholding.
