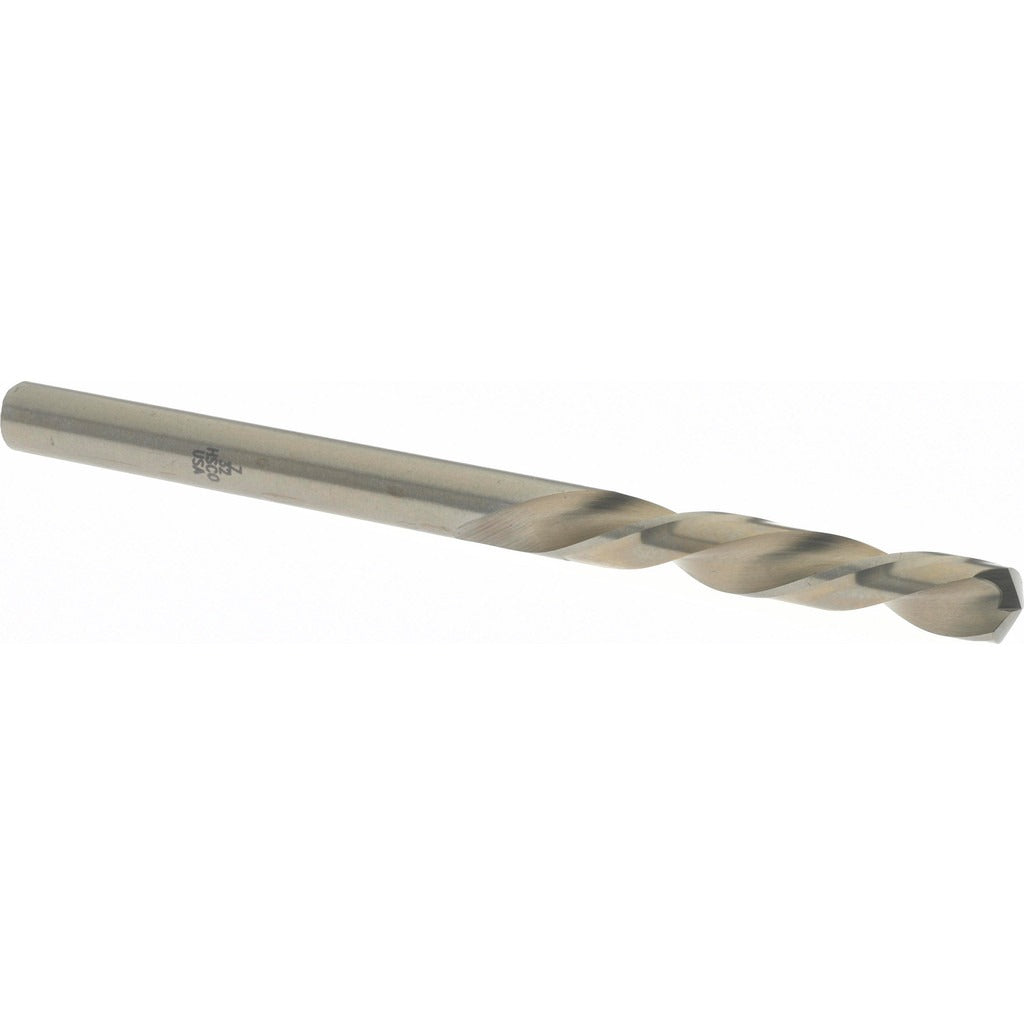

Cle-line C30514 7/32 in Cobalt Mechanics Drill Bit

Product Description

The CLE-LINE C30514 is a cobalt mechanics drill bit engineered for left-hand cutting in demanding applications. It features a 135-degree split point with web thinning that reduces walking and allows the bit to start drilling without a center punch. The gold finish serves as a heat indicator and corrosion barrier. At 7/32 inch (0.2188 inch decimal) in diameter and 3-1/8 inches overall length, this bit is built to handle tough workpiece materials including superalloys and titanium. It conforms to ASME B94.11M standards. Licensed tradespeople and machinists select this type of bit when extracting broken fasteners or drilling in reverse-thread applications.

This mechanics-length cobalt drill bit is suited for use in metal fabrication shops, maintenance and repair operations, and industrial service environments. Its left-hand cutting direction makes it particularly useful when attempting to back out damaged or seized fasteners during disassembly work. The spiral flute design and tapered web configuration promote chip evacuation in ferrous and non-ferrous metals, superalloys, and titanium workpieces. It is sold individually and is part of the Series 1880 line.

Key Features

• Left-hand cut direction assists in extracting broken or seized fasteners
• 135-degree split point with web thinning reduces thrust and eliminates bit walking
• Cobalt construction provides heat and wear resistance in hard-metal applications
• Gold finish acts as a thermal indicator and light corrosion barrier
• Tapered web and spiral flute geometry improve chip evacuation
• Meets ASME B94.11M dimensional standards

Compatibility

Designed for use in standard drill chucks accepting a straight cylindrical shank. Intended for drilling superalloys, titanium, and other hard metals where left-hand cutting direction is required.

Installation Notes

Install this bit in a drill press, hand drill, or reversible power drill set to reverse rotation to take advantage of the left-hand cut. Secure the workpiece firmly before drilling to prevent movement. Use appropriate cutting fluid for hard metals such as superalloys and titanium to extend bit life and manage heat buildup. Inspect the cutting edges before each use and replace the bit if chipping or excessive wear is observed.
