Cle-Line C23373 1/2 X 4.1/2 X 6 Hd Cobalt Jobber Drill

Product Description

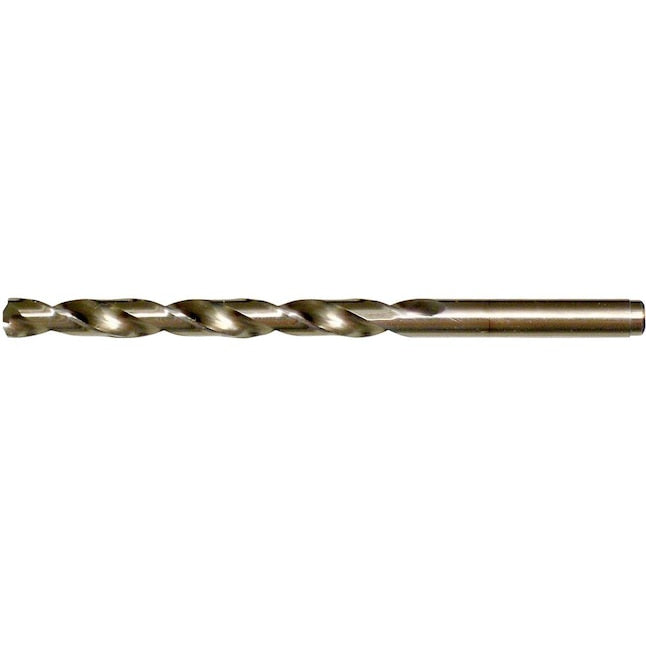

The CLE-LINE C23373 is a 1/2 X 4.1/2 X 6 HD cobalt jobber drill. Constructed from cobalt, this drill bit is uncoated. It has a 1/2 inch diameter, a 4 1/2 inch flute length, and a 6 inch overall length. Designed for drilling tough, high-tensile materials and work-hardening materials.

• Cobalt construction
• Uncoated finish
• 135° split point is self-centering, for reduced thrust and easier penetration

Product Highlights

The CLE-LINE C23373 drill bit is ideal for use on alloy steels, stainless steel, titanium, manganese steel, armor plate, and inconel.

Product Information

Standard Information

• Brand: CLE-LINE
• Manufacturer Part Number: C23373
• Country of Origin: US

Technical Specifications

• Brand: Cle-Line
• Material: HSS-CO
• Coating/Finish: Uncoated
• Diameter: 1/2 (12.700 mm ) (0.5000")
• Shank Dia.: 1/2 (12.700 mm ) (0.5000")
• Flute Length: 4 1/2 (114.300 mm ) (4.5000")
• Overall Length: 6 in
• Applicable Materials: Alloy Steel; Aluminum; Carbon Steel; Gray Cast Iron; Hardened Steel; Low Carbon Steel; Ni/Co/Fe Based Super Alloys; Nodular Cast Iron; Titanium
• No. of Flutes: 2
• Point Angle: 135 Degrees
• Point Shape: Split
• Shank Type: Straight
• Type: Fractional
• Item [Specifications]: Jobber Length Drill Bit
• Grade [Specifications]: Heavy Duty
• Series [Specifications]: 1802
• Standards [Specifications]: ASME B94.11M
• Flute Type [Specifications]: Spiral
• Point type [Specifications]: Split Point
• Shank Dia. [Specifications]: 1/2 in
• Application [Specifications]: For Alloy, Stainless Steel, Titanium, Manganese Steel, Armor Plate, Inconel
• Coolant Fed [Specifications]: Non-Coolant Through
• Helix Angle [Specifications]: 21 Degrees to 34 Degrees
• List Number [Specifications]: 1802
• Shank Length [Specifications]: 1 1/2 in
• Web Thinning [Specifications]: Thinned
• Sheeter Drill [Specifications]: No
• Aircraft Drill [Specifications]: No
• Drill Bit Size [Specifications]: 1/2 in
• Coolant Through [Specifications]: No
• Depth:Dia. Ratio [Specifications]: 4xD
• Drill Bit Finish [Specifications]: Straw/Bronze
• Spiral Direction [Specifications]: Right Hand
• Cutting Direction [Specifications]: Right Hand
• Decimal Equivalent [Specifications]: 0.5000
• Depth x Dia. Ratio [Specifications]: 4xD
• Drill Bit Grouping [Specifications]: Drill Bit
• Drill Bit Material [Specifications]: Cobalt
• Drill Length Class [Specifications]: Jobber Length
• Drill Point Length [Specifications]: 0.1036"
• Finish - Machining [Specifications]: Straw/Bronze
• Measurement System [Specifications]: Fractional Inch
• Drill Bit Point Type [Specifications]: Split Point
• Material - Machining [Specifications]: Cobalt
• Drill Bit Point Angle [Specifications]: 135 Degrees
• Maximum Drilling Depth [Specifications]: 3 3/8 in
• Shank Type - Machining [Specifications]: Straight
• Number of Coolant Holes [Specifications]: 0
• Drill Bit Dimension Type [Specifications]: Fractional Inch
• Drill Diameter Tolerance [Specifications]: +0.0000 in/-0.0010 in
• Material Grade - Machining [Specifications]: High Performance
• Primary Material Application [Specifications]: Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Nickel, Steel, Titanium
• Primary Material Application ISO Code [Specifications]: H, K, N, P, S
• Shank Size: 0.5 in
• Size Type: Fractional, Equal Ends
• Diameter - Decimal: 0.5 in
• Drill Length Type: Jobber
• Diameter - Fraction: 1/2 in
• Coating: Straw
• Finish: Gold Oxide
• Flute Length - Metric: 114.3 mm
• Shank Length: 1.5 in
• Shank Length - Metric: 38.1 mm
• Drill Size: 1/2 in
• Drill Style: Jobber
• Model: C23373
• MPN: C23373
• Country of Origin: US
• Style: Jobber Length Drill Bit
• Item: Jobber Length Drill Bit
• Surface Finish: Straw
• Hand of Spiral: Right Hand Spiral
• Hand of Cut: Right Hand Cut
• Drill Diameter: 1/2 in
• Point Style: Split
• Shank Configuration: Straight
• Series: Heavy-Duty
• Product Type: Jobber Drill
• Cutting Depth: 5XD
• Cutting Edge Material: M42 HSS-Co 8%
• Drill Diameter Measurement System: Imperial
• Drill Size - Decimal Inch: 0.5 in
• Drill Size - Fraction: 1/2 in
• Flute Type: Right Spiral
• Surface Condition: Straw
• Through Coolant (Yes/No): No
• Tool Size: 1/2\"
