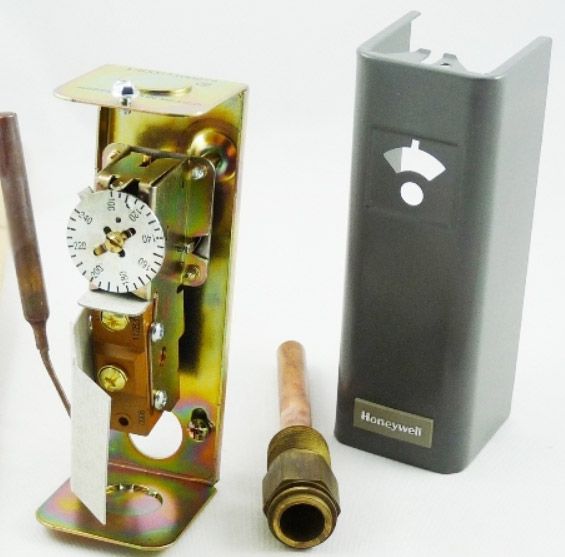

Honeywell L4006B1155 Circulator Aquastat Controller SPST

Product Description

The Honeywell L4006B1155 Circulator Aquastat Controller, SPST is designed for hydronic heating systems. This controller regulates the temperature in boilers and tanks, ensuring efficiency and safety.

• Adjustable temperature range of 100 to 240 degrees Fahrenheit.
• SPST switch for straightforward operation.
• 3-inch insulation depth for effective temperature control.

Product Highlights

Honeywell L4006B1155 Circulator Aquastat Controller with adjustable temperature control and robust SPST switch is ideal for boilers and tanks.

Product Information

Standard Information

• Brand: Honeywell
• Model: L4006B1155

Technical Specifications

• Temperature Range: 100 - 240 degrees Fahrenheit
• Differential: 5 - 30 degrees Fahrenheit
• Switch Type: SPST
• Bulb Size: 3/8 x 2-7/8 inches Copper
• Spud Size: 3/4 inch NPT
• Mounting Type: Horizontal/Vertical
• Capillary Length: 3 inches
• Insulation Depth: 3 inches
• Dimensions: 5-5/8 inches H x 2 inches W x 2-1/8 inches D
• Weight: 1.20 lbs
