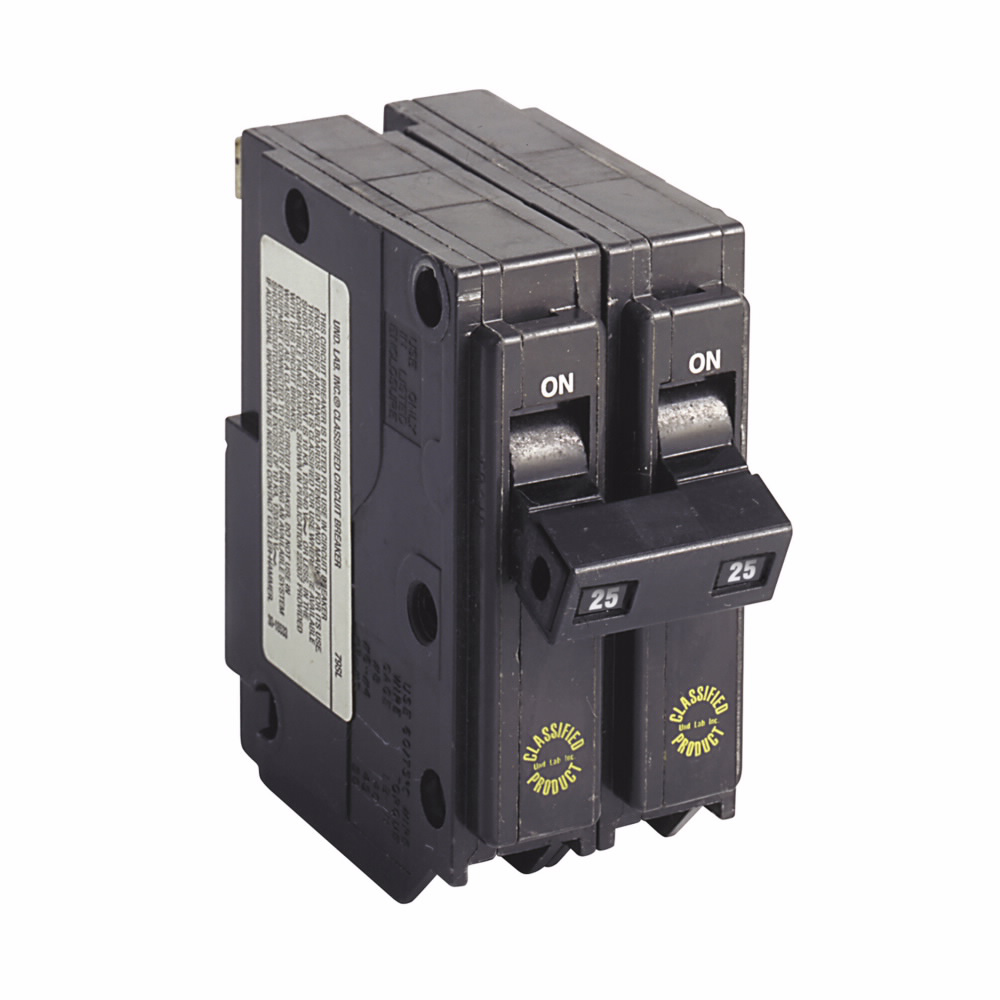

Eaton CHQ225 3/4 Inch Type CHQ Classified Replacement Circuit Breaker with Clamshell Pack

Product Description

The Eaton CHQ225 is a 3/4-inch, Type CHQ classified replacement circuit breaker with a clamshell pack. Designed to ensure your electrical systems function safely and effectively, it features a 25 Amp rating and a common breaker trip for reliability.

• Compatible with Type CH load centers.
• Amperage: 25 Amp
• Voltage: 120/240 VAC

Product Highlights

This breaker offers solid performance for renewable energy applications, marine equipment, and datacenters. It is UL classified as a direct replacement, ensuring safety and reliability. The clamshell pack design simplifies installation.

Product Information

Standard Information

• Brand: Eaton
• MPN: CHQ225

Technical Specifications

• Amperage: 25 Amp
• Voltage: 120/240 VAC
• Interrupt Rating: 10 kAIC
• Trip Type: Common Breaker Trip
• Number of Poles: 2
• Length: 2.5 inches
• Width: 1.5 inches
• Height: 3 inches
• Wire Size: 14-10 AWG Copper/Aluminum
• Temperature Rating: 60 to 75 degrees Celsius
• Standards: UL 489
• Application: Renewable Energy, Marine Vessels, Conventional Energy, Datacenters
