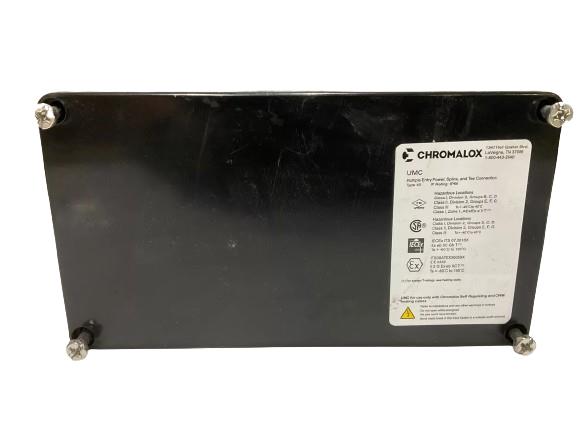

Chromalox 393561 UMC Multiple Entry Power Connection Box

Product Description

The CHROMALOX 393561 UMC Multiple Entry Power Connection Box is an accessory designed for industrial pipe heating applications. This NEMA 4X rated junction box connects two or three SRL, SRP, SRM/E, and CWM cables to customer-supplied power wiring. It provides water-resistant cable entry, enclosure support, and a corrosion-resistant wiring enclosure, ensuring secure and reliable connections for heat tracing systems.

• NEMA 4X rated junction box designed to connect two or three SRL, SRP, SRM/E and CWM cables to customer supplied power wiring.
• Provides water-resistant cable entry, enclosure support, terminal block and a water-resistant, corrosion-resistant wiring enclosure.
• Can be used to provide power connection to up to three cables from one connection kit.

Product Highlights

Water-resistant, corrosion-resistant NEMA 4X junction box for connecting multiple heat tracing cables in industrial pipe heating.

Product Information

Standard Information

• Brand: CHROMALOX
• Manufacturer Part Number: 393561

Technical Specifications

• Manufacturer: Chromalox
• Product Line: Chromalox Power Connection Box
• Manufacturer Part Number: 393561
• Product Type: Accessories
• Applications: Industrial Pipe Heating
• Dimensions (H x W x D): 9.78 x 8.69 x 3.6 inches
• Kit Includes: 1 Junction box with din rail and terminal block, 1 Compression fitting, 1 Locknut, 3 Silicone termination boots, 1 Pipe standoff, 1 O-ring, 1 Self-regulating cable grommet, 1 Constant wattage cable grommet, 1 Self-regulating cable grommet insert, 1 Constant wattage cable grommet insert
• Category: Heating Elements, Heat Trace Cable/Accessory
