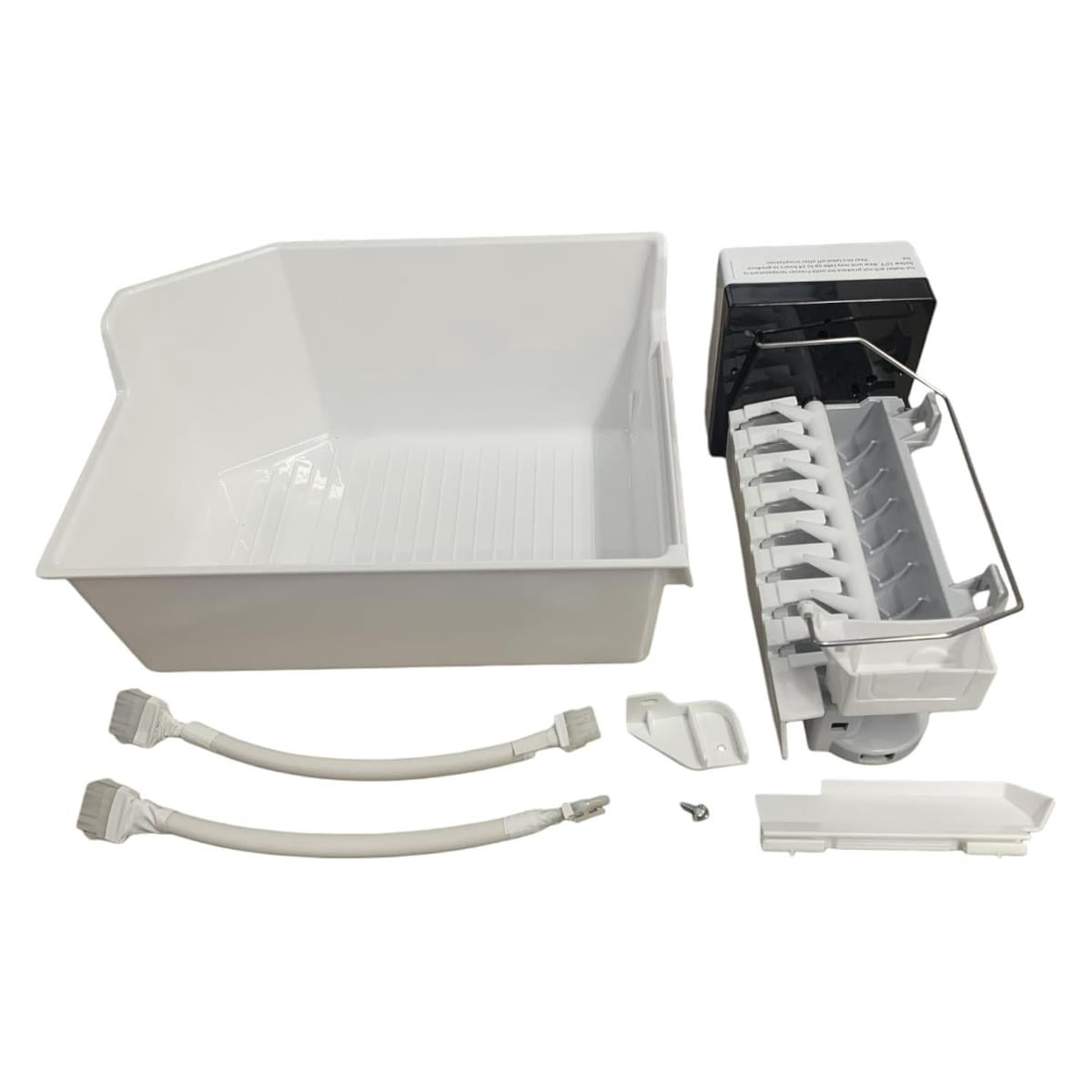

Choice Manufactured Parts W11517113 spark proof ice maker assembly electric (integrated) replacement W11517113

Product Description

Choice Manufactured Parts W11517113 is a spark proof ice maker assembly designed as an electric replacement for compatible Whirlpool and related refrigerators. The unit uses sealed micro-switches and test contacts for manual cycling, a universal fill cup with removable bail arm, and stabilized water level adjustment for consistent ice production. It is an integrated, plastic-bodied assembly that is safe for R600 (isobutane) refrigerant and includes multi-pin wiring harnesses.

• Spark-proof design with sealed micro-switches and test contacts; safe for R600 (isobutane) systems
• Universal fill cup, removable bail arm, and stabilized water-level adjustment for consistent ice production
• Electric integrated installation; includes wiring harnesses for 4-, 5-, and 8-pin connections; replaces multiple OEM part numbers

Product Highlights

Spark proof electric ice maker assembly for Whirlpool/Maytag refrigerators; sealed switches and test contacts; includes 4/5/8-pin harnesses; compatible with R600 (isobutane).

Product Information

Standard Information

• Brand: CHOICE MANUFACTURED PARTS
• Manufacturer Part Number: W11517113
• Country of Origin: China

Technical Specifications

• Brand: Choice Manufactured Parts
• MPN: W11517113
• Model: W11517113CM
• Type: Spark Proof Ice Maker Assembly
• Power Source: Electric
• Mounting Type: Integrated
• Material: Plastic
• Dimensions: 11.00 in W x 13.00 in H x 3.50 in D (depth estimated)
• Compatible Brands: Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper
• Compatible Models (examples): ARTX3028PB00; ARTX3028PW00; ARTX3028PW01; WRT311FZDZ02; WRT518SZFB02; WRT518SZFM02; WRT518SZFW02; WRT519SZDB07; WRT519SZDB09; WRT519SZDB10; WRT519SZDM07; WRT519SZDM09; WRT519SZDM10; WRT519SZDT09; WRT519SZDT10; WRT519SZDW09; WRT519SZDW10; WRT541SZDB01; WRT541SZDM01; WRT541SZDW01; WRT541SZDZ01; WRTX5028PB00; WRTX5028PB01; WRTX5028PM00; WRTX5028PM01; WRTX5028PW00; WRTX5028PW01
• Replaces: AP7179162, PS16660337, WPW10715709, W10365049, W10715709, ECKMFEZ1, ECKMFEZ2, W10365751, W10711927, W11729596, W11510803, W11534202, W11534203, W11698621, W11698624, IMKIT94, KIMS9, AP7244933
• Safe Refrigerant: R600 (isobutane)
• Includes: Wiring harnesses for 4-, 5-, and 8-pin options
• Suitable For: Household refrigerator
• Condition: New
• Country of Origin: China
• UPC: 810104503693
• Model Number (alternate): W11517113CM
