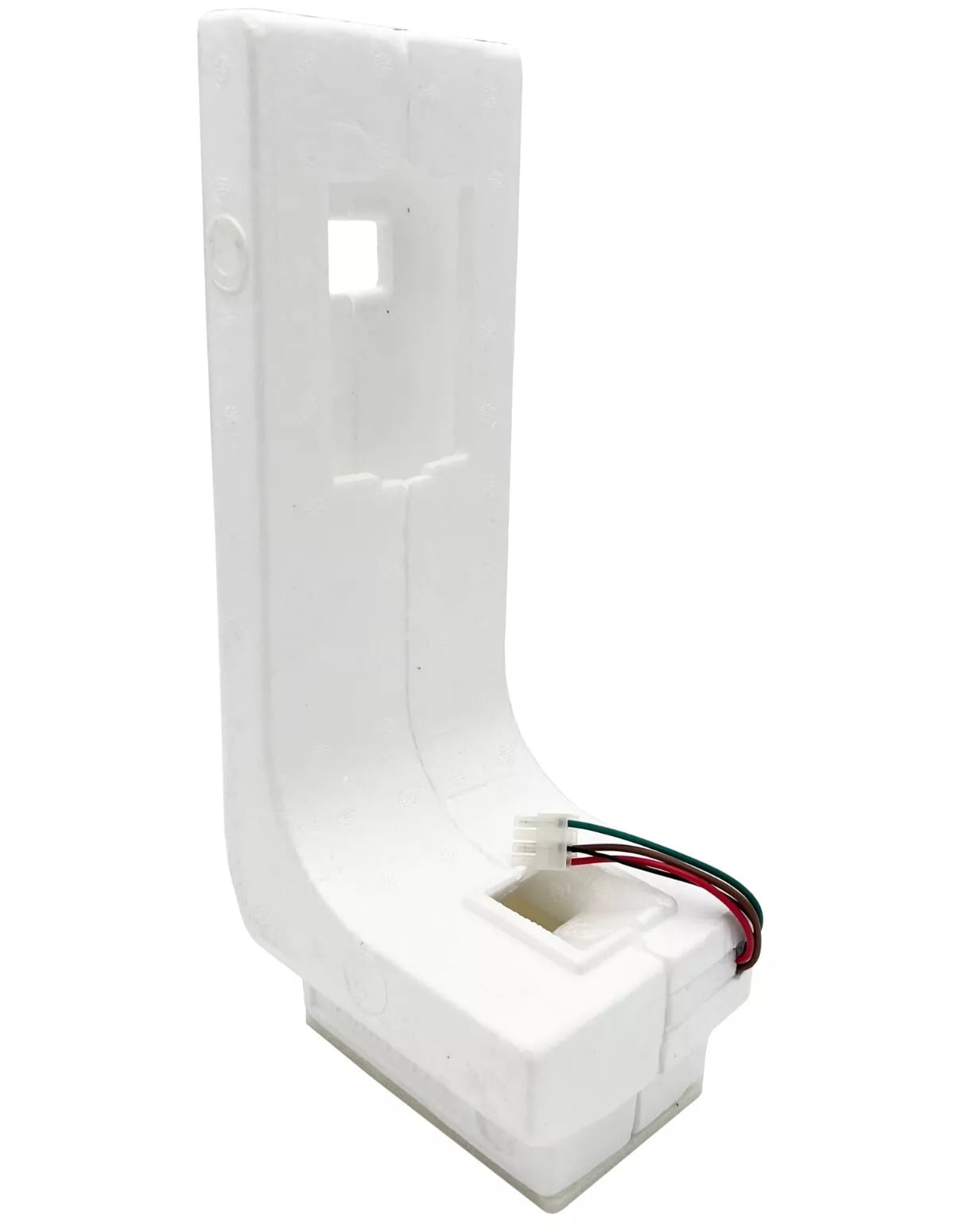

Choice Manufactured Parts W10814173 Refrigerator Damper 120V/60Hz/3.5W (Insert Mount) W10814173

Product Description

Choice Manufactured Parts W10814173 is a refrigerator air damper door control that regulates cold airflow from the freezer to the refrigerator compartment. The assembly uses a 120V/60Hz, 3.5W motor with an integrated styrofoam air channel and insert-mount plastic housing. It includes a 4-wire harness with an 8-pin connector and a 4-inch lead, and fits OEM-style Whirlpool side-by-side, KitchenAid, and Maytag refrigerators.

• Electrical rating: 120V / 60Hz / 3.5W motor; insert-mount plastic construction
• Includes 4-wire harness with 8-pin connector and 4 inch harness lead; 13 inch styrofoam channel
• Function: motorized damper door control to regulate freezer-to-refrigerator airflow; replaces multiple Whirlpool OEM part numbers

Product Highlights

Motorized refrigerator air damper assembly with 120V/60Hz/3.5W motor, 13 inch styrofoam channel, 4-wire 8-pin harness; OEM-style replacement for Whirlpool side-by-side and compatible models.

Product Information

Standard Information

• Brand: CHOICE MANUFACTURED PARTS
• Manufacturer Part Number: W10814173
• Country of Origin: United States

Technical Specifications

• Brand: Choice Manufactured Parts
• Manufacturer Part Number: W10814173
• MPN: W10814173
• Function: Refrigerator air damper door control (motorized damper assembly to regulate freezer-to-refrigerator airflow)
• Electrical Rating: 120V / 60Hz / 3.5W
• Input Voltage: 120V
• Frequency: 60Hz
• Power: 3.5W
• Connector: 4-wire harness with 8-pin connector
• Harness Length: 4 inches
• Styrofoam Channel Length: 13 inches
• Mounting Type: Insert Mount
• Material: Plastic
• Weight: 0.83 Pounds
• Dimensions: 13.5 x 6.73 x 5.04 Inches (package dimensions)
• Country of Origin: United States
• Condition: Open box
• Item Package Quantity: 1
• Replaces Part Numbers: AP5985775, W10814173, W10251495, W10699909, 4273188, PS11723079, W10354976, W10750145, W10869523, W10914207
• Compatible With: Whirlpool side-by-side refrigerators; compatible with select KitchenAid and Maytag models
• UPC: 810104501163
• EAN: 0810104501163
• SKU: W10814173CM
