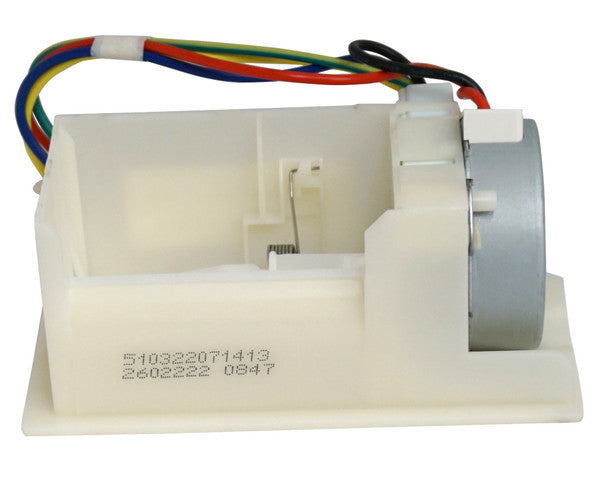

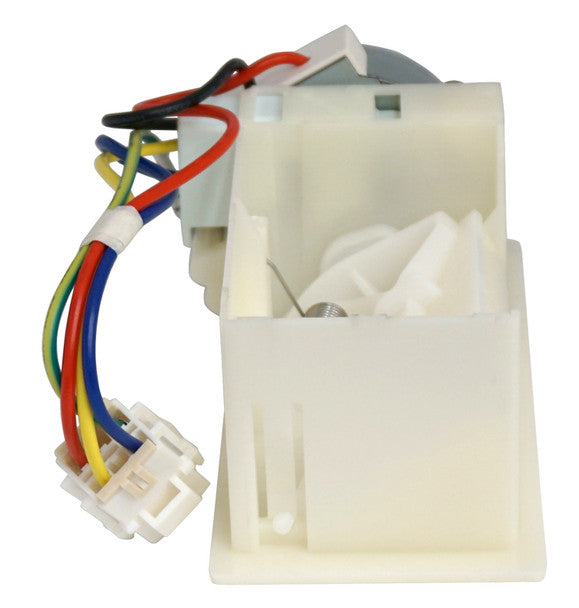

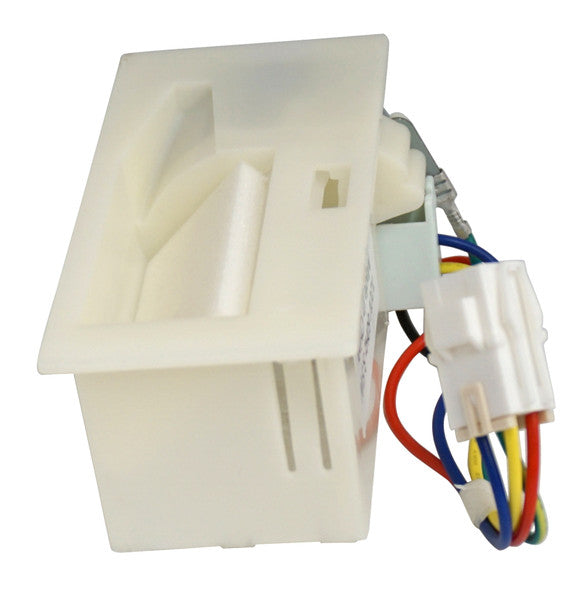

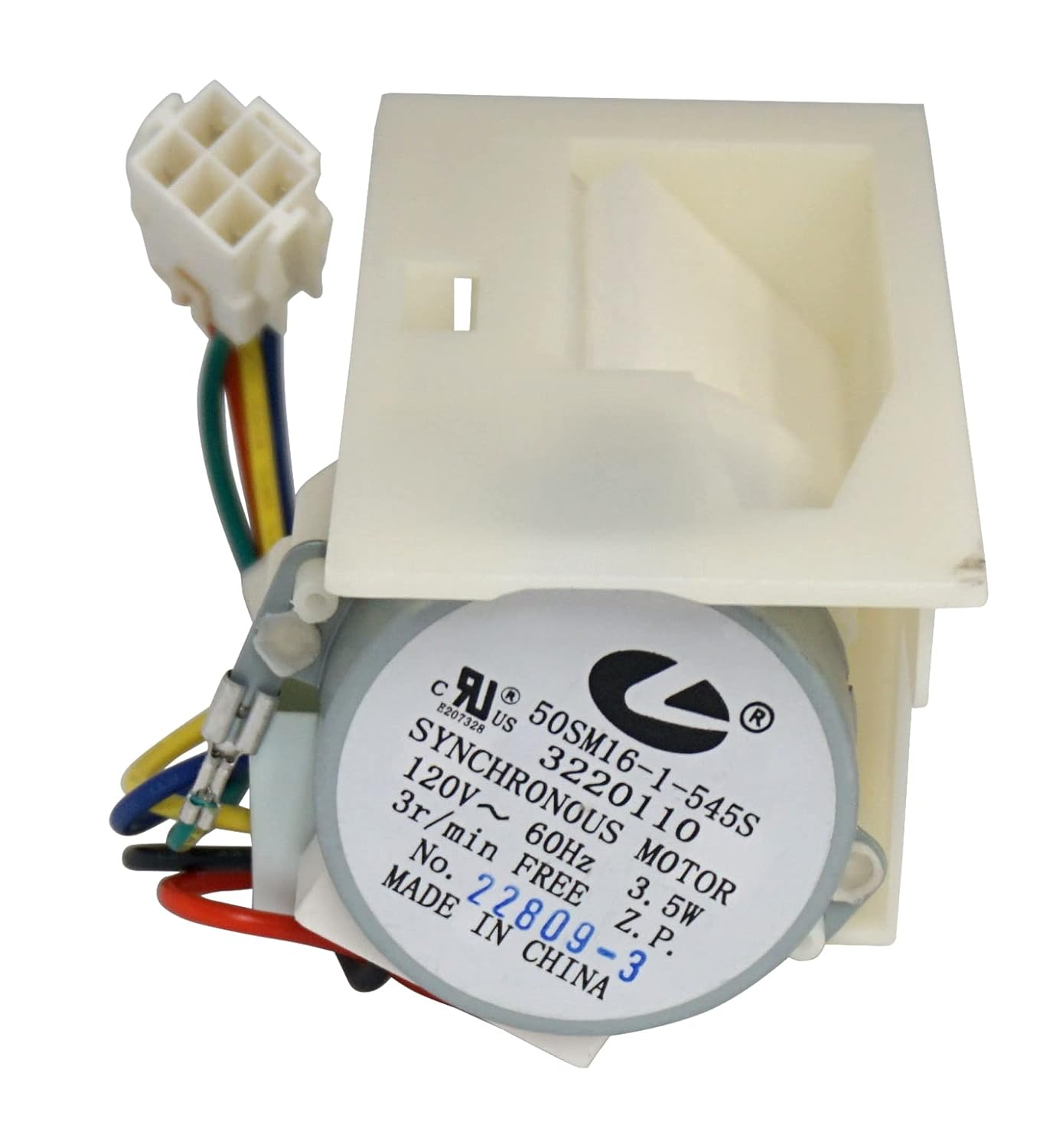

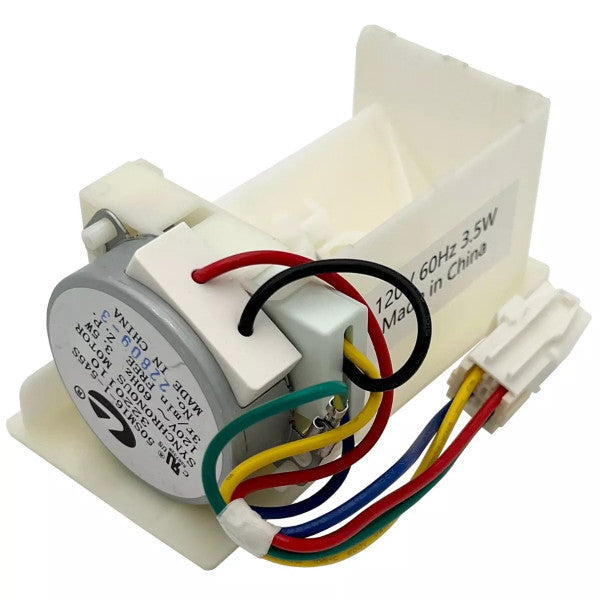

Choice Manufactured Parts W10594329 Refrigerator Damper Control 3.5W (1 Pack) AP6023299

Product Description

Choice Manufactured Parts W10594329 is a refrigerator damper control assembly that uses a 120V, 60Hz, 3.5W motor to open and close the damper door and regulate airflow from the freezer to the refrigerator compartment. The unit includes a factory-style connector and mounting tabs and a 5" harness with a 4-wire 6-pin connector. It serves as a direct replacement for multiple Whirlpool OEM part numbers.

• 120V, 60Hz, 3.5W motorized damper for regulating freezer-to-refrigerator airflow
• 5" harness with 4-wire 6-pin connector, factory-style connector and mounting tabs
• Direct replacement for multiple OEM part numbers including AP6023299, PS11756641, W10594329

Product Highlights

Motorized air damper assembly for Whirlpool-compatible refrigerators; 120V 3.5W motor; 5" 4-wire 6-pin harness; replaces several OEM part numbers.

Product Information

Standard Information

• Brand: CHOICE MANUFACTURED PARTS
• Manufacturer Part Number: W10594329
• Country of Origin: United States of America

Technical Specifications

• Brand: Choice Manufactured Parts
• Manufacturer Part Number: W10594329
• Part Type: Air damper control assembly
• Function: Opens and closes damper door to control airflow from freezer to refrigerator compartment
• Voltage: 120V
• Frequency: 60Hz
• Power: 3.5W
• Connector / Harness: 5" harness, 4-wire 6-pin connector; factory-style connector and mounting tabs
• Material: Plastic
• Number of Items: 1
• Unit Count: 1.0
• Condition: New
• Replaces / Cross References: AP6023299, PS11756641, W10594329, WPW10594329, 00798467, PS9492885, AP5806530, W10207517, 798467, W10127431, WPW10127431, 3281328
• Compatible Brands: Whirlpool, Bosch, Kenmore, KitchenAid, Jenn-Air, Maytag
• UPC: 810104501149
• ASIN: B0C4B8WN3Q
