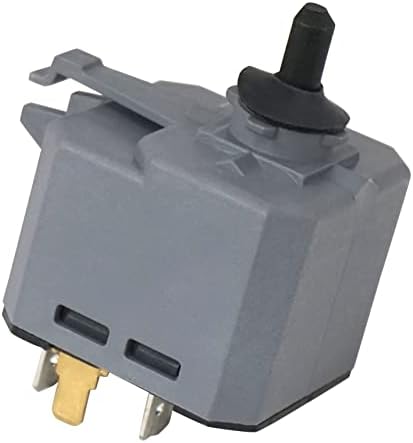

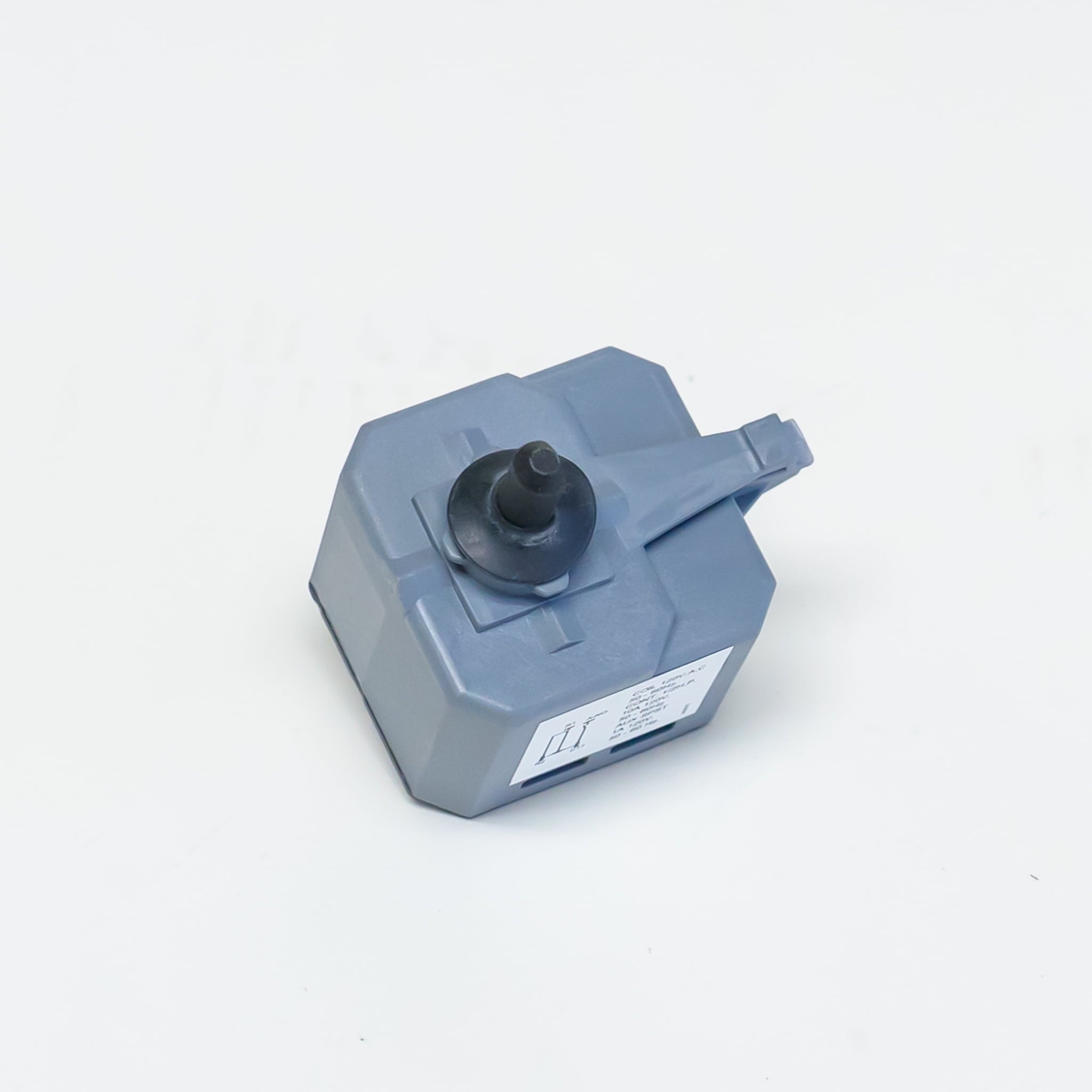

Choice Manufactured Parts W10563095 Dryer Push-to-Start Switch 120V 1/2 HP (3-Terminal) AP6023004

Product Description

Choice Manufactured Parts W10563095 is a push-to-start (PTS) relay switch for clothes dryers. The switch is rated 120V, 50/60Hz, 10A and 1/2 HP with a 3-terminal, normally open design and automatic operation. It functions as an aftermarket replacement for Whirlpool dryers and fits some Maytag and Kenmore models, replacing OEM references such as AP6023004, PS11756343, and WPW10563095.

• Electrical rating: 120V, 50/60Hz, 10A, 1/2 HP; coil voltage 120V
• Three-terminal, normally open contact design with automatic operation
• Replaces OEM part numbers AP6023004, WPW10563095, 3022058, PS11756343; compatible with Whirlpool, some Maytag and Kenmore models

Product Highlights

Push-to-start dryer relay, 120V 10A 1/2 HP, 3-terminal normally open design, replaces multiple OEM part numbers

Product Information

Standard Information

• Brand: CHOICE MANUFACTURED PARTS
• Manufacturer Part Number: W10563095
• Country of Origin: China

Technical Specifications

• Brand: Choice Manufactured Parts
• MPN: W10563095
• Model Number: W10563095
• Function: Dryer push-to-start switch (PTS) relay
• Condition: New
• Input Voltage: 120 V
• Frequency: 50/60 Hz
• Current Rating: 10 A
• Horsepower: 1/2 HP
• Coil Voltage: 120 V
• Number of Terminals: 3
• Contact Type: Normally Open
• Operation Mode: Automatic
• Maximum Switching Voltage: 120 V
• Maximum Switching Current: 10 A
• Replaces: AP6023004, 3022058, PS11756343, WPW10563095, W10563095
• Compatible Brands: Whirlpool, Maytag, Kenmore
• UPC: 810104500753
• Country of Origin: China
