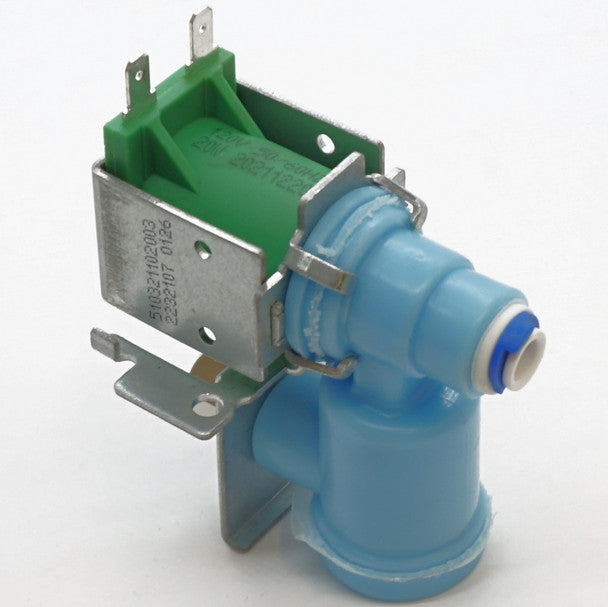

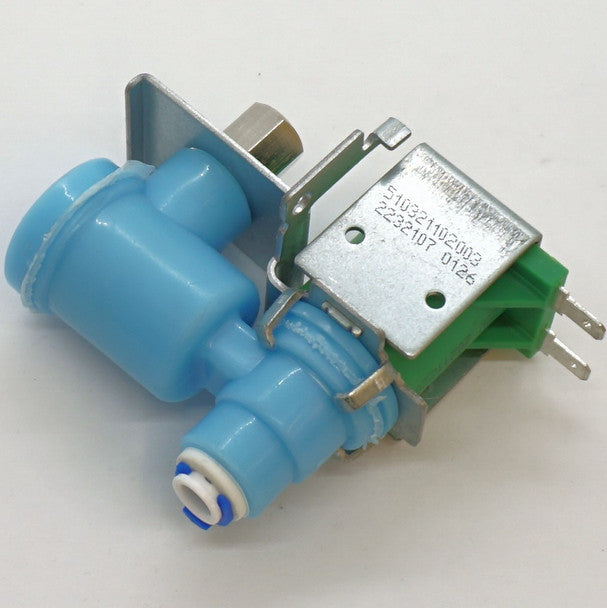

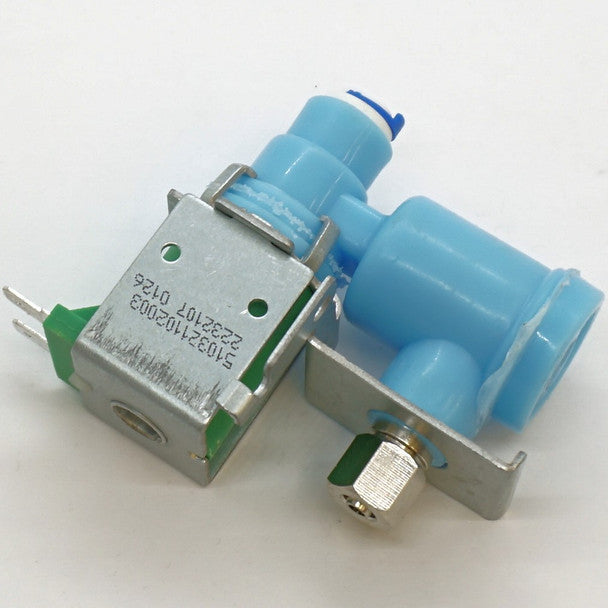

Choice Manufactured Parts DA62-00930A Refrigerator Water Inlet Ice Solenoid Valve 120V 20W (1 Pack) DA62-00930ACM

Product Description

Choice Manufactured Parts DA62-00930A is a refrigerator water inlet and ice solenoid valve intended for compatible Samsung bottom-freezer refrigerator models. The single-coil solenoid is rated 120 V and 20 W and controls water flow to the ice maker and dispenser. The unit includes a mounting bracket and a 1/4 inch compression nut and provides two compression ports in a plastic enclosure for standard refrigeration water lines.

• Single solenoid coil rated 120 V, 20 W for controlling water flow to ice maker and dispenser
• Includes mounting bracket and 1/4 inch compression nut; two compression ports (inlet and outlet)
• Plastic construction; compact dimensions 3.38 x 2.88 x 2.38 inches and approximate weight 1 lb

Product Highlights

Replacement water inlet/ice solenoid valve for compatible Samsung bottom-freezer refrigerators; single-coil 120 V, 20 W; includes mounting bracket and 1/4 inch compression fitting.

Product Information

Standard Information

• Brand: CHOICE MANUFACTURED PARTS
• Manufacturer Part Number: DA62-00930A
• Country of Origin: China

Technical Specifications

• Brand: Choice Manufactured Parts
• Manufacturer Part Number: DA62-00930A
• Seller Model/SKU: DA62-00930ACM
• Condition: New
• Valve Type: Solenoid valve
• Coil Voltage: 120 V
• Power Consumption: 20 W
• Inlet Connection: 1/4 inch compression
• Outlet Connection: Compression
• Number of Ports: 2
• Includes: Mounting bracket, 1/4 inch compression nut
• Material: Plastic
• Dimensions: 3.38 x 2.88 x 2.38 inches
• Weight: 1 lb
• Compatible With: Samsung bottom-freezer refrigerator models
• Replaces: DA62-00930A, 2034444, DA97-03217A, AP4146979, PS4146165
• UPC: 810032862640
• Country of Origin: China
