Choice Manufactured Parts cmr975d25 Radiant Surface Element

Product Description

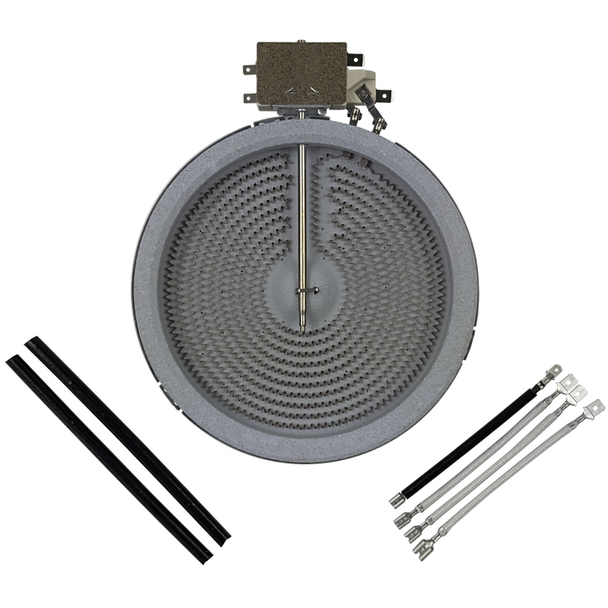

The CHOICE MANUFACTURED PARTS cmr975d25 is a replacement radiant surface element with wire kit designed for electric range and cooktop service. Rated at 2500 watts, this element measures 9.75 inches in diameter and provides the resistive heating surface for smooth-top electric ranges. The included wire kit simplifies the swap, giving the installer all necessary connections in a single package. HVAC and appliance service technicians install this element as a direct OEM-style replacement when the original element fails to heat, heats unevenly, or shows visible damage.

This element is suited for residential electric range and smooth-top cooktop applications. It is a drop-in replacement that restores full cooking function without modification to the appliance wiring harness. The wire kit is included for installations where the original wiring shows heat damage or must be replaced alongside the element. Service calls typically involve ranges showing one burner zone with no heat or erratic temperature response.

Key Features

• 2500-watt radiant heating element for electric smooth-top ranges
• 9.75-inch diameter fits standard large-burner positions
• Wire kit included for complete service in a single kit
• Direct replacement for multiple OEM part numbers across major brands
• Replaces discontinued and superseded part numbers: 316135401, WP8273992, W11047722, MEE62385101, 74009034, 7406P366-60, 8272565, 8523692, WP8523692, 8273992, W10248262, 316224200, 316224201, 318198835

Compatibility

The cmr975d25 replaces the following OEM part numbers: 316135401, WP8273992, W11047722, MEE62385101, 74009034, 7406P366-60, 8272565, 8523692, WP8523692, 8273992, W10248262, 316224200, 316224201, and 318198835. Verify the original part number on the appliance label or existing element before ordering.

Installation Notes

Installation is performed by a qualified appliance service technician. Disconnect power at the breaker or unplug the range before accessing the cooktop assembly. Remove the glass top or element retainer per the appliance service manual to access the element and wiring connections. Do not restore power until all connections are secure and the cooktop is fully reassembled.

Technical Specifications

• Wattage: 2500 watts
• Element Diameter: 9.75 inches
• Includes: Wire kit

Standard Information

• Brand: CHOICE MANUFACTURED PARTS
• Manufacturer Part Number: cmr975d25
