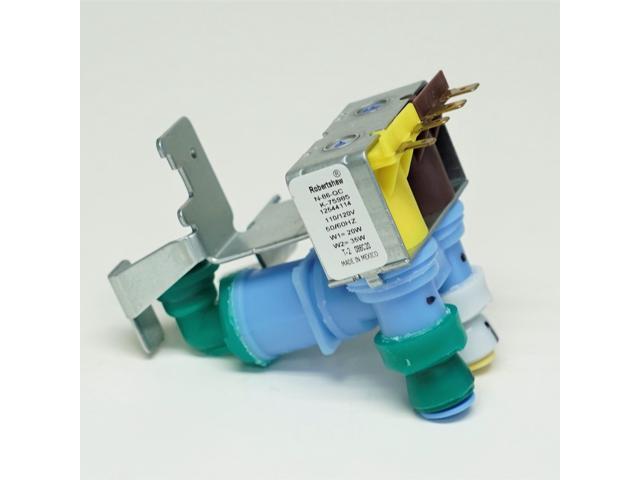

Choice Manufactured Parts 67005154 Refrigerator Water Valve 120 Vac 35W/20W (1/4 in and 5/16 in) 67005154CM

Product Description

Choice Manufactured Parts 67005154 is a replacement two-solenoid refrigerator water inlet valve designed for select Whirlpool-manufactured refrigerators, including Maytag and JennAir models. The assembly includes two solenoid coils rated at 120 Vac — maroon coil 35 W and yellow coil 20 W — with a 5/16-inch inlet and dual push-fit outlets for 1/4-inch and 5/16-inch tubing. It functions as a direct replacement for multiple OEM part numbers to control water supply to ice makers and dispensers.

• Two-solenoid coil assembly with both coils rated at 120 Vac; maroon coil 35 W and yellow coil 20 W.
• Plumbed with a 5/16-inch inlet and dual outlets for 1/4-inch and 5/16-inch tubing (push-fit outlets).
• Direct replacement for multiple OEM part numbers for select Whirlpool, Maytag, and JennAir refrigerator models.

Product Highlights

Two-solenoid 120 Vac inlet valve; 35 W and 20 W coils; 5/16 in inlet with 1/4 in and 5/16 in outlets; replaces multiple OEM numbers.

Product Information

Standard Information

• Brand: CHOICE MANUFACTURED PARTS
• Manufacturer Part Number: 67005154
• Country of Origin: China

Technical Specifications

• Brand: Choice Manufactured Parts
• Model: 67005154
• Manufacturer Part Number: 67005154CM
• Product Type: Refrigerator water inlet valve
• Coil Voltage: 120 Vac
• Coil Wattage: Maroon coil 35 W; Yellow coil 20 W
• Inlet: 5/16 inch tubing
• Outlets: Two outlets: 1/4 inch and 5/16 inch tubing (push-fit)
• Replaces: K-75988; 12544114; 67005154; 67003818; 8208154; 8208275; PS2068910; AP4080917
• Designed To Fit: Select Whirlpool-manufactured refrigerator models, including Maytag and JennAir
• Included Components: Water valve
• Dimensions: 5 x 5 x 3 inches
• Weight: 1.0 Pounds
• UPC: 810032863593
• ASIN: B0959W36TY
• Country of Origin: China
• Installation: DIY
