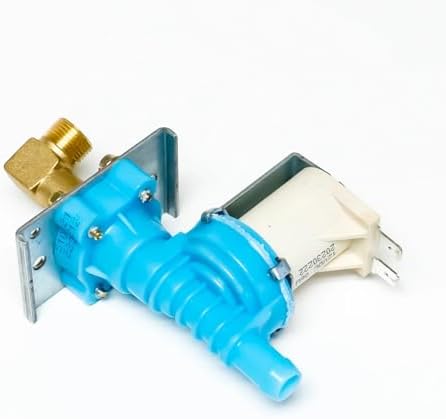

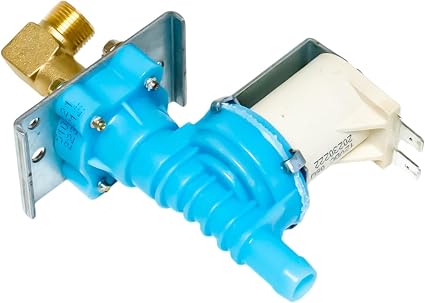

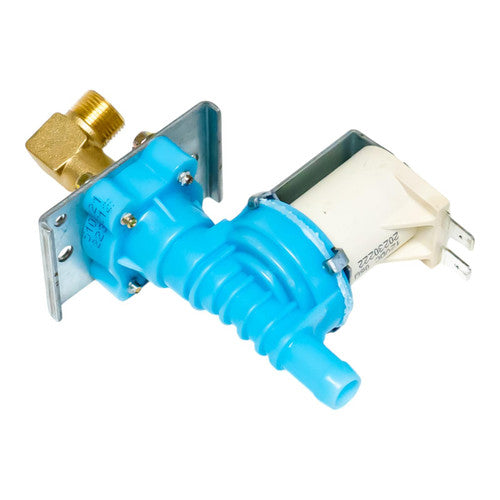

Choice Manufactured Parts 5221DD1001E Dishwasher Water Inlet Valve 120V (Replaces AP5804631, 5221DD1001C, 2977831, PS8769826)

Product Description

Choice Manufactured Parts 5221DD1001E is a dishwasher water inlet valve that controls water entry during the fill portion of the cycle and serves as a replacement for specified LG and Kenmore dishwasher models. The device is a 120V, 60Hz single-coil solenoid valve with a metal body, threaded/compression inlet and barb outlet, and two ports. It mounts inline to the water supply to open and close flow as commanded by the dishwasher control.

• Electrical: 120V, 60Hz single-coil solenoid; designed to open and close water flow during fill cycles
• Connections: threaded/compression inlet with barb outlet; two-port metal valve body
• Compatibility: replacement for AP5804631, 5221DD1001C, 2977831, PS8769826 and fit-for LG and compatible Kenmore models

Product Highlights

120V single-coil water inlet solenoid valve with threaded/compression inlet and barb outlet; replaces multiple OEM part numbers for LG and Kenmore dishwashers.

Product Information

Standard Information

• Brand: CHOICE MANUFACTURED PARTS
• Manufacturer Part Number: 5221DD1001E

Technical Specifications

• Brand: Choice Manufactured Parts
• Manufacturer Part Number: 5221DD1001E
• Alternate Manufacturer Part Number: 5221DD1001ECM
• Replaces / Compatible With: AP5804631, 5221DD1001C, 2977831, PS8769826, 633970CM
• Input Voltage: 120V
• Frequency: 60Hz
• Coil Type: Single-coil
• Valve Type: Water inlet valve (solenoid)
• Material: Metal
• Inlet Connection Type: Threaded / compression inlet
• Outlet Connection Type: Barb outlet
• Number of Ports: 2
• Connector Type: Internal water connection
• Dimensions: 3.75 x 2.5 x 4.5 inches
• Weight: 16 ounces
• Compatible With: Specific LG dishwasher models, compatible Kenmore models
• Unit Count: 1
• UPC: 810104503082
