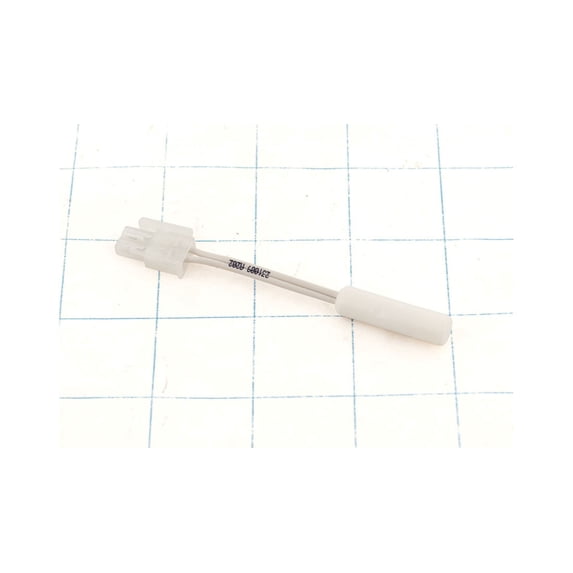

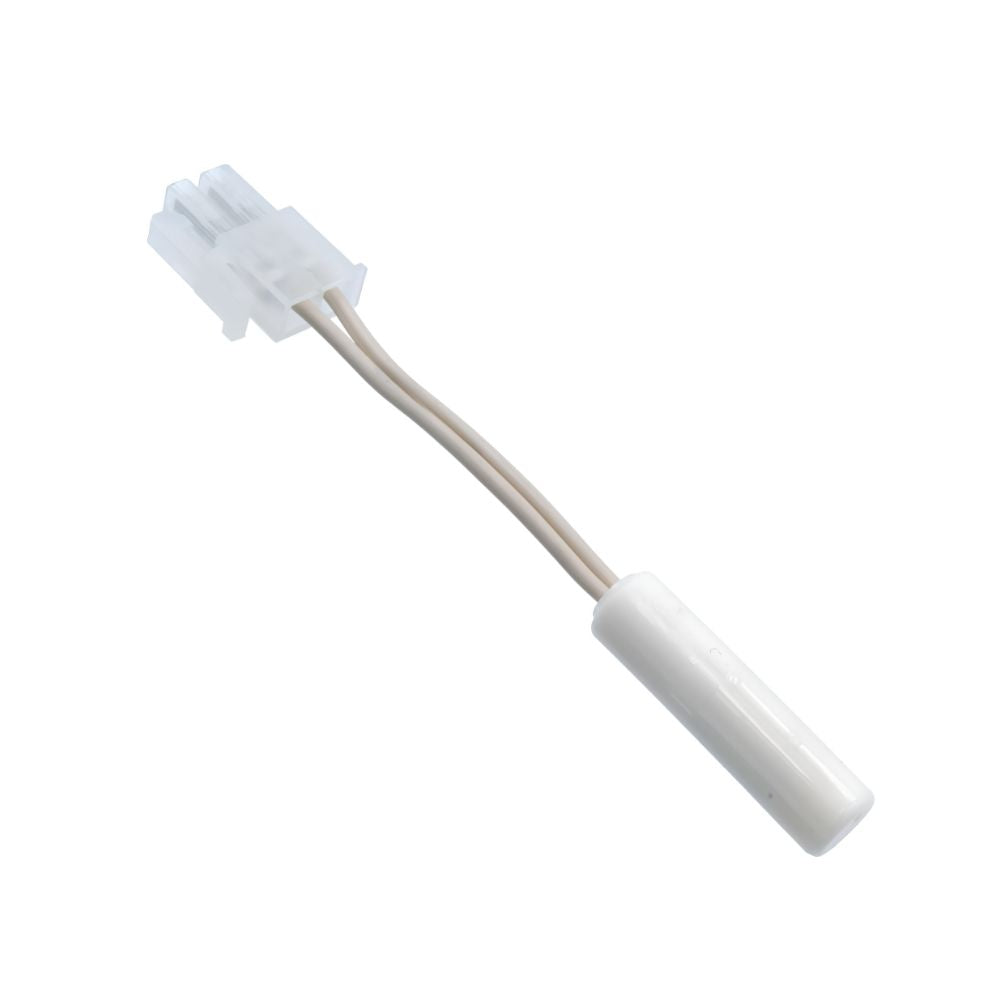

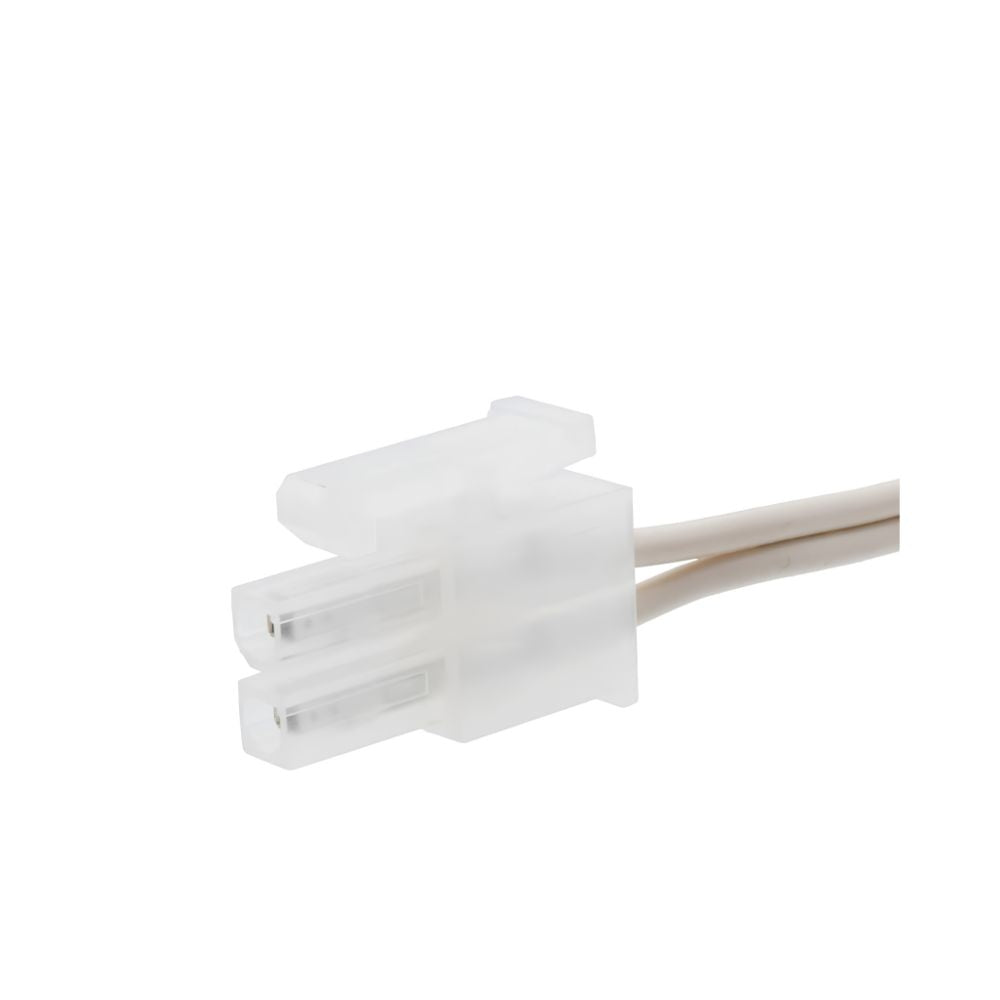

Choice Manufactured Parts 240597203 Refrigerator Temperature Sensor (5/16 in Probe, 12 in Wire) Replaces 240597220

Product Description

Choice Manufactured Parts 240597203 is an aftermarket 10K Ohm NTC thermistor refrigerator temperature sensor that monitors compartment temperature and sends resistance-based readings to the main control board to regulate compressor cycling, fans, and defrost timing. The sensor features a 5/16 in diameter probe (approx. 1-3/16 in probe length), 12 in wire lead, and overall assembly dimensions of 3-5/8 in L x 5/8 in W x 5/16 in H. Compatible with many Frigidaire and Electrolux platform household refrigerators (20-28 cu ft, 2005+).

• NTC thermistor rated 10K Ohm at room temperature providing resistance-based temperature feedback to the control board
• Probe: 5/16 in diameter x 1-3/16 in length; overall 3-5/8 in L x 5/8 in W x 5/16 in H with 12 in wire lead
• Aftermarket direct replacement for OEM part numbers including 240597220; resolves OP open sensor circuit and supports proper temperature regulation

Product Highlights

10K Ohm NTC thermistor sensor for Frigidaire/Electrolux platform refrigerators

Product Information

Standard Information

• Brand: CHOICE MANUFACTURED PARTS
• Manufacturer Part Number: 240597203
• Country of Origin: United States

Technical Specifications

• Brand: Choice Manufactured Parts
• MPN: 240597203
• Part Type: Refrigerator temperature sensor (NTC thermistor)
• Condition: Aftermarket replacement
• Application: Household refrigerators and freezers (Frigidaire/Electrolux platform, 20-28 cu ft, 2005+)
• Sensor Type: NTC (Negative Temperature Coefficient) thermistor
• Resistance: 10K Ohms at room temperature
• Probe Diameter: 5/16 in
• Probe Length: 1-3/16 in (probe itself)
• Overall Dimensions: 3-5/8 in L x 5/8 in W x 5/16 in H
• Wire Length: 12 in
• Material: Plastic / Metal
• Replaces: 240597220 (and other 240597 series / OEM cross-reference numbers)
• Compatible Brands: Frigidaire, Electrolux, Kenmore, Crosley, White-Westinghouse, Kelvinator, Gibson, Tappan, Viking, Ikea
• Error Codes Resolved: OP (open sensor circuit)
• Typical Applications: Refrigerator and household freezer temperature monitoring and control
