Choice Manufactured Parts 12002744 Refrigerator Evaporator Freezer Fan Motor 120V (1 Pack) 1174059

Product Description

Choice Manufactured Parts 12002744 is a replacement refrigerator evaporator/freezer fan motor designed for Whirlpool and Whirlpool-manufactured brands. The motor is rated 120V, 0.14A, 4.6W at 60Hz with a speed of 3000 RPM and features a 1/8 inch shaft with hexagon ends and a three-terminal hookup. The assembly includes a mounting bracket, wire harness and ground wire and is intended to restore evaporator airflow in the freezer compartment.

• Electrical: 120V, 0.14A, 4.6W, 60Hz, 3000 RPM

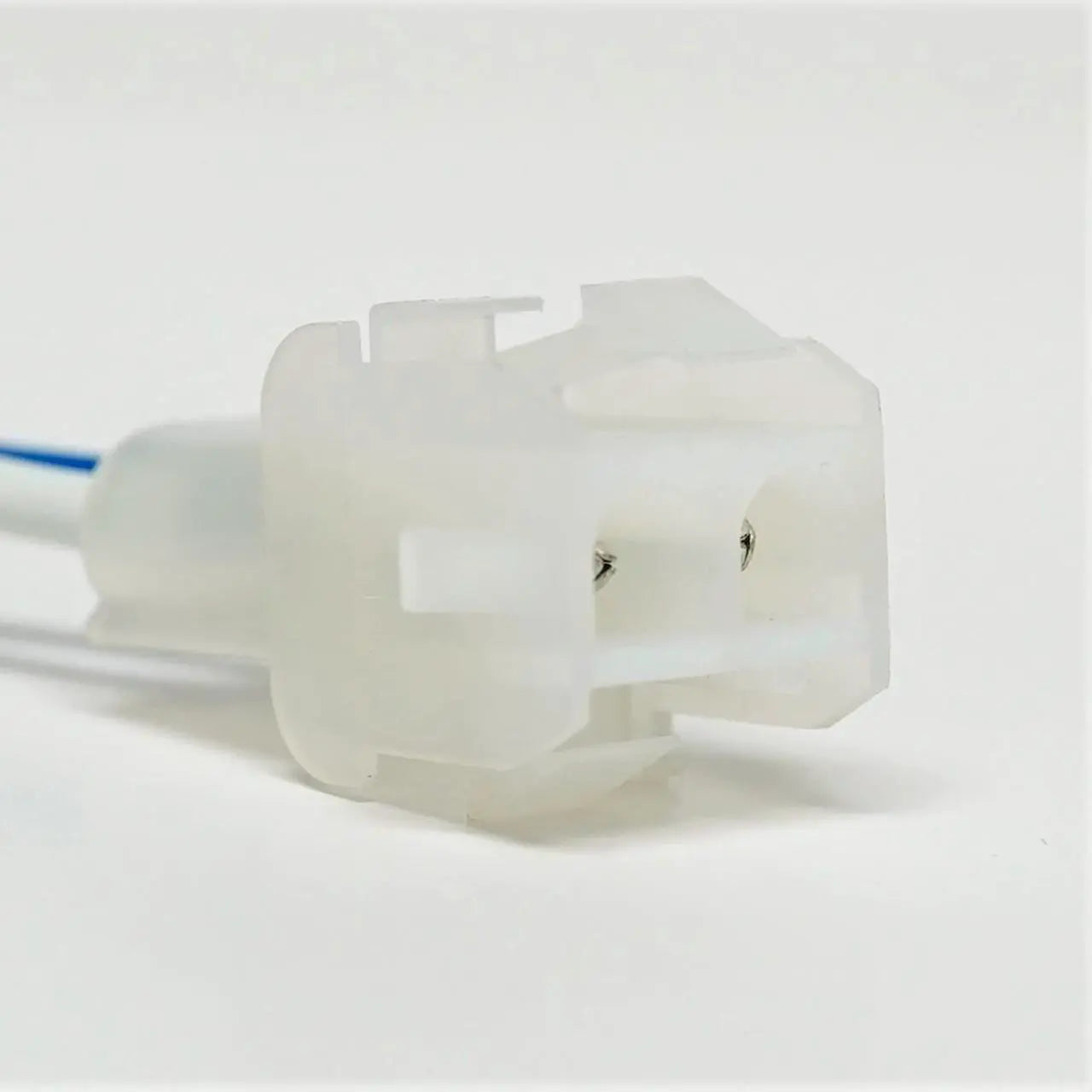

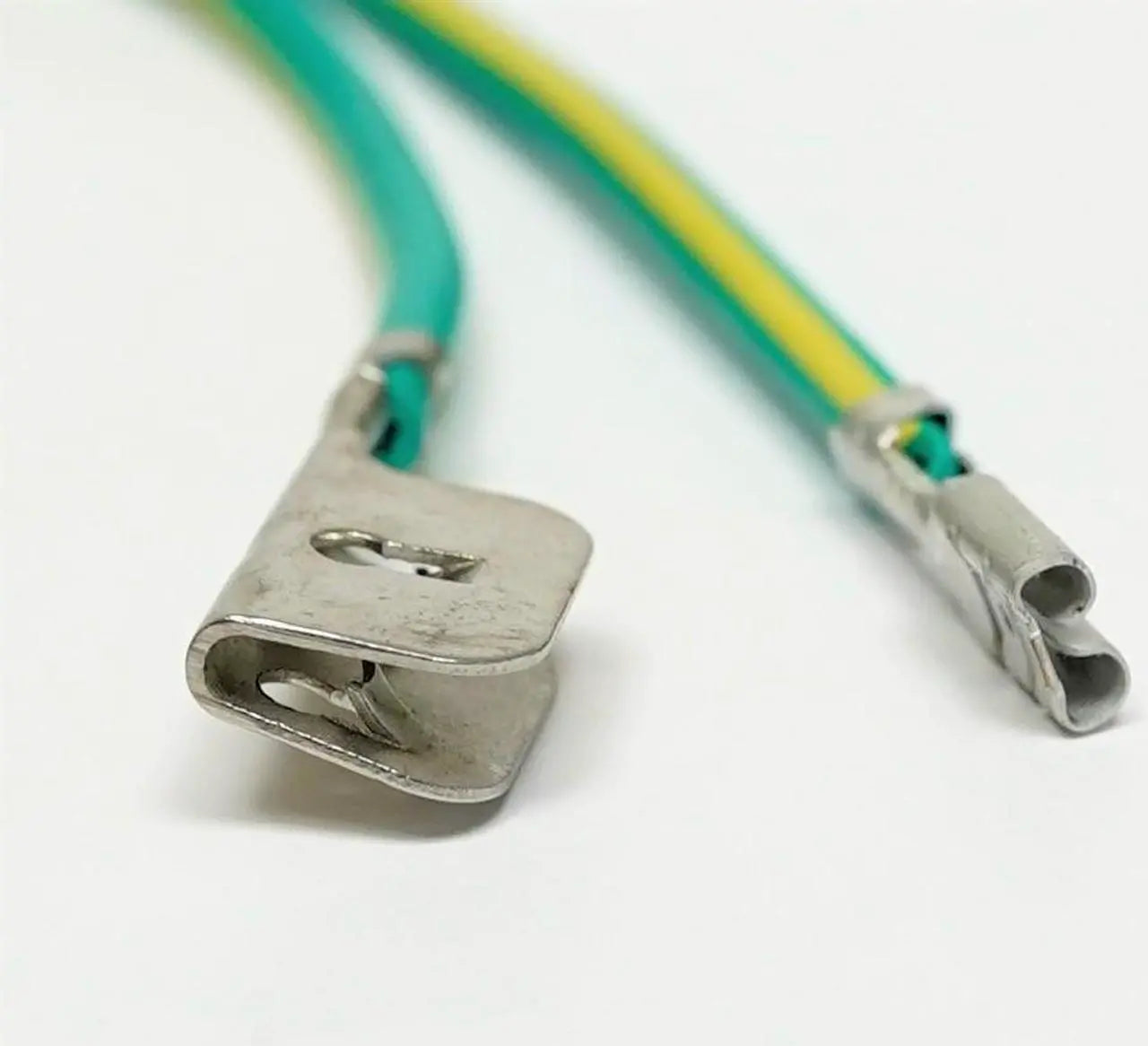

• Mechanical: 1/8 inch shaft, hexagon ends, three-terminal hookup (two 1/4 inch, one 3/16 inch); includes mounting bracket, wire harness and ground wire
• Compatibility: Direct replacement for multiple OEM numbers (including 1174059, 12002744, 67003917, 67006515) and fits Whirlpool, Maytag, Amana, Jenn-Air, Kenmore, Magic Chef models

Product Highlights

Direct replacement evaporator/freezer fan motor; 120V, 3000 RPM; 1/8 inch shaft with three-terminal hookup; includes mounting bracket, wire harness and ground wire.

Product Information

Standard Information

• Brand: CHOICE MANUFACTURED PARTS
• Manufacturer Part Number: 12002744
• Country of Origin: China

Technical Specifications

• Brand: Choice Manufactured Parts
• Manufacturer: Choice Manufactured Parts
• Manufacturer Part Number: 12002744
• Model: 12002744CM
• Type: Evaporator freezer fan motor
• Input Voltage: 120V
• Frequency: 60Hz
• Output Current: 0.14A (see notes)
• Power: 4.6W (see notes)
• Speed (RPM): 3000 RPM
• Shaft Diameter: 1/8 inch

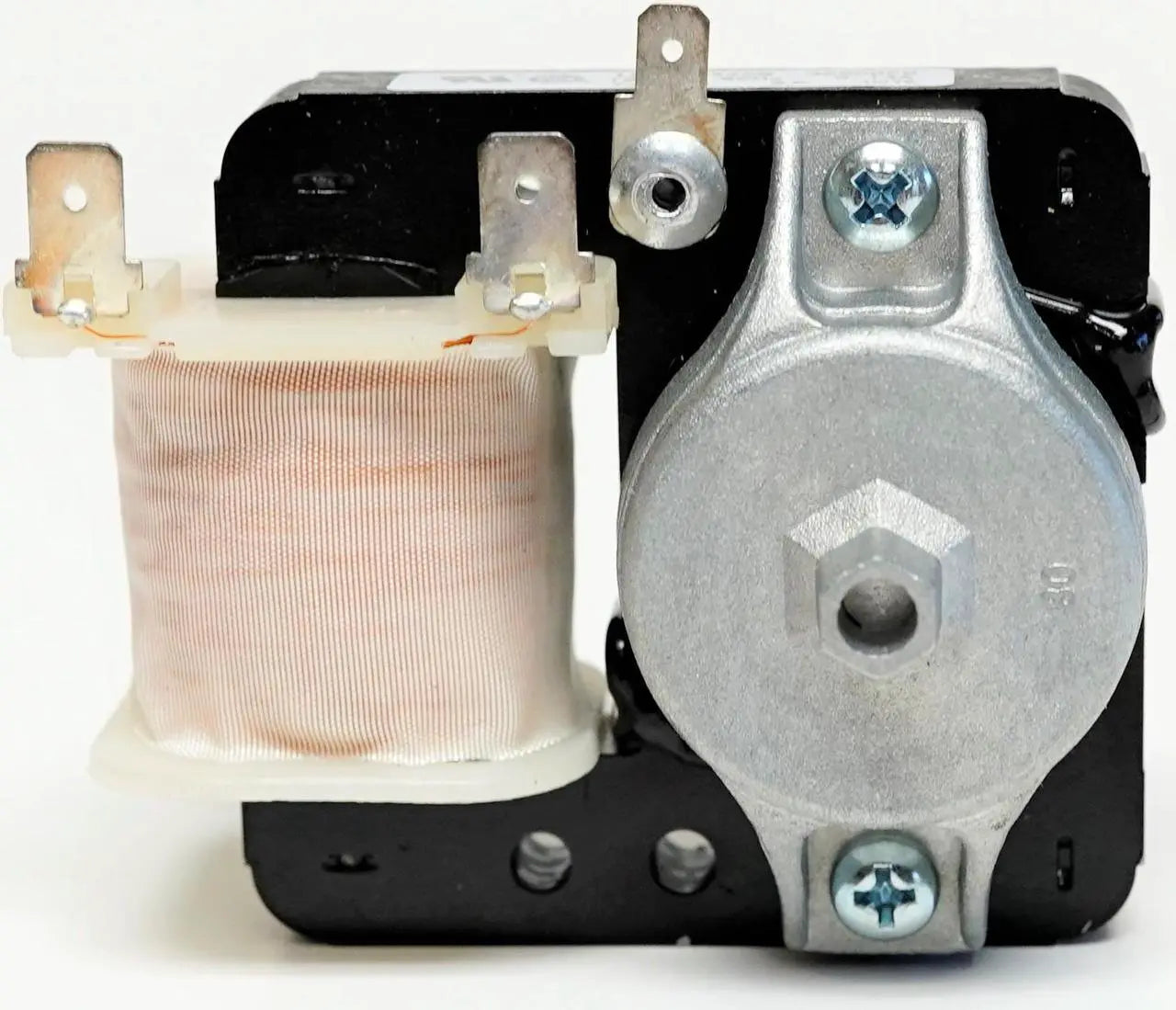

• Terminal Hookup: 3 terminals (two 1/4 inch, one 3/16 inch)
• End Shape: Hexagon on both ends

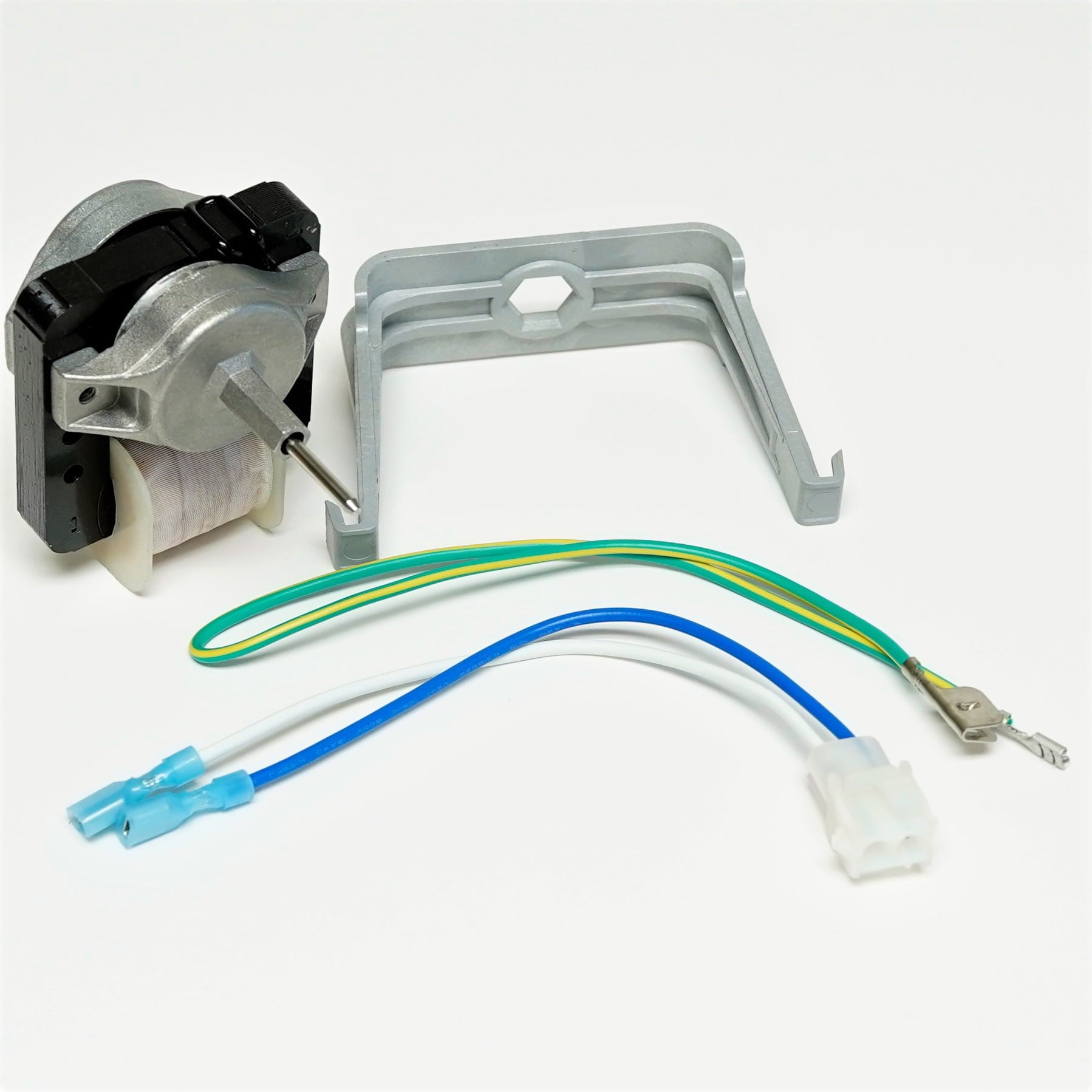

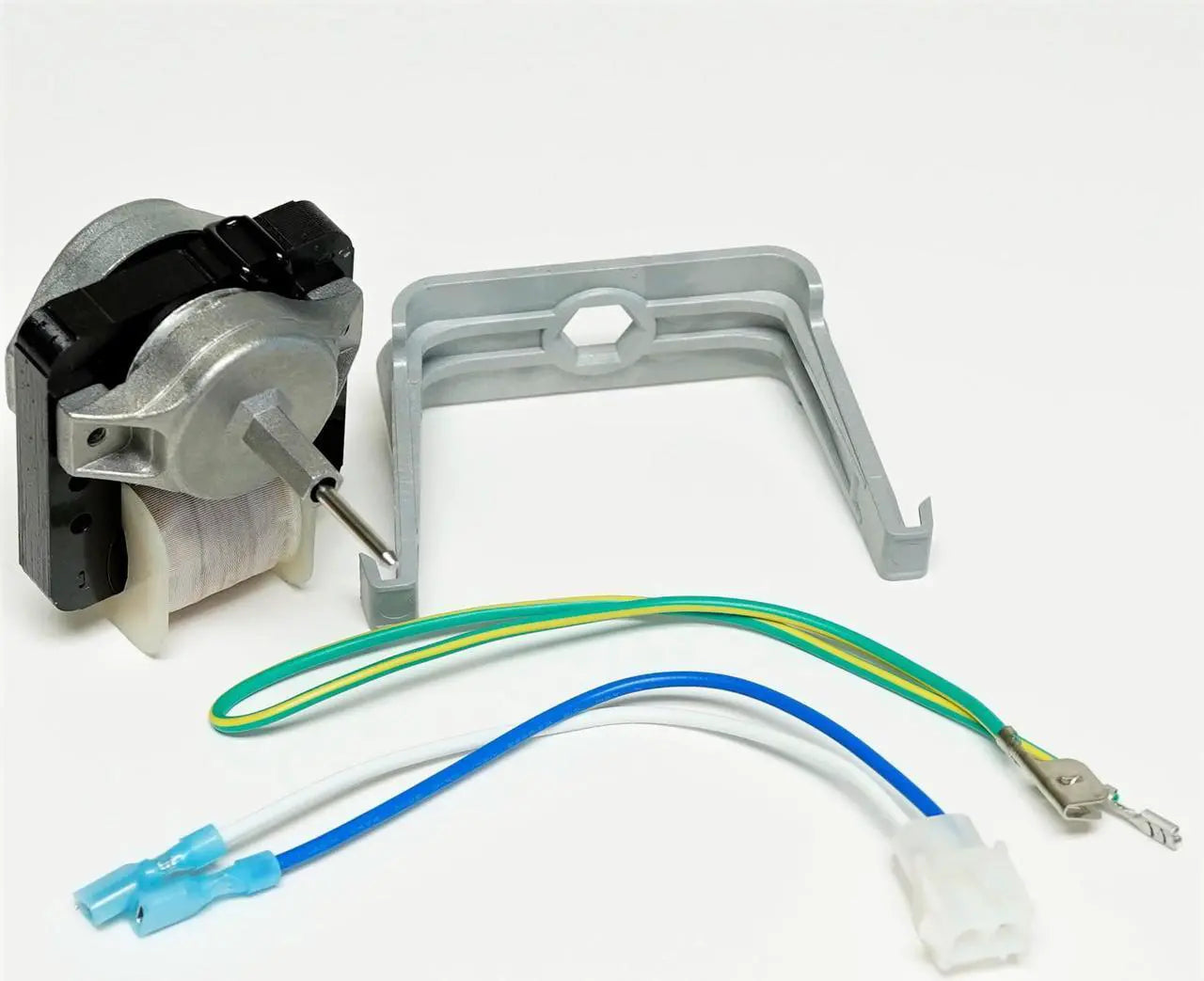

• Includes: Mounting bracket, wire harness, ground wire
• Replaces: 1174059; 12002744; 67003917; 67006515; AH2004031; AP4009649; EA2004031; PS2004031; TJ12002744
• Compatible Brands: Whirlpool; Maytag; Amana; Jenn-Air; Kenmore; Magic Chef
• Product Dimensions: 4 in W x 4.5 in H (depth not specified)
• Weight: 1 Pounds
• UPC: 810032861254
• Country of Origin: China
• Condition: New
• Number of Items: 1
• Power Source: Electric
• Installation: DIY
