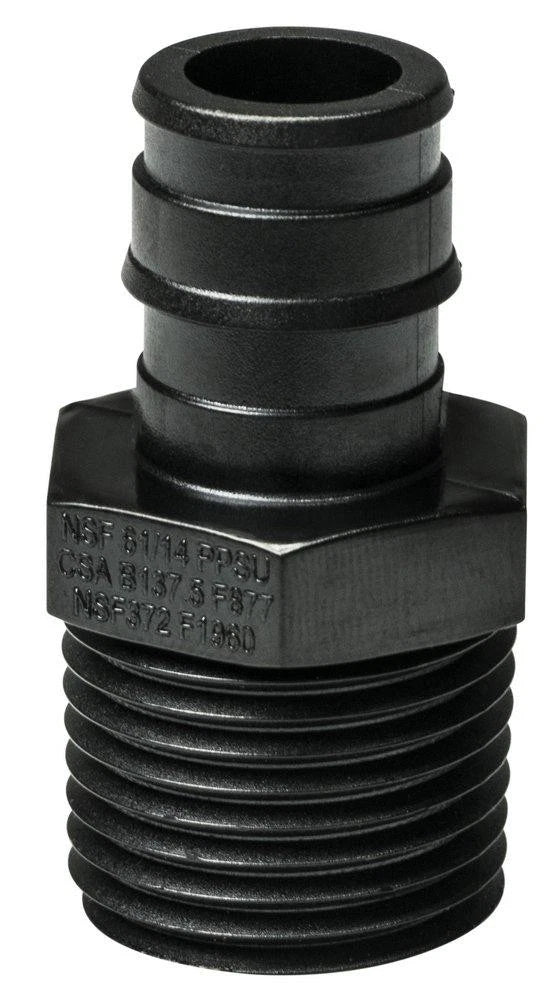

CHIEF 646WP2 PowerPEX Straight Adapter - 1/2 Inch MNPT x F1960 PEX Grip

Product Description

The CHIEF 646WP2 PowerPEX straight adapter connects 1/2 inch MNPT to F1960 PEX Grip tubing. Made from polymer through a peroxide/silane graft process, this component is compatible with PEX-A or PEX-B tubing. It operates at a working pressure of one hundred psi and a maximum temperature of one hundred eighty degrees Fahrenheit. The adapter measures one point six four inches in length.

• 1/2 inch MNPT x F1960 PEX Grip end style
• Complies with ASTM F876, F877, F1807, F2080, and F2159 standards
• Designed for PEX expansion systems

Product Highlights

This adapter provides a reliable connection in plumbing systems, ensuring safety and durability in various applications.

Product Information

Standard Information

• Type: Straight
• Nominal Size: 1/2 Inch

Technical Specifications

• End Style: MNPT x F1960 PEX Grip
• Length: 1.64 Inch
• Working Pressure: 100 psi
• Method of Manufacture: Peroxide/Silane Graft
• Material: Polymer
• Industry Standards: ASTM F876, F877, F1807, F2080, F2159
• Temperature Rating: 180 deg F
• Dimensions: 1/2 Inch W
• Warranty: 25 Years
