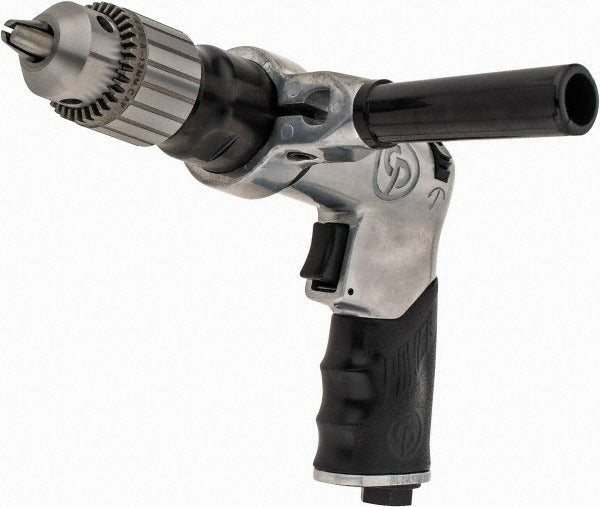

Chicago Pneumatic T025165 Air Drill 1/2 Inch Keyed Chuck

Product Description

The CHICAGO PNEUMATIC T025165 is a reversible pneumatic drill built for professional trade use in industrial, mechanical, and construction environments. It features a 1/2 inch keyed chuck and a pistol grip handle, delivering 500 RPM and 0.5 horsepower at 90 psi operating pressure. Air consumption runs at 7.50 CFM, making it compatible with standard shop compressor setups. At 4.3 pounds and 8 inches in overall length, it is compact enough for confined work areas without sacrificing torque output, rated at 15.60 ft/lb. Licensed mechanics, millwrights, pipefitters, and general contractors rely on this class of tool for drilling, driving, and reaming tasks where consistent speed control matters.

This air drill is suited for residential and commercial job sites, fabrication shops, and maintenance facilities. The reversible function allows both forward and reverse rotation, supporting screw driving and removal applications in addition to standard drilling. The 1/4 inch NPTF air inlet connects directly to standard compressed air lines. The pistol grip handle provides stable one-handed operation during overhead or angled drilling. An air hose is included with the unit.

Key Features

• 1/2 inch keyed chuck accepts a wide range of standard drill bits and accessories
• Reversible rotation for both drilling and fastener removal
• 500 RPM free speed with 15.60 ft/lb torque output
• 0.5 hp motor operates at 90 psi with 7.50 CFM air consumption
• Pistol grip handle for controlled, stable operation
• Compact 8 inch overall length and 4.3 pound weight for maneuverability in tight spaces

Compatibility

Designed as an OEM-style pneumatic drill for use with standard shop air compressor systems supplying 90 psi through a 1/4 inch NPTF air line connection.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tool safety practices. Before connecting or disconnecting the air line, shut off the compressed air supply and bleed the line to relieve pressure. Ensure the air supply meets the required 90 psi operating pressure and that the air hose and fittings are rated for the working pressure in use. Follow applicable OSHA and facility safety guidelines for pneumatic tool operation.
