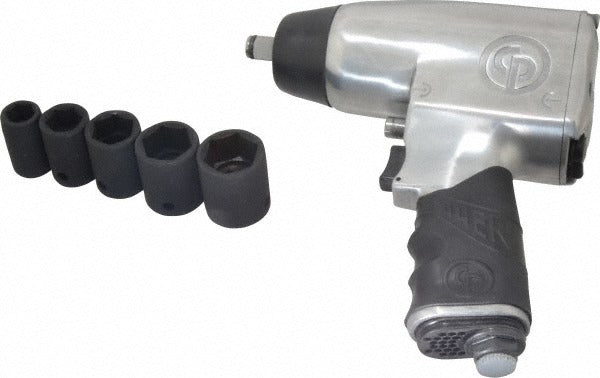

Chicago Pneumatic T025163 1/2 in Air Impact Wrench 200 Ft/lb

Product Description

The CHICAGO PNEUMATIC T025163 is a pistol-grip pneumatic impact wrench built for general maintenance and production work. Driven by shop air at 90 psi, it spins a 1/2 inch square drive at up to 8,400 RPM and delivers 200 ft/lb of torque, with a hammering rate of 1,020 blows per minute. The 1/4 inch NPTF air inlet accepts standard shop-air fittings and requires 12 CFM at rated pressure. At 7.5 inches in overall length and 8 pounds, it is compact enough for tight engine bays and undercarriage work without sacrificing output. A friction ring retainer secures sockets positively during use. This tool is appropriate for automotive service, fleet maintenance, and light industrial assembly lines where a reliable, mid-torque 1/2 inch drive impact is the right call.

This impact wrench is designed for general maintenance applications across automotive, fleet, and light industrial environments. Typical use cases include lug nut removal, suspension fasteners, and general chassis work where air supply is readily available. The pistol grip configuration gives the technician a natural wrist angle during extended overhead or underbody operation. It is sized for bolts up to 9/16 inch capacity as rated by the manufacturer.

Key Features

• 1/2 inch square drive with friction ring socket retainer
• 200 ft/lb torque output at 90 psi operating pressure
• 8,400 RPM free speed with 1,020 impacts per minute
• 1/4 inch NPTF inlet, compatible with standard shop-air quick-connect fittings
• Compact 7.5 inch overall length suits confined work spaces
• Pistol grip handle for natural wrist angle during sustained use

Compatibility

Designed as a general-purpose 1/2 inch drive pneumatic impact wrench for automotive service, fleet maintenance, and light industrial applications. Rated for fasteners up to 9/16 inch bolt capacity.

Installation Notes

Installation and operation should be performed by a qualified technician or mechanic familiar with pneumatic tooling. Before connecting to an air supply, verify the line pressure does not exceed the 90 psi rated operating pressure and that the air supply is clean and dry. Always disconnect the air line before changing sockets or performing any service on the tool. Eye protection and hearing protection are recommended during operation given the 104 dB sound rating.
