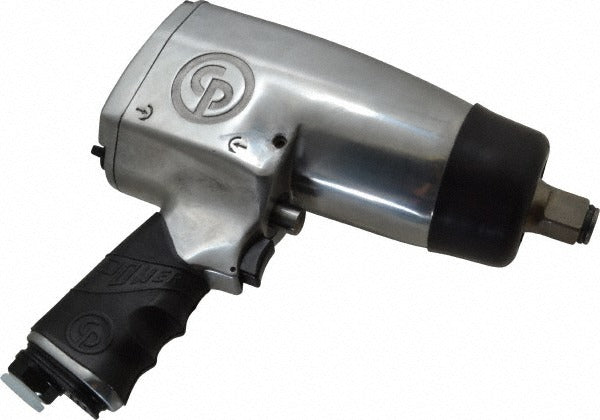

Chicago Pneumatic T024598 3/4 in Air Impact Wrench 200 Ft/lb

Product Description

The CHICAGO PNEUMATIC T024598 is a 3/4 inch drive pneumatic impact wrench designed for heavy-duty fastening applications in automotive, fleet, and industrial service environments. It delivers up to 200 ft/lb of torque at a free speed of 4,200 RPM and 900 impacts per minute, providing the power output needed for lug nuts, suspension components, and large fasteners. The pistol grip handle supports controlled one-handed operation during extended use. Air consumption runs at 12 CFM at 90 psi, which requires a compressor and air supply line sized appropriately for sustained operation. A friction ring retainer secures the socket on the anvil during use.

This impact wrench is suited for automotive repair shops, fleet maintenance bays, heavy equipment service, and general industrial maintenance. The 3/4 inch drive size targets larger fasteners up to 1-1/8 inch bolt capacity, making it appropriate for wheel service on commercial vehicles, agricultural equipment, and industrial machinery. It is operated by licensed mechanics, journeymen, and experienced service technicians working in environments with a regulated compressed air supply.

Key Features

• 3/4 inch drive with friction ring retainer for secure socket retention
• 200 ft/lb maximum torque output for heavy fastener applications
• 4,200 RPM free speed with 900 impacts per minute
• Pistol grip handle for controlled one-handed operation
• 3/8 inch NPTF air inlet compatible with standard shop air fittings
• 1-1/8 inch maximum bolt capacity

Compatibility

Designed as a direct-use pneumatic impact wrench accepting standard 3/4 inch drive impact sockets; requires a compressed air supply delivering at least 12 CFM at 90 psi through a 3/8 inch NPTF inlet connection.

Installation Notes

Connection and operation should be performed by a qualified mechanic or service technician familiar with pneumatic tool safety practices. Ensure the air supply is regulated to the specified 90 psi and that the supply line and fittings are rated for the required CFM before connecting the tool. Always disconnect the air supply before changing sockets or performing any inspection of the tool. Note that the decibel rating of 107 dB requires appropriate hearing protection per applicable workplace safety regulations.
