Chicago Pneumatic T011970 Air Engraving Pen Kit

Product Description

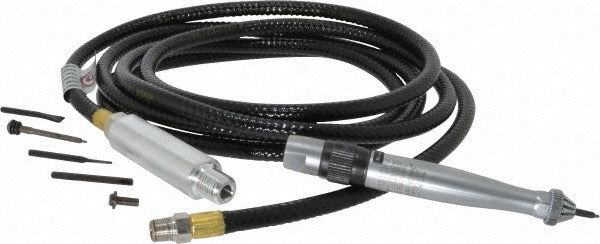

The CHICAGO PNEUMATIC T011970 is a pneumatic air engraving pen kit designed for metal marking, engraving, and light chiseling work. The kit delivers up to 13,500 blows per minute (BPM) at a rated operating pressure of 90 psi through a 1/4 inch NPT inlet. The pen body measures 5.0 inches in length, providing a compact grip suited to detailed work. It ships complete with all accessories needed to begin work immediately, including a hose, filter, stylus, anvil, three chisels, and a carry case. This tool is used by machinists, metalworkers, fabricators, and maintenance technicians for part identification and surface marking.

The T011970 kit is suited for bench work and field service applications where pneumatic supply is available. The included 8-foot hose gives the operator working distance from the air source without an additional whip line. Adjustable power output allows the operator to dial in stroke force for different materials and marking depths. The carry case keeps all components organized for tool crib storage or mobile service use.

Key Features

• 13,500 BPM stroke rate for fast, consistent engraving and marking
• Adjustable power output for variable material hardness
• 5.0 inch pen body length for comfortable, controlled grip
• 1/4 inch NPT inlet compatible with standard shop air fittings
• Includes 8-foot hose, filter, stylus, anvil, three chisels, and carry case — no additional accessories required out of box
• Lightweight design at 0.5 pounds for reduced hand fatigue during extended use

Compatibility

Designed as an OEM-style pneumatic engraving pen kit for use with standard compressed air systems supplying clean, dry air at or near 90 psi through a 1/4 inch NPT connection.

Installation Notes

Connection to the air supply should be made by a qualified technician familiar with pneumatic tool hookup. Shut off and bleed the air line before attaching or detaching the tool. Ensure the inline filter supplied with the kit is installed between the hose and air source to protect the internal mechanism from moisture and debris. Do not exceed the rated operating pressure of 90 psi.
