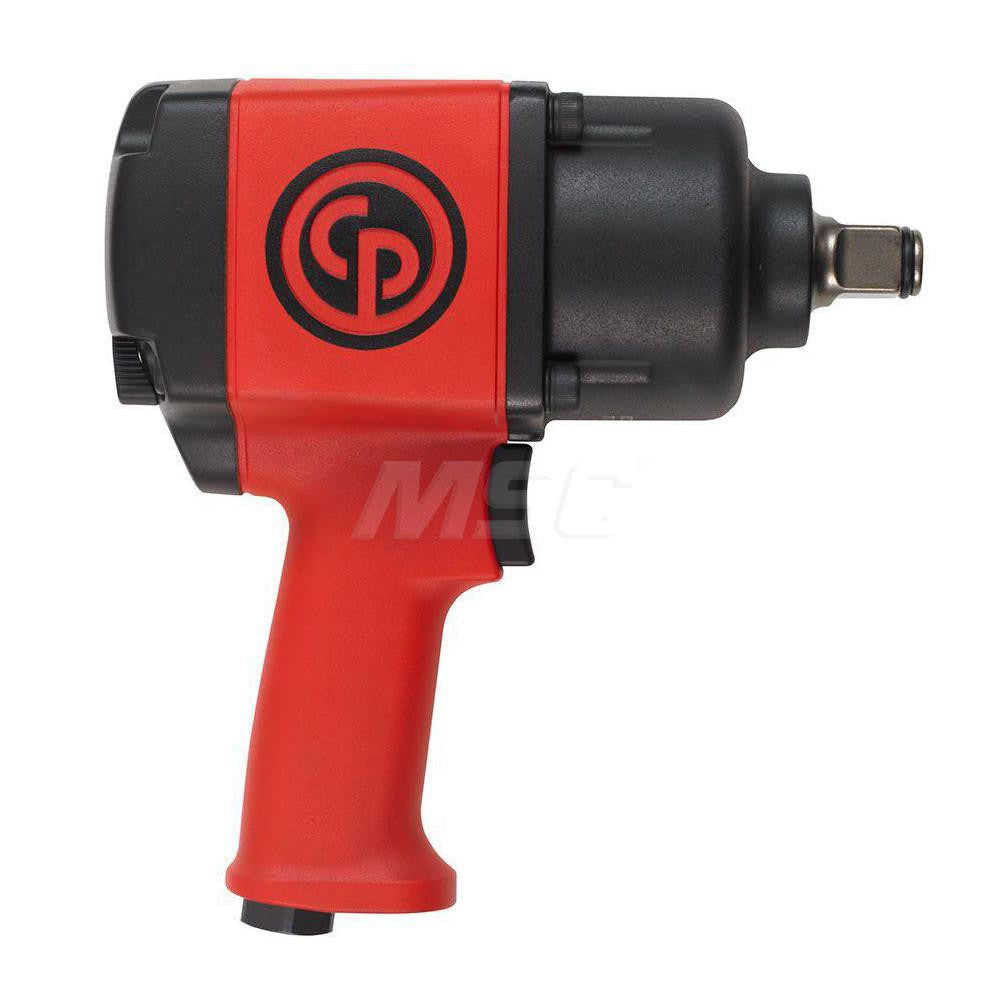

Chicago Pneumatic 8941077630 Air Impact Wrench 3/4 in

Product Description

The CHICAGO PNEUMATIC 8941077630 is a 3/4 inch drive pneumatic impact wrench built for heavy-duty fastening in automotive, fleet, and industrial maintenance environments. Delivering up to 1,200 ft/lb of torque at 6,300 RPM, it handles high-torque fastener removal and installation that lighter 1/2 inch drive tools cannot manage. Air consumption is 7.5 CFM at 90 psi, which places it in the range of standard shop compressors commonly found in professional service bays. The pistol grip handle provides familiar ergonomics for technicians working on trucks, heavy equipment, and large-bore assemblies. A friction ring retainer secures sockets reliably under repeated impact cycles.

This wrench is suited for professional shops and field service applications requiring consistent high-torque output on larger fasteners. Typical use cases include lug nut removal on commercial vehicles, suspension and drivetrain work, and general industrial maintenance tasks where 7/8 inch bolt capacity covers the majority of fastener sizes encountered. The 3/8 inch NPTF inlet connects to standard shop air lines without adapters in most configurations.

Key Features

• 3/4 inch drive with friction ring retainer for secure socket retention
• 1,200 ft/lb maximum torque output at 6,300 RPM
• 7/8 inch bolt capacity covers common heavy-duty fastener sizes
• 7.5 CFM air consumption at 90 psi compatible with typical shop compressors
• 900 blows per minute with 850 impacts per minute for rapid fastener cycling
• Pistol grip handle designed for comfort during general maintenance tasks

Compatibility

Designed as a direct-use pneumatic impact wrench for 3/4 inch drive sockets in professional automotive, fleet, and industrial maintenance applications. Requires a shop air supply capable of delivering 90 psi and at least 7.5 CFM at the tool inlet.

Installation Notes

Installation and operation should be performed by qualified technicians familiar with pneumatic tool safety. Before connecting to an air supply, verify the line pressure does not exceed the rated 90 psi maximum at the tool inlet. Ensure the air line is fitted with a properly sized inline filter-regulator-lubricator to protect internal components and extend service life. Disconnect the air supply before changing sockets or performing any service on the tool.
