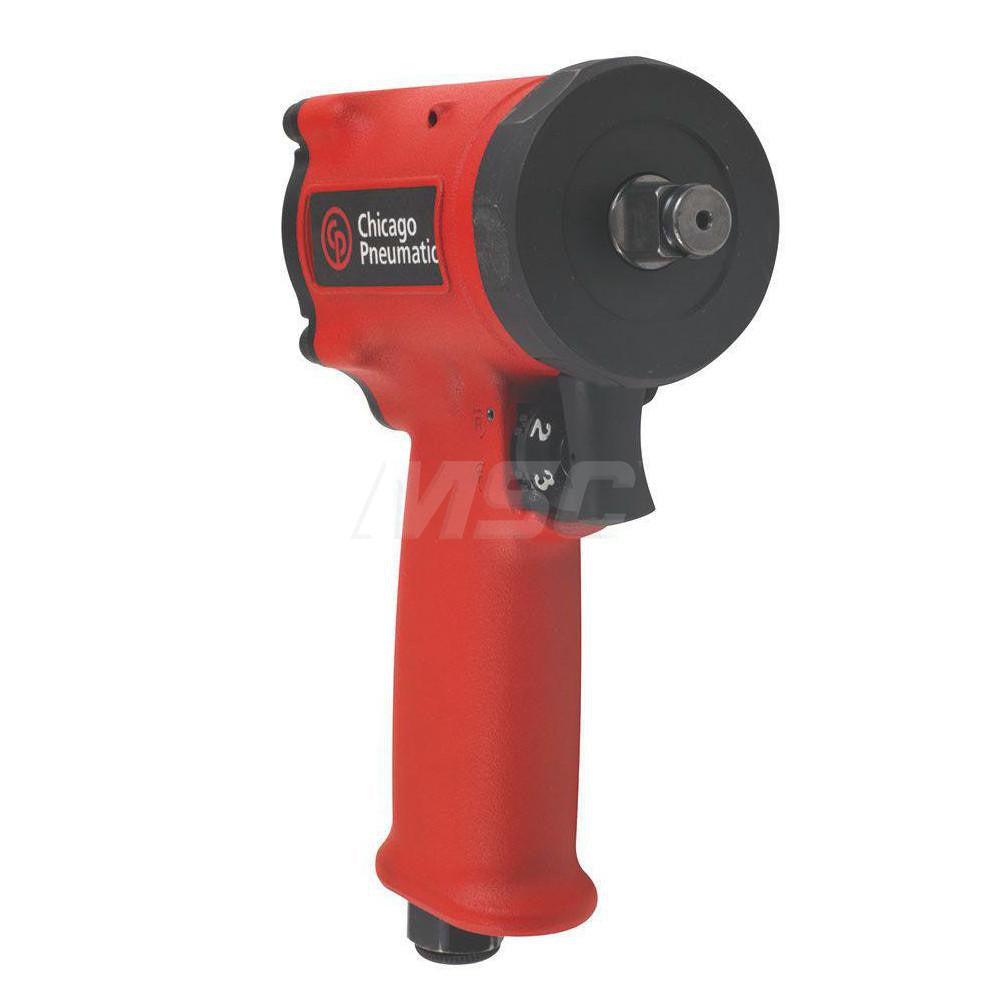

Chicago Pneumatic 8941077320 Air Impact Wrench 1/2 in

Product Description

The CHICAGO PNEUMATIC 8941077320 is a 1/2 inch drive pneumatic impact wrench built for high-output fastening work in automotive, fleet, and industrial service environments. It delivers 450 ft/lb of torque at 9,000 RPM with 1,400 blows per minute, making it capable of driving and removing stubborn fasteners quickly. The compact aluminum body and pistol grip handle keep the tool maneuverable in tight bays and overhead applications. Air consumption runs at 19.6 CFM at 90 psi, so pairing it with an adequately sized compressor and supply line is essential for sustained performance. A friction ring retainer secures the socket. Handle exhaust directs spent air away from the work surface.

This impact wrench is suited for residential and commercial automotive service, heavy equipment maintenance, and general assembly work where a 1/2 inch drive air tool is standard. The ultra-compact tool style makes it practical for underhood and undercarriage work where clearance is limited. It operates on a standard 1/4 inch NPT air inlet and requires a minimum 3/8 inch hose for adequate airflow. Technicians in tire shops, fleet garages, and fabrication facilities will find the combination of torque output and compact dimensions well matched to daily production demands.

Key Features

• 450 ft/lb torque output with 1,400 blows per minute for fast fastener removal and installation
• 9,000 RPM free speed for rapid socket engagement
• Compact aluminum body reduces tool weight and fatigue during extended use
• Pistol grip handle with handle exhaust directs air away from the operator
• Friction ring retainer keeps sockets secured during operation
• 1/4 inch NPTF inlet compatible with standard shop air fittings

Compatibility

Designed as an OEM-style pneumatic impact wrench accepting standard 1/2 inch drive impact sockets and accessories.

Installation Notes

Installation and operation should be performed by a qualified technician familiar with pneumatic tool safety. Before connecting to an air supply, verify the compressor output meets the 90 psi operating pressure and that the supply line is at minimum 3/8 inch diameter to sustain 19.6 CFM demand. Always connect and disconnect the air line with the tool trigger in the unpressed position. Sound levels reach 106 dB during operation, so appropriate hearing protection is required per OSHA guidelines.
