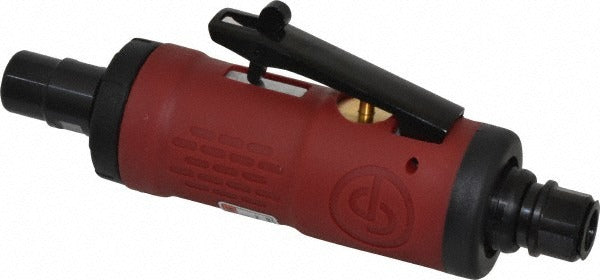

Chicago Pneumatic 8941074050 Air Die Grinder 0.34 Hp

Product Description

The CHICAGO PNEUMATIC 8941074050 is a straight-body pneumatic die grinder built for grinding, deburring, porting, and surface prep work in fabrication, automotive, and industrial maintenance settings. It runs at 28000 RPM and draws 2.7 CFM at 90 psi operating pressure, delivering 0.34 HP from a composite housing that keeps weight down to 1.6 pounds. The comfort grip handle reduces fatigue during extended use. Rear exhaust directs air away from the work surface, keeping the cut area clear. Licensed HVAC technicians, machinists, auto body technicians, and general maintenance professionals are the primary installers and users of this tool.

This die grinder suits light to medium grinding and finishing tasks across residential, commercial, and industrial environments. The straight-style body fits into tight spaces where angle grinders cannot reach. It accepts both 1/4 inch and 6mm collets, giving it compatibility with a wide range of mounted points, carbide burrs, and grinding stones. The 1/4 inch NPT air inlet connects to standard shop air supply lines. At 6.9 inches in overall length, it stays maneuverable in confined work areas.

Key Features

• 28000 RPM free speed for efficient material removal
• Accepts 1/4 inch and 6mm collets for broad accessory compatibility
• Rear exhaust keeps debris and airflow away from the workpiece
• Composite housing reduces overall tool weight to 1.6 pounds
• Comfort grip handle designed for extended-use fatigue reduction
• 87.2 dB sound rating — hearing protection is recommended during operation

Compatibility

Designed as a straight pneumatic die grinder accepting standard 1/4 inch and 6mm shank mounted accessories including carbide burrs, mounted grinding points, and abrasive stones. Connects to any standard 1/4 inch NPT shop air supply.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tool safety practices. Before connecting to the air supply, verify the line pressure does not exceed the rated 90 psi operating pressure and that the supply is filtered and lubricated per tool manufacturer guidance. Disconnect the air supply before changing collets or accessories, and use the included spanner wrench for proper collet tightening. Always wear appropriate PPE including eye protection and hearing protection given the 87.2 dB noise level.
