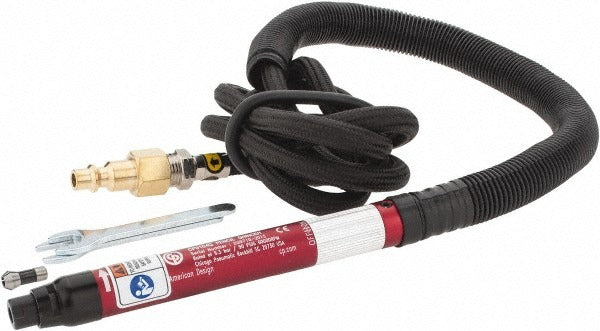

Chicago Pneumatic 6151959104 Air Die Grinder 0.05 Hp

Product Description

The CHICAGO PNEUMATIC 6151959104 is a straight-handle air die grinder built for precision grinding, deburring, and surface finishing in tight spaces. It runs at up to 60,000 RPM on 0.05 HP and is powered by a 1/4 inch air inlet at 90 psi operating pressure. The rear exhaust design directs air away from the work surface, keeping chips and debris clear of the operator. At 0.5 pounds, it is light enough for extended overhead or confined-space work. A silencer hose is included, reducing noise at the exhaust port during operation. This tool is suited for automotive, fabrication, and general maintenance applications.

The 6151959104 is intended for use with a standard shop air supply regulated to 90 psi. Its straight-handle configuration makes it well-suited for accessing ports, welds, and bores where a right-angle grinder cannot reach. The compact 5.25-inch overall length allows work inside housings, castings, and assemblies without interference. Typical users include automotive technicians, machinists, pipefitters, and general maintenance mechanics who need a lightweight, high-speed rotary tool for material removal and finishing work.

Key Features

• 60,000 RPM no-load speed for high-speed material removal and finishing
• Straight-handle design with 5.25-inch overall length for access in confined spaces
• Rear exhaust keeps debris and air blast directed away from the work area
• 1/4 inch air inlet compatible with standard shop air fittings
• Includes silencer hose to reduce exhaust noise during operation
• CE Certified construction meeting applicable safety standards

Compatibility

Designed as a direct-use pneumatic die grinder compatible with standard 1/4 inch NPT air supply lines regulated to 90 psi. No specific model cross-reference data was provided in the input.

Installation Notes

Installation and operation should be performed by a qualified technician familiar with pneumatic tool safety. Disconnect the air supply and bleed line pressure before attaching or removing grinding bits, burrs, or collet tooling. Verify that the air supply is regulated to the rated 90 psi and that the hose and fittings are rated for the operating pressure. Always confirm that mounted accessories are rated for speeds exceeding 60,000 RPM before use.
