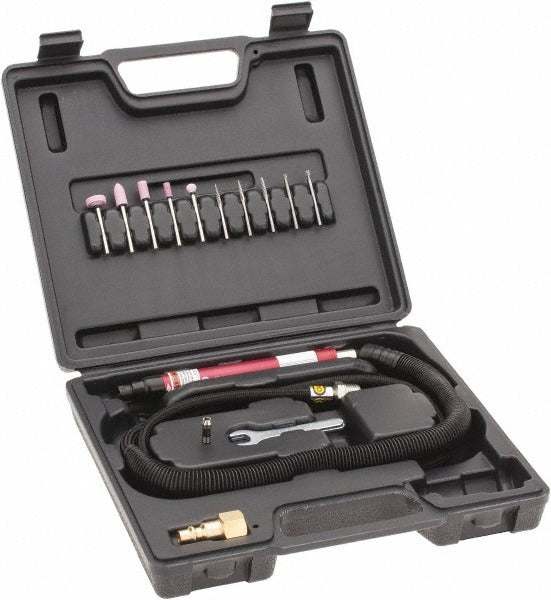

Chicago Pneumatic 6151950104 Pencil Grinder Kit 7 Cfm

Product Description

The CHICAGO PNEUMATIC 6151950104 is an air-powered pencil grinder kit designed for precision grinding, deburring, porting, and surface finishing work. Running at 60,000 RPM no-load speed and consuming 7 CFM at 90 psi, this tool delivers consistent rotary power through a compact, pencil-style body measuring 5.2 inches in overall length. The kit includes collets for both 1/8 inch and 3mm shanks, along with five carbide burrs and five mounted points, making it ready for immediate use across a variety of material removal tasks. Rear exhaust directs spent air away from the work surface. Rated at 0.05 horsepower, it is suited for light precision work in fabrication, tool-and-die, and maintenance applications.

This pencil grinder kit is intended for use by machinists, maintenance technicians, fabricators, and industrial tradespeople who require a small-diameter rotary tool for tight-access grinding and finishing. The 3mm collet size and included accessory set make it practical for die work, weld cleanup, and port matching. It connects to a standard air line via a 3/8 inch inside-diameter hose. Operating pressure is 90 psi, which falls within the output range of most shop compressors. The CE certification indicates compliance with applicable European safety standards, making this unit suitable for both domestic and international shop environments.

Key Features

• 60,000 RPM no-load speed for high-speed precision material removal
• Kit includes five carbide burrs and five mounted points for immediate use
• Accepts both 1/8 inch and 3mm shank accessories via included collets
• Rear exhaust keeps airflow away from the workpiece and operator
• Compact 5.2 inch overall length for access in confined areas
• CE certified for compliance with applicable safety standards

Compatibility

Designed as an OEM-style pneumatic pencil grinder compatible with standard shop air systems supplying 90 psi at a minimum of 7 CFM through a 3/8 inch inside-diameter air hose.

Installation Notes

Installation and operation of this pneumatic tool should be performed by qualified technicians familiar with compressed air systems and rotary tool safety practices. Shut off and bleed the air supply line before connecting or disconnecting the tool. Verify that the air supply does not exceed the rated 90 psi operating pressure. Inspect collets, burrs, and mounted points for wear or damage before each use, and ensure all accessories are fully seated and secured before applying air pressure.
