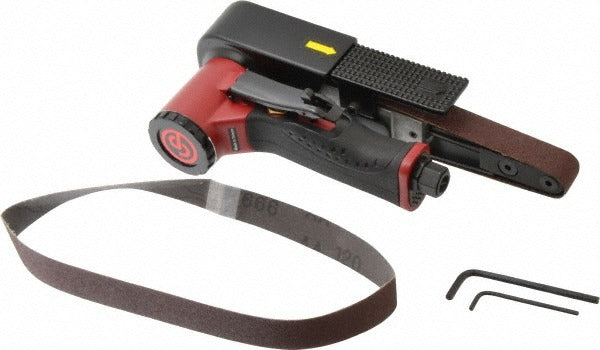

Chicago Pneumatic 6151939780 Air Belt Sander 22000 Rpm

Product Description

The CHICAGO PNEUMATIC 6151939780 is a pneumatic belt sander designed for high-speed material removal in confined workspaces. Running at 22,000 RPM no-load and drawing 14.62 CFM through a 1/4-inch air inlet, it delivers 0.51 horsepower (380 watts) to a 20mm x 520mm abrasive belt. The rubber handle and compact 15-inch overall length make it well-suited for reaching into tight areas where larger tools cannot. Licensed tradespeople and fabricators in metal, auto body, and industrial maintenance use this tool for aggressive stock removal with precise control.

This air belt sander is built for applications including paint removal, weld sanding, surface smoothing, and rust removal in tight or restricted areas. It requires a minimum hose size of 10mm (0.38 inches) and a compressed air supply sized to support 14.62 CFM at the rated inlet. Typical deployment is in metal fabrication shops, welding bays, automotive service, and industrial maintenance environments where an air supply is already on hand and tool weight is a factor during extended use.

Key Features

• 22,000 RPM operating speed for fast material removal
• Compact 20mm x 520mm belt size targets narrow and hard-to-reach surfaces
• 0.51 HP (380W) pneumatic motor with rubber grip handle for operator comfort
• 1/4-inch air inlet with 10mm minimum hose requirement
• Exhaust routed through handle to direct airflow away from the work area
• CE Certified and compliant with EN ISO 11148-8:2011 and California Proposition 65 requirements

Compatibility

Designed for use with standard 20mm x 520mm abrasive belts and compatible with compressed air systems supplying adequate CFM at a 1/4-inch NPT inlet connection.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tool safety. Disconnect and bleed the air supply line before changing belts or performing any maintenance. Verify the compressed air system delivers sufficient volume and pressure to meet the 14.62 CFM air consumption requirement before connecting. Refer to applicable workplace safety standards and the manufacturer documentation for belt tensioning and guard inspection procedures.
