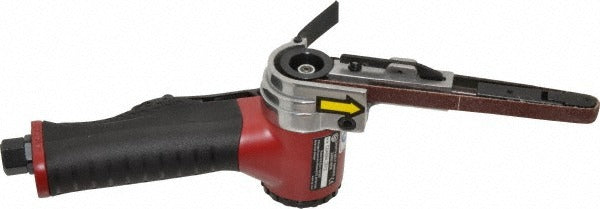

Chicago Pneumatic 6151939779 Air Belt Sander 20000 Rpm

Product Description

The CHICAGO PNEUMATIC 6151939779 is a pneumatic belt sander built for metalworking and surface prep tasks in confined spaces. Powered by compressed air, it runs at a no-load speed of 22000 RPM and an operating speed of 20000 RPM, delivering 0.35 horsepower (260 watts) to a 3/8 inch (10 mm) wide by 13 inch belt. The 1/4 inch air inlet connects to standard shop lines and requires a minimum hose size of 3/8 inch. Air consumption is 13.35 CFM. The rubber handle provides grip in demanding conditions. At 2.2 pounds and 12 inches overall length, it fits into tight work zones where larger tools cannot reach. HVAC fabricators, welders, pipefitters, and maintenance technicians are the primary users.

This belt sander is suited for paint removal, weld sanding, surface smoothing, and rust removal in tight areas where angle grinders or larger sanders cannot maneuver. It is intended for professional trade use in industrial, commercial, and heavy maintenance environments. The compact 12 inch overall length and narrow belt width make it especially effective on pipes, structural members, welds, and tight corner joints. Technicians working in mechanical rooms, fabrication shops, and field maintenance will find the tool useful for rapid surface conditioning before coating or inspection.

Key Features

• 20000 RPM operating speed and 22000 RPM no-load speed for fast material removal
• 3/8 inch wide by 13 inch belt targets narrow and confined work surfaces
• 0.35 horsepower (260 watts) pneumatic motor with 13.35 CFM air consumption
• 1/4 inch air inlet compatible with standard compressed air lines
• Exhaust directed through the handle to keep debris away from the work area
• Rubber handle for secure grip during extended use
• Meets CE, EN ISO 11148-8:2011, and 2006/42/EC standards; California PROP 65 compliant

Compatibility

Designed for use with standard 3/8 inch by 13 inch abrasive belts and compatible with any compressed air system supplying adequate flow through a 3/8 inch or larger hose at a 1/4 inch NPT connection.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tools and applicable workplace safety regulations. Before connecting or disconnecting the tool, depressurize the air line and verify the supply pressure falls within the tool manufacturer's rated range. Ensure the minimum hose size of 3/8 inch is used to maintain adequate CFM delivery. Wear appropriate PPE including eye protection and hearing protection during operation, and verify belt condition and proper seating before each use.
