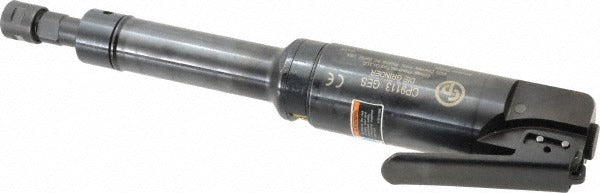

Chicago Pneumatic 6151602070 Air Die Grinder 1HP 25000RPM

Product Description

The CHICAGO PNEUMATIC 6151602070 is a straight air die grinder designed for metal grinding, deburring, porting, and surface finishing in professional shop and industrial environments. It runs at 25,000 RPM with 1.00 horsepower and draws 31.79 CFM at 90 psi operating pressure. The lever throttle gives the operator precise speed control during extended use. Side exhaust redirects airflow away from the work surface, keeping debris and coolant out of the operator's line of sight. The steel housing is built to handle the daily wear of a production or maintenance shop. Licensed trades and industrial machinists are the primary installers and users of this tool.

This die grinder is suited for use in automotive, aerospace, fabrication, and general metalworking applications where a 1/4 inch collet is the standard tooling interface. The straight handle geometry allows access to ports, bores, and recessed surfaces that angle grinders cannot reach. At 12.6 inches in overall length and 3 pounds, it is sized for single-hand operation over long work cycles. It carries CE certification, making it appropriate for job sites and facilities that require conformance to European safety standards.

Key Features

• 25,000 RPM free speed for high-material-removal grinding and finishing
• 1.00 HP output with 31.79 CFM air consumption at 90 psi
• 1/4 inch collet accepts standard die grinder burrs, mounted points, and carbide bits
• Lever throttle for variable speed control and operator fatigue reduction
• Side exhaust directs airflow away from the work area
• Steel housing construction for durability in production environments
• CE certified to meet international safety requirements

Compatibility

Designed for use with standard 1/4 inch shank grinding burrs, carbide rotary files, mounted abrasive points, and similar rotary tooling. Requires a compressed air supply capable of delivering 90 psi and sufficient volume to sustain 31.79 CFM during operation.

Installation Notes

Installation and operation of pneumatic die grinders should be performed by qualified technicians familiar with compressed air tool safety. Always depressurize and disconnect the air supply before changing collet tooling. Verify that the air line, fittings, and regulator are rated for the required operating pressure before connecting the tool. Wear appropriate PPE including eye protection and hearing protection, as the tool produces 83 decibels during operation.
