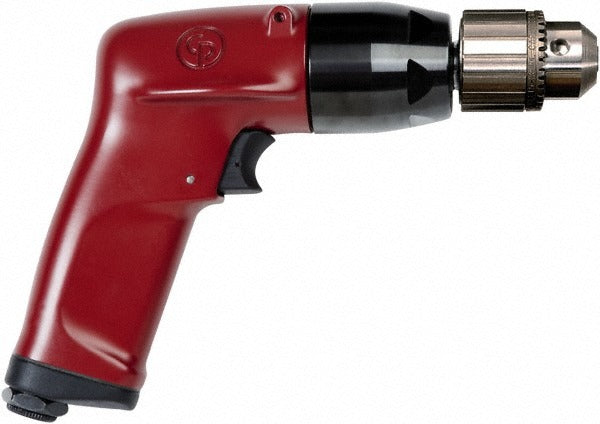

Chicago Pneumatic 6151580110 3/8 in Keyed Chuck Air Drill

Product Description

The CHICAGO PNEUMATIC 6151580110 is a pistol-grip pneumatic drill built for sustained use in trade and industrial environments. It accepts a 3/8 inch keyed chuck and delivers 3,200 RPM at 90 psi operating pressure, powered by a 1 HP motor. The drill draws 7.45 CFM of air through a 1/4 inch NPT inlet and exhausts through the handle, keeping debris clear of the work surface. At 3.5 pounds, it is light enough for extended overhead or tight-clearance work. Licensed HVAC technicians, plumbers, electricians, and millwrights reach for this tool when production-rate drilling is required and air supply is already on site.

This drill suits residential and light commercial job sites where a compressor-fed tool is preferred over a corded or battery-powered unit. Typical applications include drilling through sheet metal, wood framing, plastic conduit trays, and light structural steel during mechanical, electrical, and plumbing rough-in work. The pistol grip provides a stable, single-hand hold in standard upright drilling positions. Because the drill is non-reversible, it is intended for forward-only drilling rather than fastener removal.

Key Features

• 3/8 inch keyed chuck accepts a wide range of standard drill bits
• 3,200 RPM free speed for fast material penetration
• 1 HP motor at 90 psi standard shop-air pressure
• 1/4 inch NPT inlet compatible with common quick-connect fittings
• Handle exhaust directs spent air away from the operator and work surface
• Lightweight 3.5 pound body reduces fatigue during extended use

Compatibility

Designed for use with standard 90 psi compressed-air systems equipped with a 1/4 inch NPT supply line; an air hose is included. Compatible with any 3/8 inch keyed drill bit or chuck-mount accessory.

Installation Notes

A licensed or qualified tradesperson should confirm that the compressor supply line is rated for at least 90 psi and delivers a sustained 7.45 CFM before connecting this tool. Depressurize the air line completely before attaching or removing the tool or any accessories. Apply thread sealant appropriate for pneumatic fittings to the 1/4 inch NPT inlet connection. Inspect the air hose and fittings for damage before each use in accordance with tool-safety best practices.
