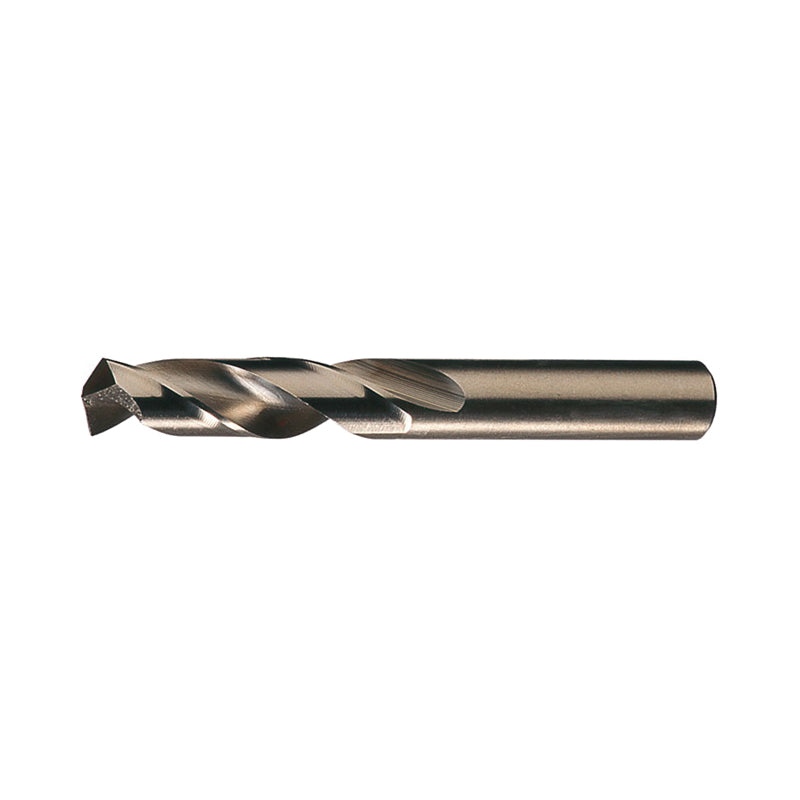

Chicago-Latrobe GREIN-50914CL Chicago-Latrobe 50914 559 Heavy Duty Screw Machine Drill - #59 Drill - Wire - 0.041 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-50914CL is a heavy-duty screw machine drill designed for toughness and precision. This drill features an M42 HSS-Co 8 cutting edge and is suited for a range of applications including alloy steel, carbon steel, and cast iron. It has an overall length of one and three-eighths inches and a drill diameter of zero point zero four one inches.

• Manufactured with high-speed steel for durability
• Three-times diameter cutting depth for effective drilling
• Self-centering split point for reduced thrust

Product Highlights

This drill is optimized for use in heavy feed rates and offers superior rigidity due to its shorter flute and overall length. The straw finish also facilitates easy identification.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50914CL

Technical Specifications

• Drill Size - Wire: #59
• Drill Diameter Measurement System: Imperial
• Flute Type: Right Spiral
• Number of Flutes: 2

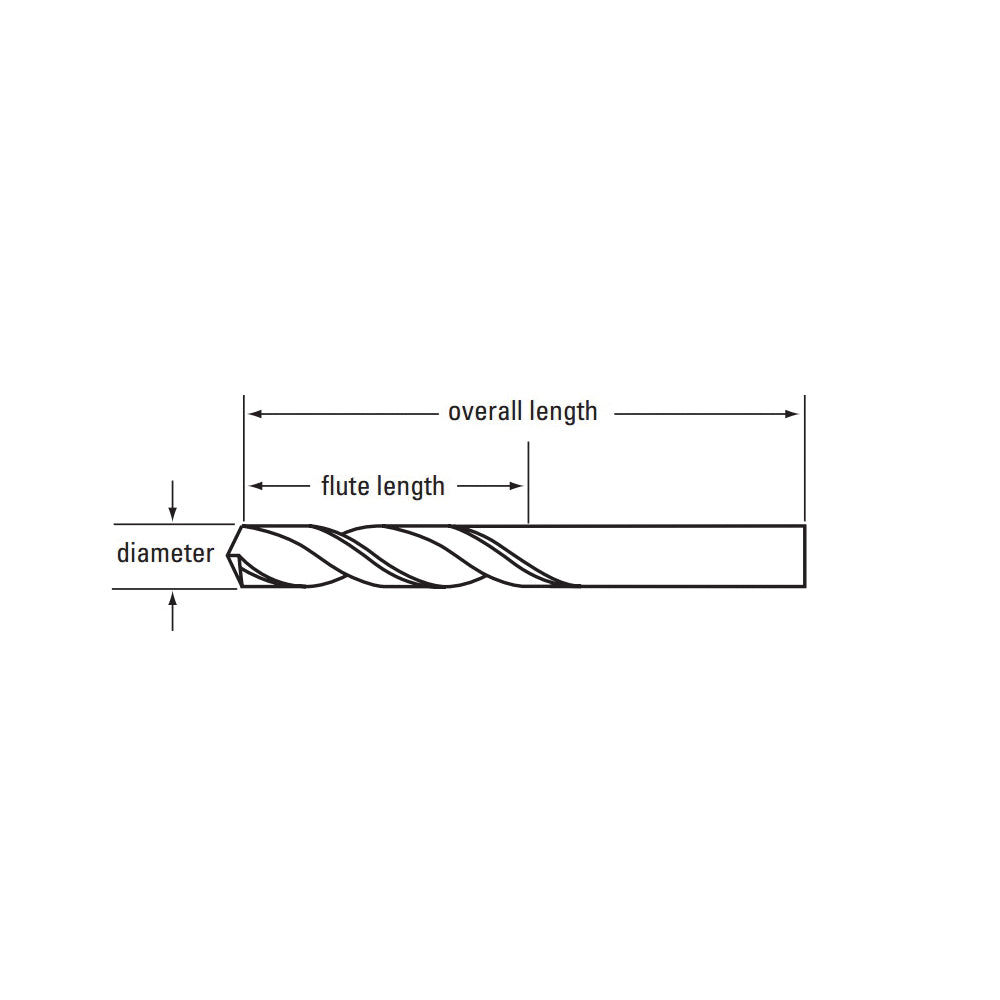

• Flute Length: 1/2 in
• Cutting Depth: 3XD
• Overall Length: 1-3/8 in
• Point Angle: 135 deg
• Shank Size: 0.041 in Dia x 0.875 in L
• Shank Type: Straight
• Cutting Direction: Right Hand
• Material: M42 HSS-Co 8
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
• Type: Heavy Duty
