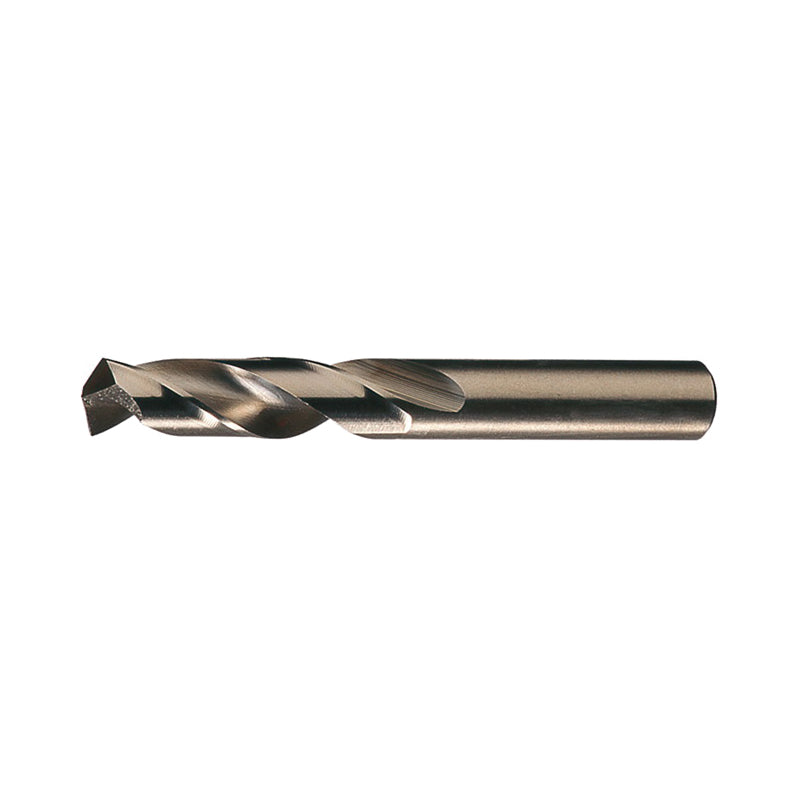

Chicago-Latrobe GREIN-50913CL Chicago-Latrobe® 50913 559 Heavy Duty Screw Machine Drill #58 Drill - Wire 0.042 in Drill - Decimal Inch

Product Description

Chicago-Latrobe® Screw Machine Drill, MPN GREIN-50913CL, is a heavy-duty tool designed for precision drilling. This model features a #58 drill size with a decimal inch measurement of zero point zero four two. It has an overall length of one and three eighths inches and a cutting depth of three times the diameter.

• Heavy-duty design for enhanced durability.
• Two flutes provide better chip removal.
• Suitable for various materials, including alloy and carbon steel.

Product Highlights

This drill is ideal for use in both manual and machine applications. It has a split point that reduces thrust and allows for easier penetration.

Product Information

Standard Information

• Brand: Chicago-Latrobe®
• MPN: GREIN-50913CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Drill Diameter Measurement System: Imperial
• Flute Length: 1/2 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 1-3/8 in
• Point Angle: 135 deg
• Point Type: Split
• Series: 559
• Shank Size: 0.042 in Dia x 0.875 in L
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #58
• Drill Size - Decimal Inch: 0.042 in
• Material: M42 HSS-Co 8
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
