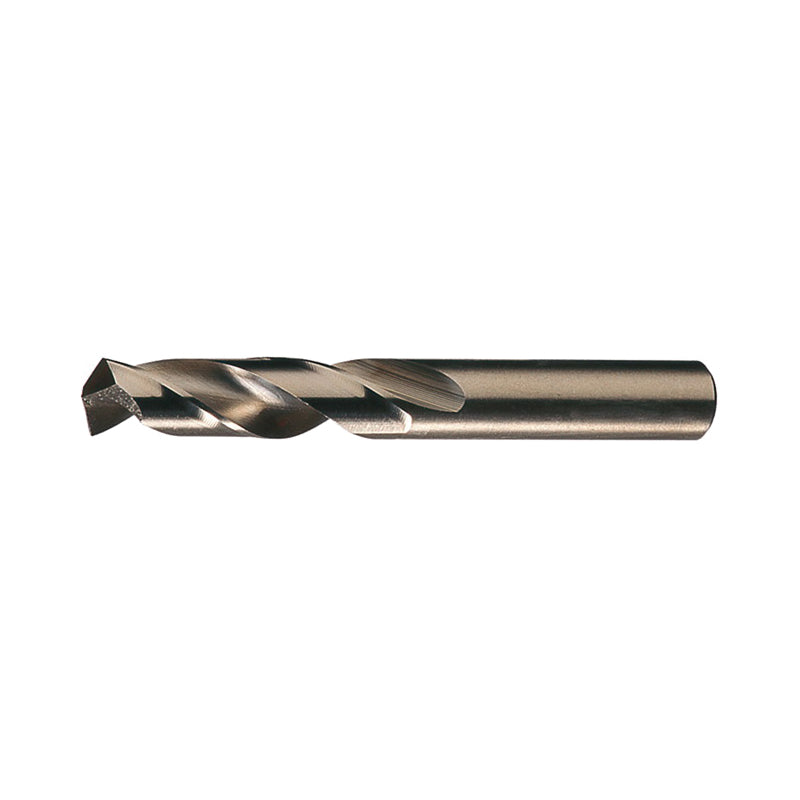

Chicago-Latrobe GREIN-50912CL 50912 559 Heavy Duty Screw Machine Drill #57 Drill - Wire 0.043 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-50912CL is a heavy-duty screw machine drill known for its efficiency. This drill features a #57 wire size and a decimal inch measurement of 0.043. It is designed for rigorous drilling tasks and is suitable for various materials including alloy steel, carbon steel, cast iron, and tool steel.

• Heavy-duty geometry suitable for tough materials
• Shorter flute length for enhanced rigidity
• Self-centering P3 split point for easier penetration

Product Highlights

The drill's design allows for effective use by hand or machine, making it a versatile choice for professionals.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50912CL

Technical Specifications

• Cutting Depth: 3XD

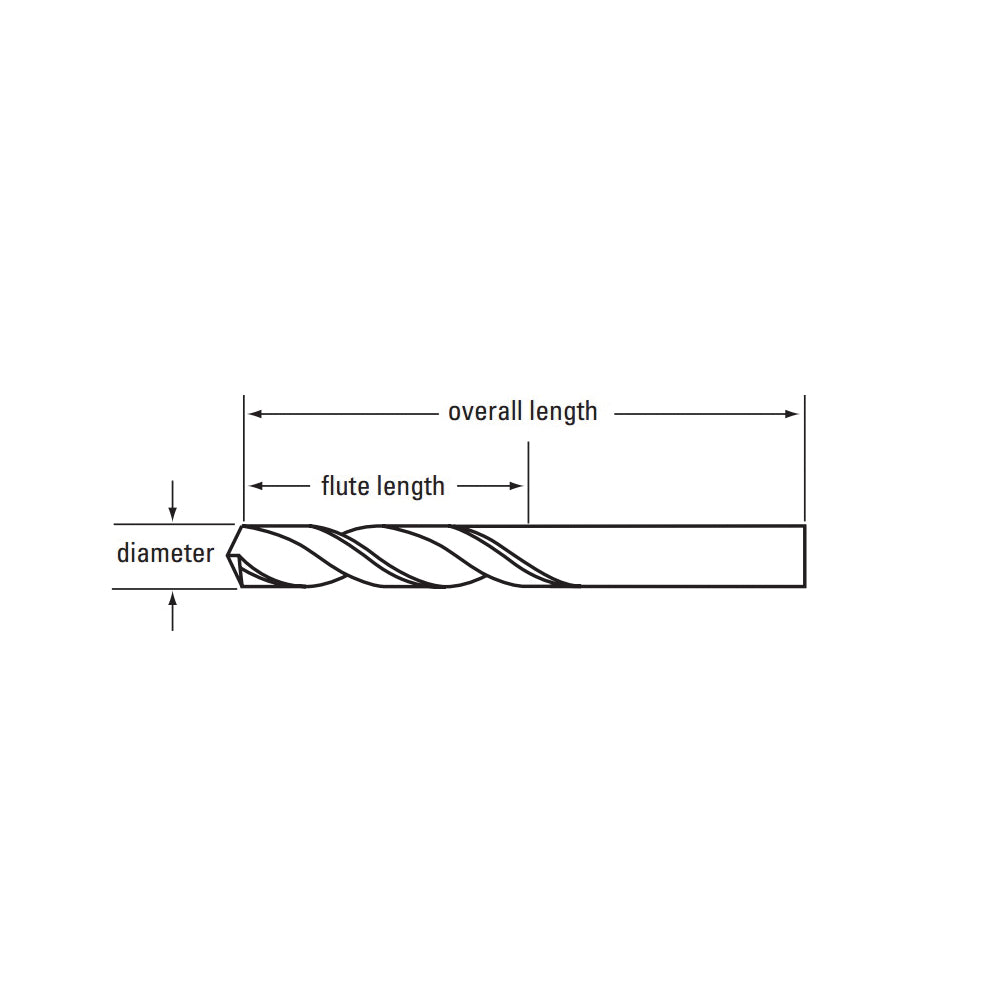

• Overall Length: 1-3/8 inches
• Flute Length: 1/2 inches
• Point Type: Split
• Point Angle: 135 degrees
• Drill Diameter: 0.043 inches
• Shank Size: 0.043 inches Dia x 0.875 inches L
• Material: M42 HSS-Co 8
• Series: 559
• Cutting Direction: Right Hand
• Flute Type: Right Spiral
• Number of Flutes: 2
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
