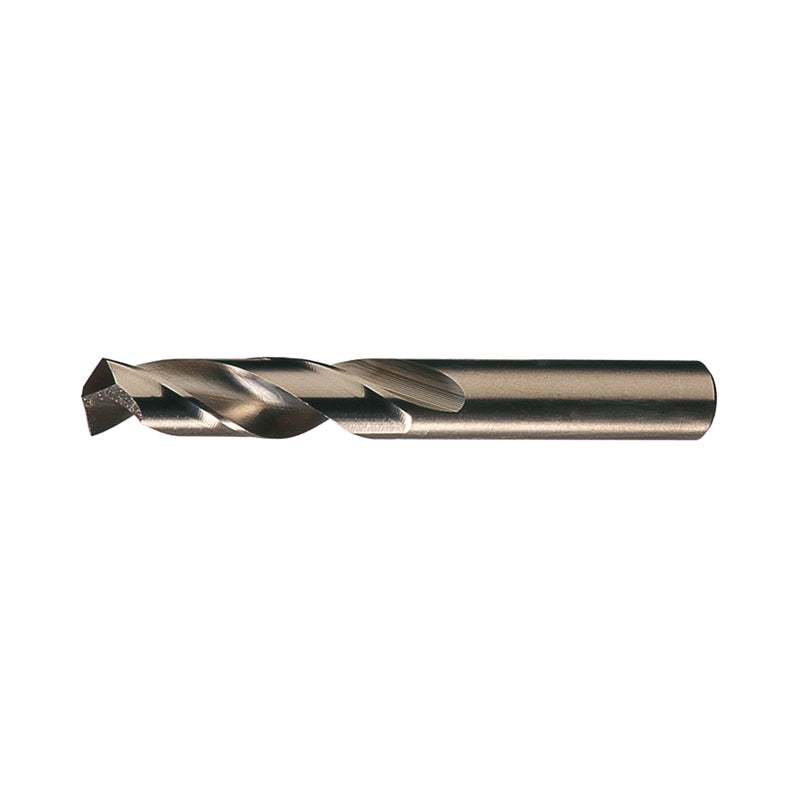

Chicago-Latrobe GREIN-50909CL Chicago-Latrobe® 50909 559 Heavy Duty Screw Machine Drill #54 Drill - Wire 0.055 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe® GREIN-50909CL is a heavy duty screw machine drill designed for various materials. This drill features a #54 wire size with a diameter of zero point zero five five inches and an overall length of one and five-eighths inches.

• Drill material: M42 HSS-Co 8
• Cutting depth: three times drill diameter (3XD)
• Features right hand cutting direction and a split point for enhanced precision

Product Highlights

This drill combines strength and durability suitable for alloy steel, carbon steel, cast iron, and tool steel applications.

Product Information

Standard Information

• Brand: Chicago-Latrobe®
• MPN: GREIN-50909CL

Technical Specifications

• Overall Length: one and five-eighths inches
• Cutting Depth: 3XD
• Number of Flutes: 2
• Flute Length: five-eighths inches
• Drill Diameter Measurement System: Imperial
• Shank Type: Straight
• Shank Size: zero point zero five five inches diameter by one inch length
• Point Angle: 135 degrees
• Cutting Direction: Right Hand
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
• Finish: Straw
• Type: Heavy Duty
• Drill Size - Wire: #54
• Drill Size - Decimal Inch: zero point zero five five inches
• Cutting Edge Material: M42 HSS-Co 8
