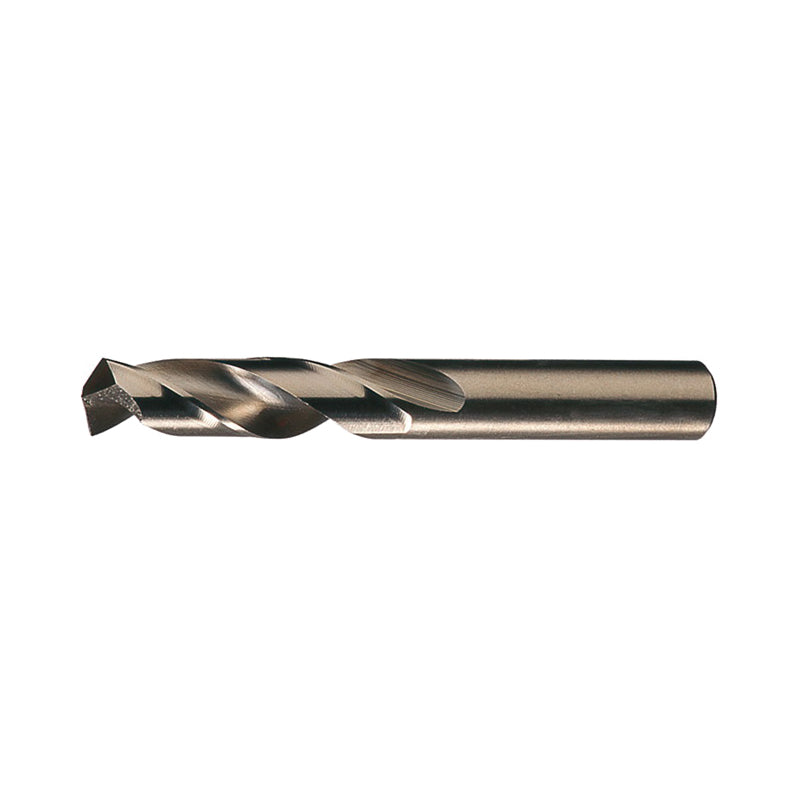

Chicago-Latrobe GREIN-50905CL 50905 559 Heavy Duty Screw Machine Drill, #50 Drill - Wire - 0.07 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-50905CL is a heavy-duty screw machine drill designed for precision and durability. This drill features a #50 wire size with a decimal inch diameter of zero point zero seven. The overall length measures one and eleven sixteenths inches and achieves a cutting depth of three times the diameter.

• Drill material is M42 HSS-Co 8 for superior cutting
• Right spiral flute design enhances chip removal
• Split point for easier penetration and reduced thrust

Product Highlights

This drill is suitable for drilling tougher materials such as alloy steel, carbon steel, cast iron, and tool steel.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50905CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Drill Diameter Measurement System: Imperial
• Flute Length: 11/16 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 1-11/16 in
• Point Angle: 135 deg
• Point Type: Split
• Series: 559
• Shank Size: 0.07 in Dia x 1 in L
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #50
• Drill Size - Decimal Inch: 0.07 in
• Material: M42 HSS-Co 8
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
