Chicago-Latrobe GREIN-50889CL 50889 559 Heavy Duty Screw Machine Drill #34 Drill - Wire 0.111 in Drill - Decimal Inch

Product Description

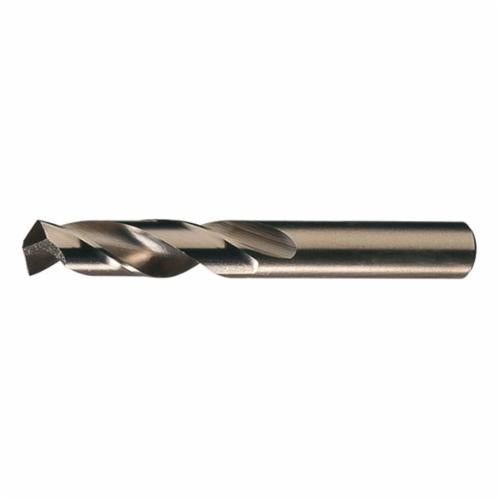

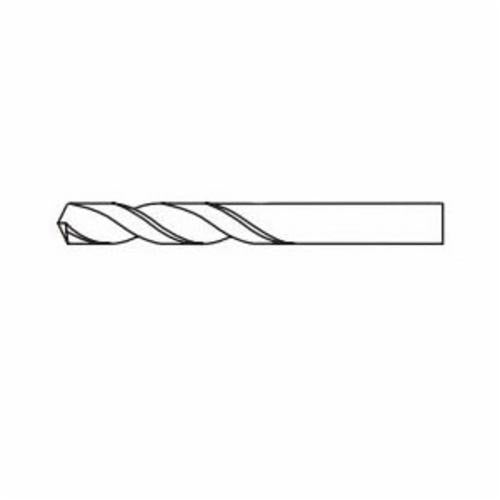

The Chicago-Latrobe GREIN-50889CL Heavy Duty Screw Machine Drill is engineered for efficient drilling in tougher materials. This drill features a #34 wire size and measures zero point one one one inches in diameter. The drill is designed with a straight shank and a 135-degree split point for enhanced penetration and reduced thrust.

• Heavy duty construction for drilling through tough materials
• Shorter flute length for increased rigidity
• Self-centering split point design for ease of use

Product Highlights

Designed for superior performance in tough materials, suitable for both hand and machine use.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50889CL

Technical Specifications

• Cutting Depth: 3XD
• Overall Length: 1-7/8 inches
• Drill Size - Wire: #34
• Drill Diameter Measurement System: Imperial
• Material: M42 HSS-Co 8
• Flute Type: Right Spiral
• Point Type: Split
• Point Angle: 135 degrees
• Flute Length: 7/8 inches
• Shank Size: 0.111 inches diameter x 1 inch length
• Cutting Direction: Right Hand
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
