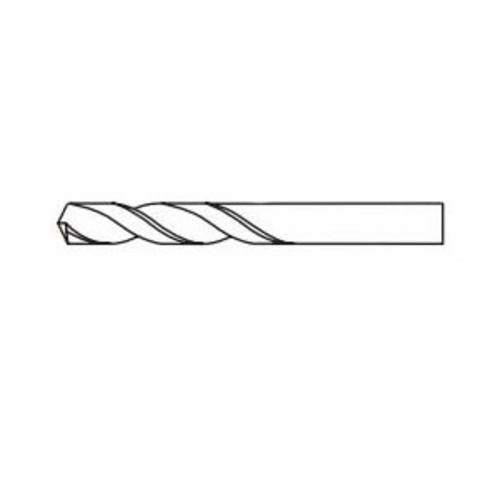

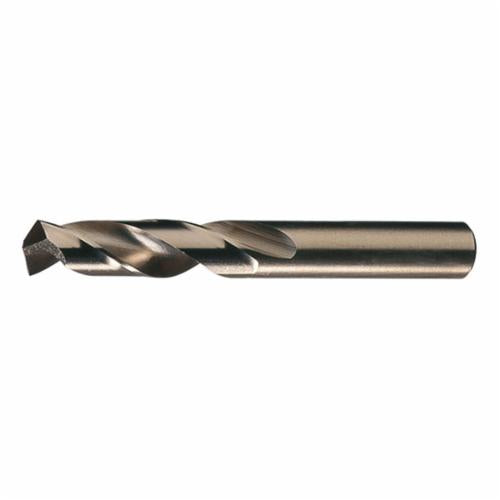

Chicago-Latrobe GREIN-50882CL 50882 559 Heavy Duty Screw Machine Drill - #27 Drill - Wire - 0.144 in Drill - Decimal Inch - M42 HSS-Co 8

Product Description

The Chicago-Latrobe GREIN-50882CL is a heavy-duty screw machine drill designed for high performance. This drill is suitable for a range of applications, especially in tougher materials. It has a drill size of #27 and a diameter of 0.144 inches.

• Heavy duty geometry for challenging materials
• Short flute length for better rigidity
• Self-centering split point design

Product Highlights

This drill is effective for drilling by hand or machine and works well in various material types including alloy steel and cast iron.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50882CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Drill Diameter Measurement System: Imperial
• Flute Length: 1 inch
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-1/16 inches
• Point Angle: 135 degrees
• Point Type: Split
• Series: 559
• Shank Size: 0.144 inches diameter x 1.0625 inches in length
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #27
• Drill Size - Decimal Inch: 0.144 inches
• Material: M42 HSS-Co 8
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
