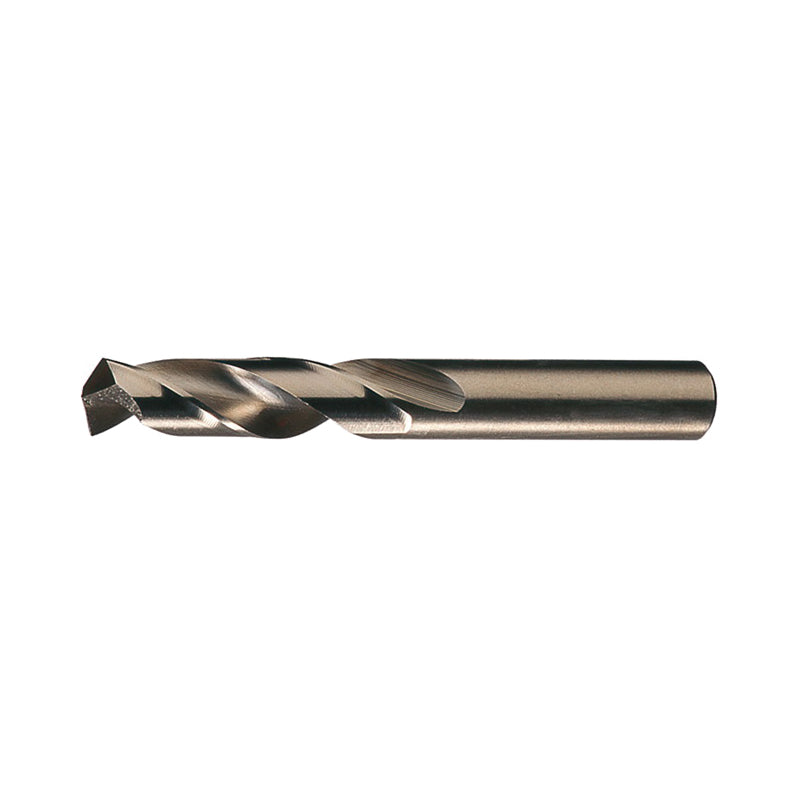

Chicago-Latrobe GREIN-50881CL 50881 559 Heavy Duty Screw Machine Drill #26 Drill - Wire 0.147 in Drill - Decimal Inch

Product Description

Chicago-Latrobe Screw Machine Drill, MPN GREIN-50881CL, is a heavy-duty drill designed for precision and durability. It features a #26 drill size and a decimal inch measurement of 0.147 inches. The drill has an overall length of two and one-sixteenth inches and is crafted from M42 HSS-Co 8 material, ensuring high performance.

• Heavy duty geometry for tough materials
• Self-centering P3 split point for easier penetration
• Suitable for various materials including alloy steel and cast iron

Product Highlights

Ideal for drilling applications in construction and metalworking.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50881CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Drill Diameter Measurement System: Imperial
• Flute Length: 1 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-1/16 in
• Point Angle: 135 deg
• Point Type: Split
• Series: 559
• Shank Size: 0.147 in Dia x 1.0625 in L
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #26
• Drill Size - Decimal Inch: 0.147 in
• Material: M42 HSS-Co 8
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
