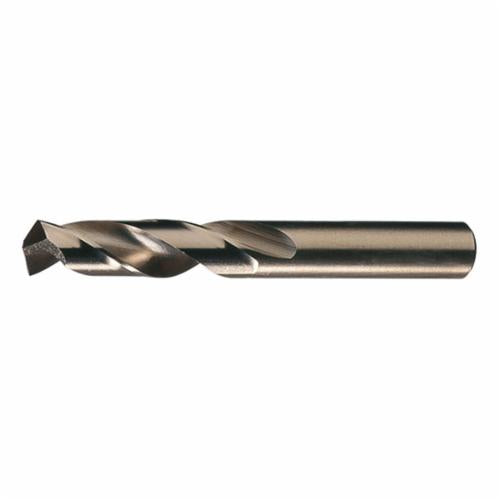

Chicago-Latrobe GREIN-50879CL 50879 559 Heavy Duty Screw Machine Drill #24 Drill - Wire 0.152 in Drill - Decimal Inch

Product Description

Chicago-Latrobe GREIN-50879CL is a heavy duty screw machine drill designed for precision. This tool features a #24 drill size, which has a decimal measurement of zero point one five two inches, making it suitable for various drilling tasks. With an overall length of two and one-sixteenth inches and a cutting depth of three times the diameter, this drill is ideal for projects requiring durability and efficiency.

• Right hand cutting direction with a split point design
• M42 HSS-Co 8 material for enhanced strength
• Short flute length for reduced deflection during heavy feed rates

Product Highlights

Designed for drilling tougher materials, this drill bit is effective for both hand and machine operations.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50879CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Flute Length: 1 inch
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-1/16 inches
• Point Angle: 135 degrees
• Point Type: Split
• Drill Size - Wire: #24
• Drill Size - Decimal Inch: 0.152 inches
• Drill Diameter Measurement System: Imperial
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
• Finish: Straw
