Chicago-Latrobe GREIN-50878CL Screw Machine Drill Heavy Duty 0.154 in

Product Description

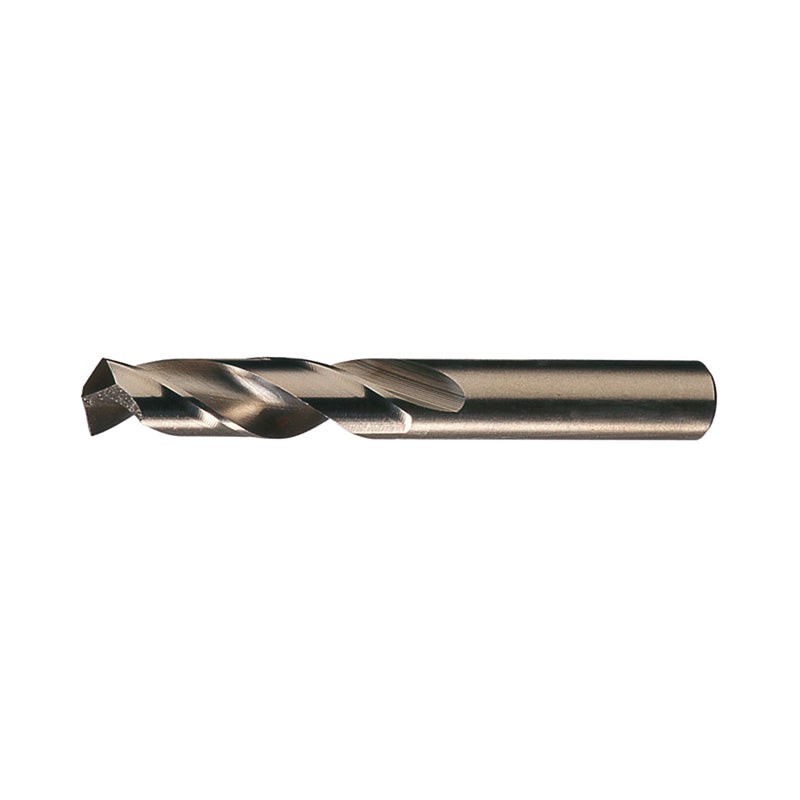

Chicago-Latrobe GREIN-50878CL Screw Machine Drill is designed for heavy-duty applications. It features a #23 wire drill size and has a decimal inch measurement of 0.154 inches. The overall length is two and one-sixteenth inches with a three-times diameter cutting depth for optimal performance.

• Heavy duty geometry for increased durability.
• Shorter flute length enhances rigidity and reduces deflection.
• P3 split point for easy penetration and reduced thrust.

Product Highlights

This screw machine drill is made with M42 HSS-Co 8 cutting edge material. It is suitable for various materials, including alloy steel, carbon steel, cast iron, and tool steel. The drill features right-hand cutting direction and a straight shank type.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-50878CL

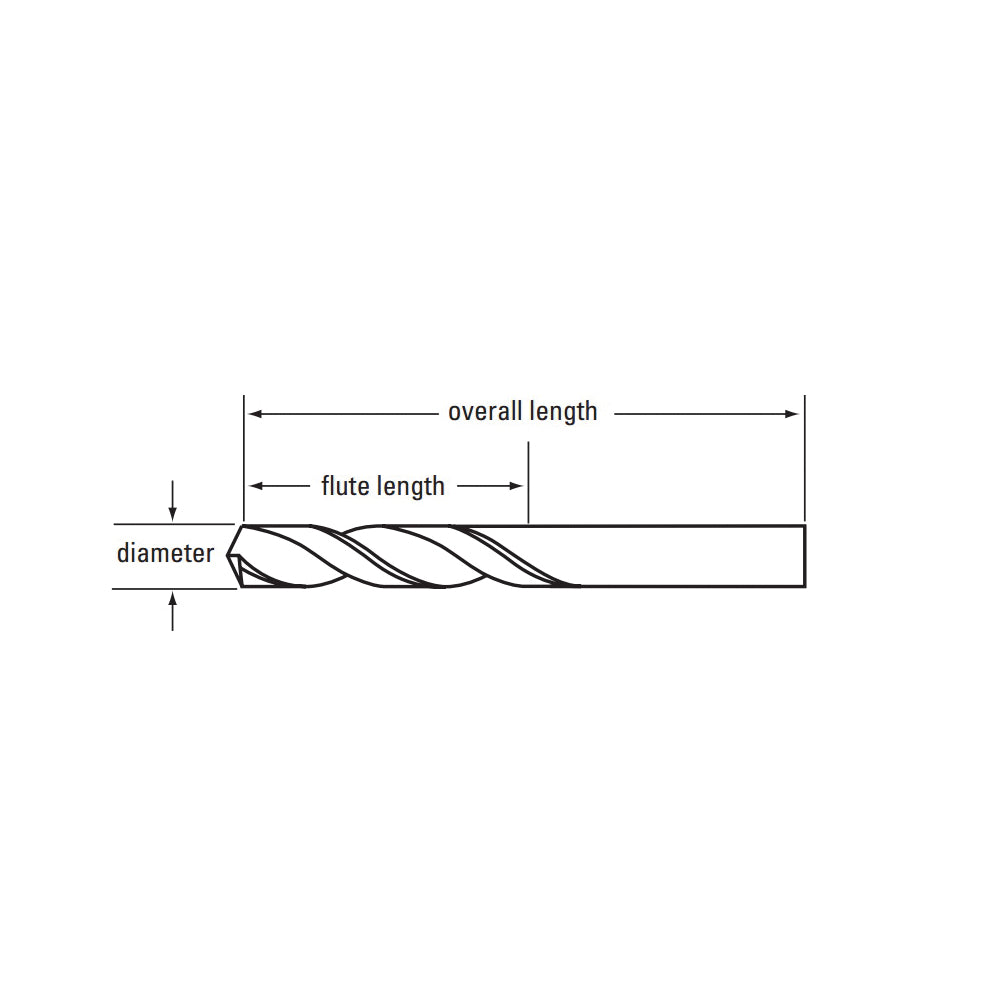

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: M42 HSS-Co 8
• Drill Diameter Measurement System: Imperial
• Flute Length: 1 inch
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2-1/16 inches
• Point Angle: 135 degrees
• Point Type: Split
• Series: 559
• Shank Size: 0.154 inches diameter x 1.0625 inches length
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #23
• Drill Size - Decimal Inch: 0.154 inches
• Material: M42 HSS-Co 8
• Finish: Straw
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
